BALLGATE:

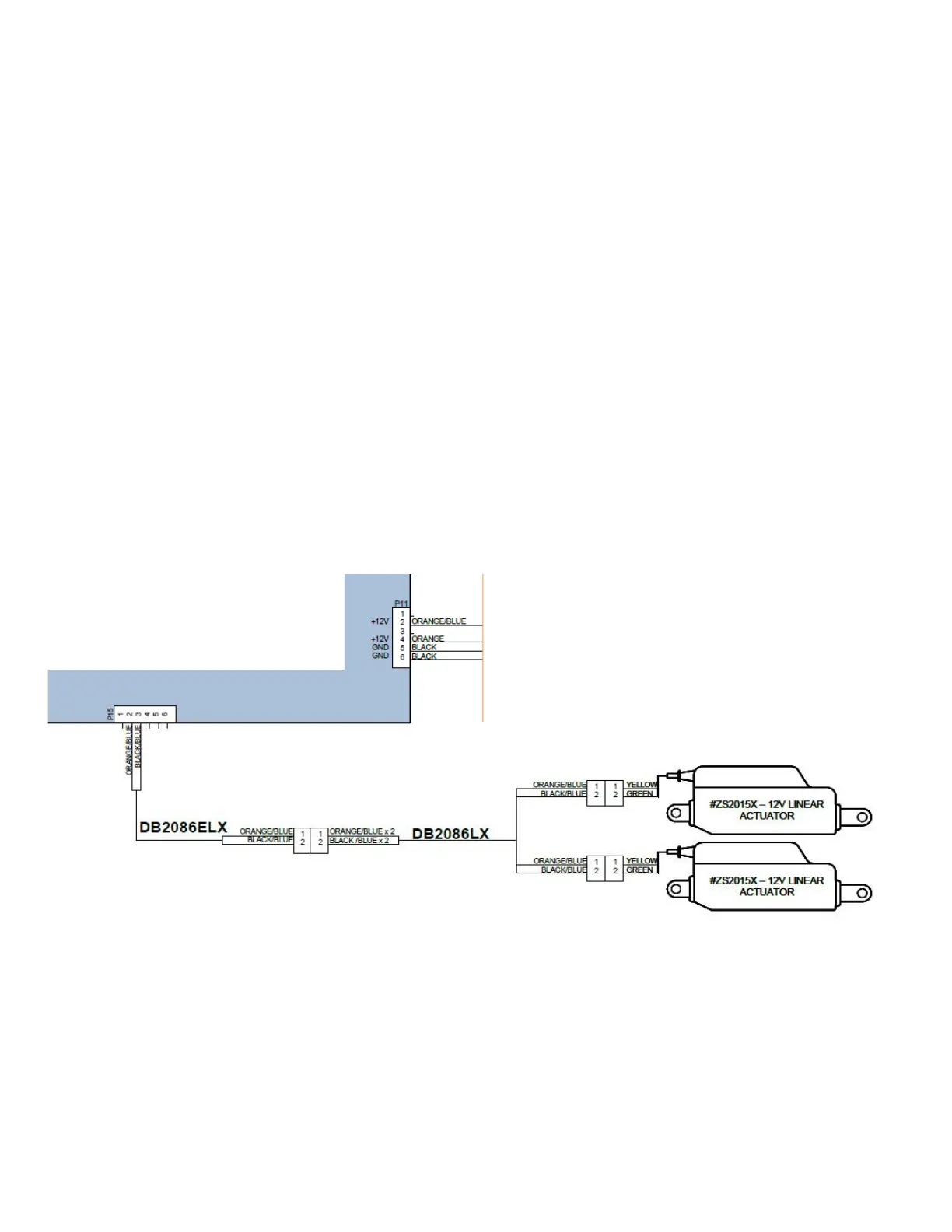

How to measure the voltage at connector P15 when testing your actuators. Do not measure
between the black/blue and orange/blue on P15, you will never see the12VDC.
Use pin 5 or 6 on P11 (where the black wires go to).
Your should see the following:
● When the ball gate is up even in attract if you put the red meter lead in the black/blue on
P15 there should be +12VDC.
● In game play when the ball gate is up, he should see +12V if you move the red meter lead
on the orange/blue at p15.
● If you see +12V when you do both of these things, then the board is working properly.
● It may not be exactly 12V. If it is 11.5 or so, then it is good. If not,
there some sort of voltage drop.
WH2134DBX
Main board
