DB2033X - TARGET BOARDS

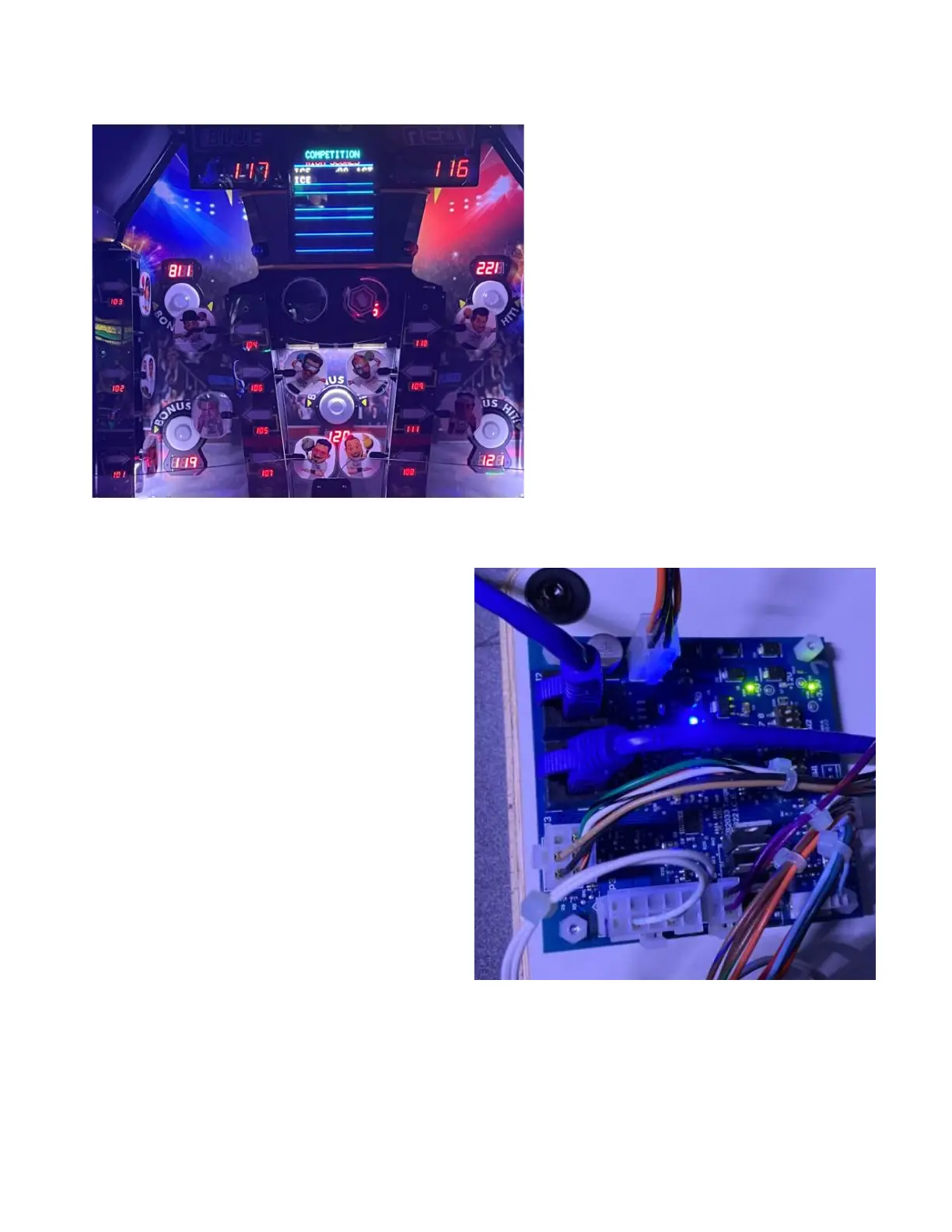

On power up each target board
will first display the version
number of the firmware. It then
will identify their location ID.
Any board that is showing
“888” has failed and should be
replaced.
Trouble Shooting Tips
DB2033X
Both RJ45 Ports are identical. Either
can be used for in or out
communications. A coupler could be
used to diagnose network issues if
needed to eliminate the target board
completely in the chain. The
communication break should be
between the last seen board shown
in yellow or green and the next
shown in red when in diagnostic
mode. There is an extra 20’ Cat 5
cable included for finding com errors.
