Icegame ROUND-UP - Page 18

18
D C
B A
4321
D C
B A
4321
DATE
7/9/01
DESCRIPTION

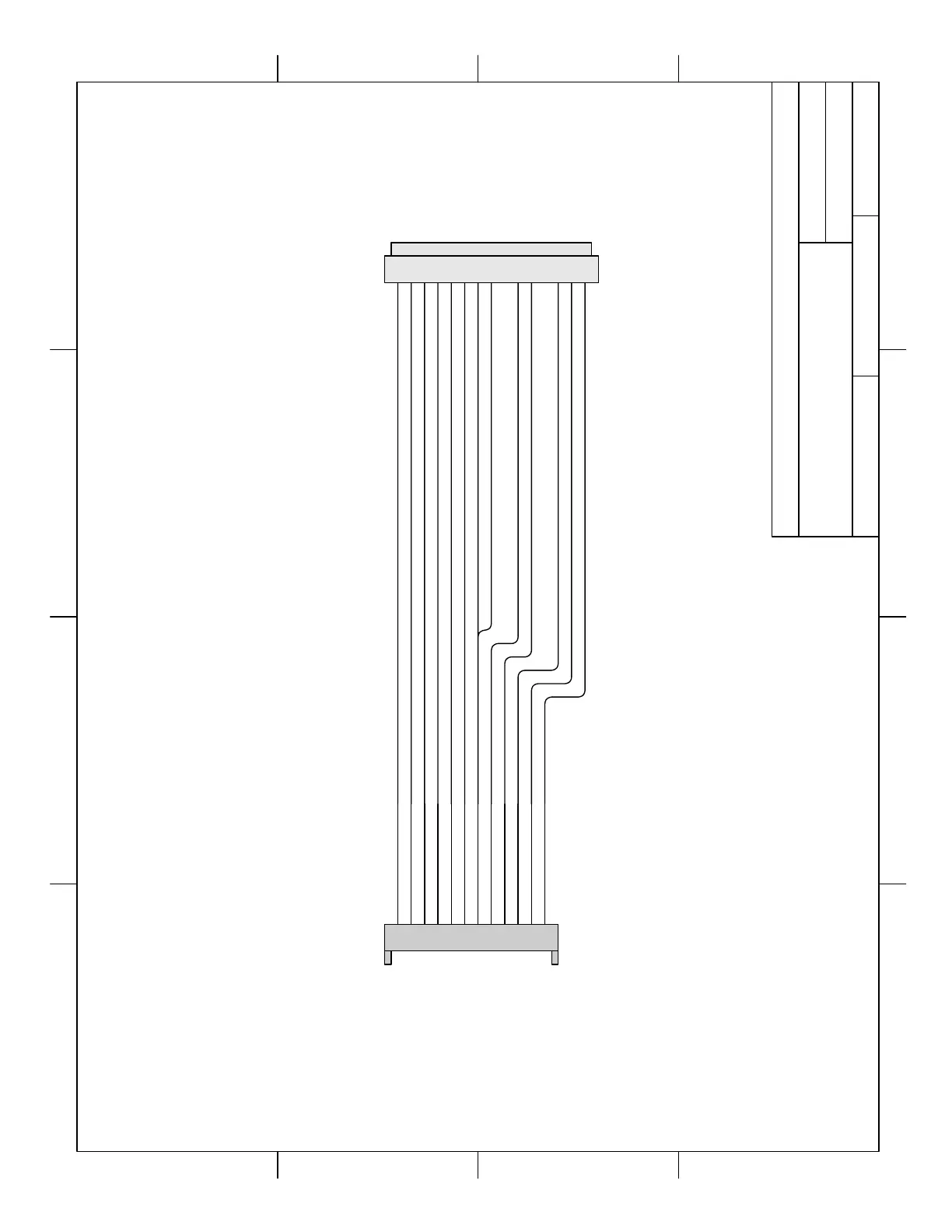

#RC2052AX - ROTARY HARNESS
DRAWN BY
MMARTIN
FILENAME
RC.VSD
PAGE
3 OF 21
REVISED
3/15/02
TITLE
ROUND CRANE
12 PIN CAP #2105 FEMALE PIN #2102 PIN 7: #2103 14 AWG FEMALE
1 2 3 4 5 6 7 8 9
10 11 12
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
15 PIN PLUG #2144 SPLIT PIN #2100
To Wagon Harness
36 "
BLACK BLACK BLACK BLACK BLACK BLACK BLACK *2 BLACK BLACK BLACK BLACK GREEN/YELLOW
Motor Up
Motor Down
Home L/R
Claw Up
Claw Down
Claw -
Ground
Motor Bk
Home F/B
Motor Fd
Claw +
EARTH
Motor Up Motor Down Home L/R Claw Up Claw Down Claw - Ground Ground Motor Bk Home F/B Motor Fd Claw + EARTH
BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
GREEN/YELLOW
To Main To Rotary Harness
NOT TWISTED
