HOW TO ASSEMBLE THE
INDOOR CYCLE
3 & 6MM

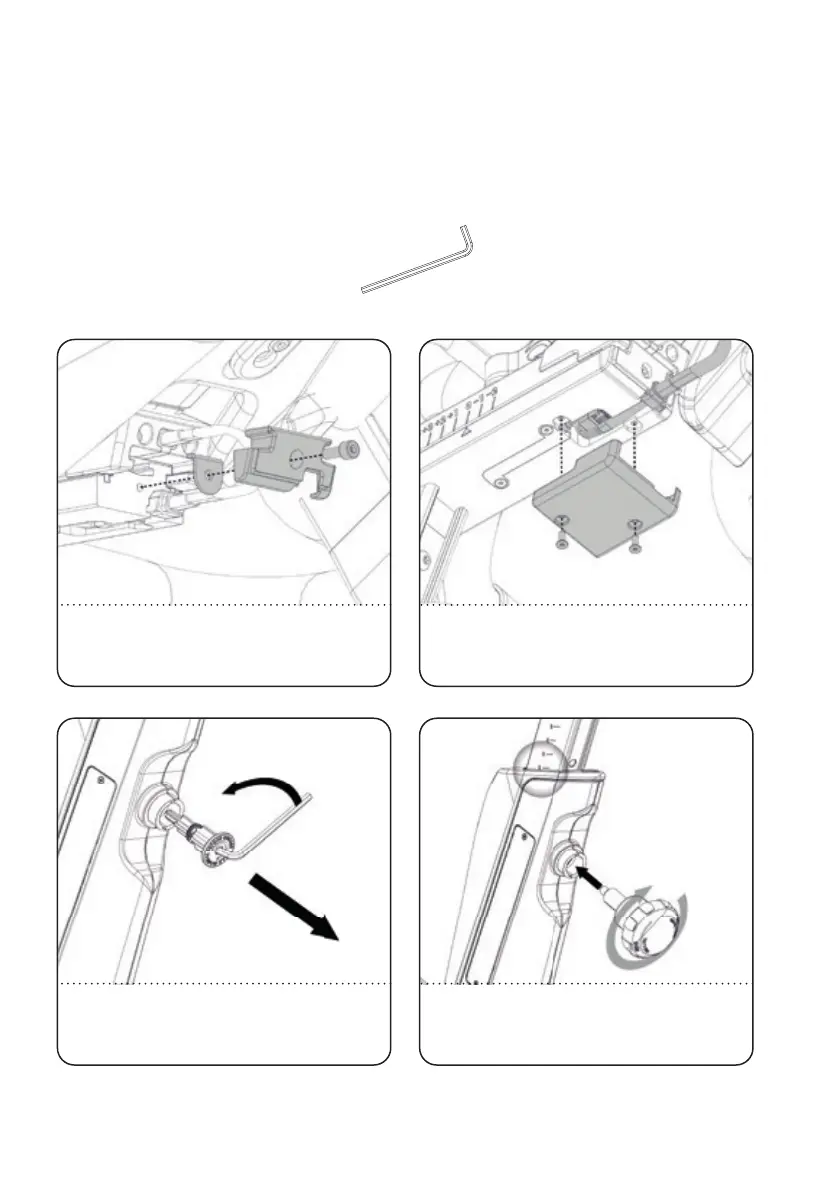

MOUNT THE METAL LIMIT STOP (FIG. A) AND THE
PLASTIC CAP (FIG. B) WITH A 3 MM HEX KEY.
7.
PLUG IN BOTH CABLES. POSITION THE CABLE
INTO THE SLOT (FIG. A). FOLD THE CABLES SO
THEY FIT INTO POSITION (FIG. B). MOUNT THE
COVER WITH A 3MM HEX KEY (FIG. C).
8.
A
AB
C
B
LOOSEN THE SAFETY PIN AND REMOVE
IT USING A 6 MM HEX KEY.
9.
LIFT THE HANDLEBAR TO POSITION 6 AND
SCREW THE POP PIN KNOB COMPLETELY INTO
THE FRAME TO LOCK THE HANDLEBAR STEM.
