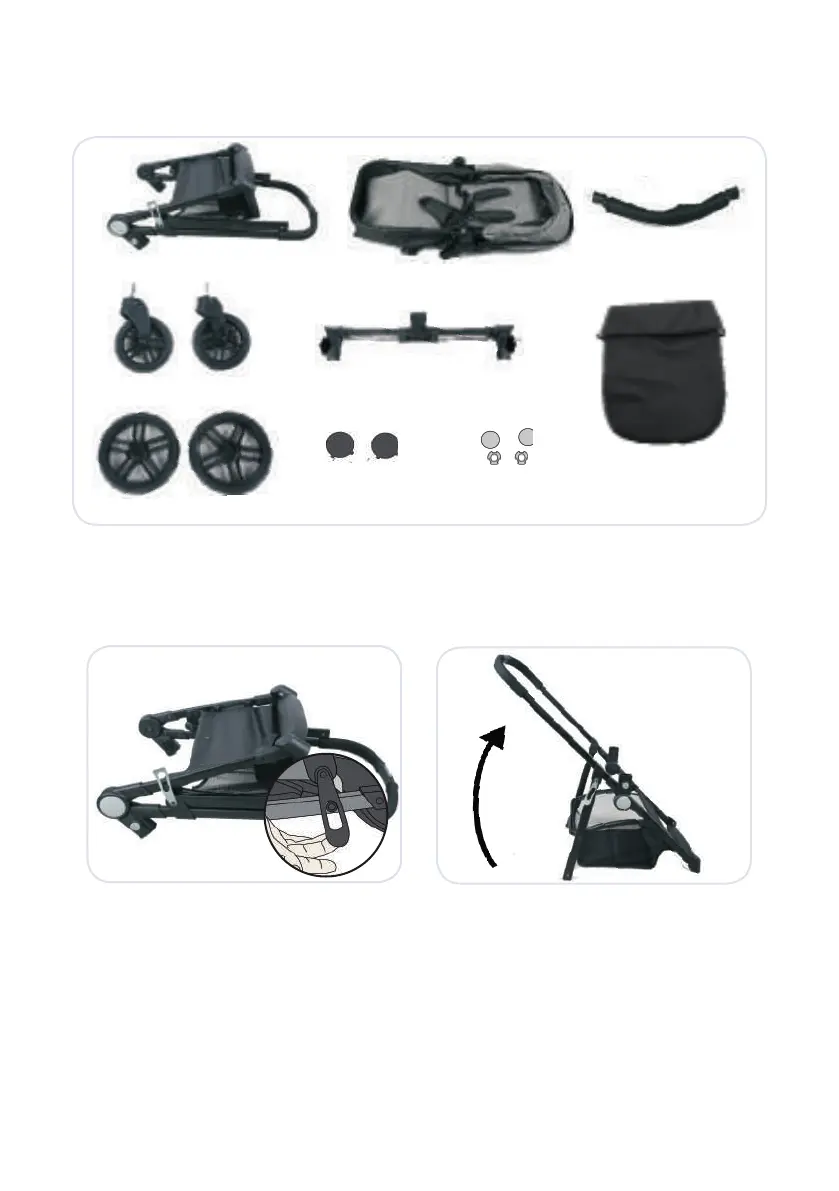

Assembly - Parts
04
1. Chassis Frame
2. Seat Unit/Carrycot
3. Bumper Bar
4. Front Wheels
5. Rear Wheels
6. Rear Wheel Axle
& Break
9. Footmu
7. Rear Wheel
Hub Caps
8. Rear Wheel
Locking Caps
Assembly - Opening the Frame
1. Unhook the latch, located on
the right hand side of the frame
2. Lift the handlebar in the
direction of the arrow until the
frame locks into place.
