ART. S001-S002-S003-S004 SOLAR MODULE

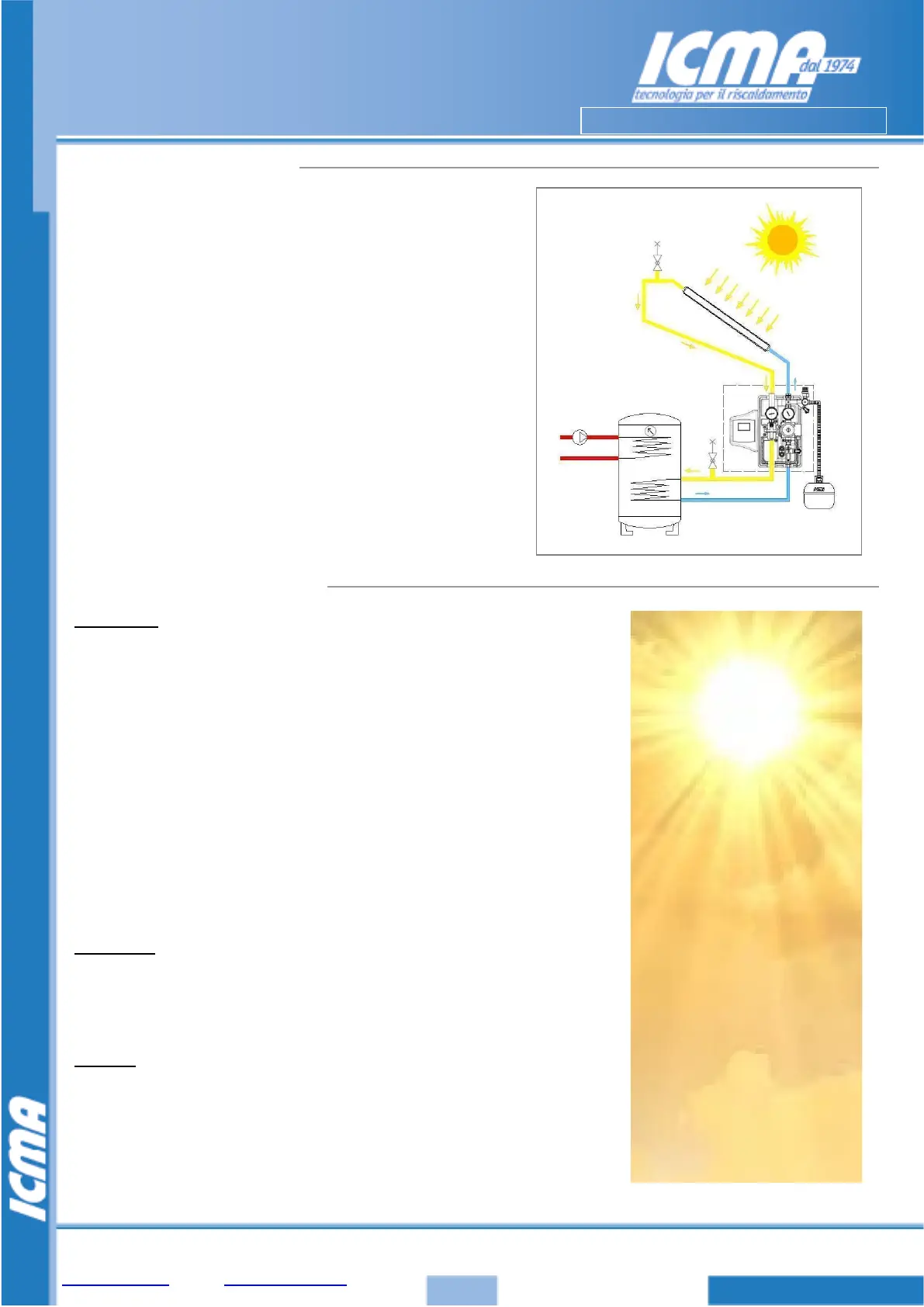

PRINCIPLE OF OPERATION
ICMA solar modules art. S001-S002-S003-S004, as already
written above, are employed in the primary circuits of solar
systems to manage the thermodynamic cycle of the heat-transfer
fluid between the solar panels and the hot water storage tank.
In thermal solar panels the solar radiation increases the heat-
transfer fluid temperature and therefore its thermal power.
In the storage tank, instead, the heat-transfer fluid carries through a
heat exchanger most of its heat to the water in the tank.
The hot water in the tank will be then used for space heating or
domestic use.
The solar modules manage this process and are equipped with a
circulator pump having proper performances (flow and head) as
well as several regulation and control devices that run the operation
of the circuit.
TECHNICAL SPECIFICATIONS
Performance
Fluids used: Water and glycol solutions
Maximum percentage of glycol: 50%
Maximum operating pressure: 10 bar
Calibration of safety valve: 6 bar
Permitted temperature range: -10 °C / +160°C
Max ambient temperature: +40°C
Safety valve temperature range: -30÷160°C
Minimum pressure on intake
opening with temperatures of: +50 °C : 0,05 bar
+95 °C : 0.3 bar
+110 °C : 1 bar
Opening check valves
minimum pressure: Δp: 2Kpa (200 mm c.a.)
Manometer scale: 0÷10 bar
Thermometers scale: 0÷160 °C
Circulators: See specifications pag.7/11
Connections
System connections: G3/4” M
Safety valve connections : G1/2" F
Connection with expansion tank: G3/4” M
Filling/emptying connections with hose: Ø13 mm
Materials
Brass components: Brass CW617N - EN 12165
Seals: PTFE
Sealing elements: EPDM Perox
Flat seals: Betaflex
Insulation shell: PPE
Conductivity of isulation shell λ(ΔT): 0.041 (W/mK)
