Icom IC-F111 Instruction Manual

13
4
CONNECTION AND MAINTENANCE
Optional cable
(OPC-617)
Antenna
NEVER connect to
a 24 V battery.
+
red:
black:
12V
Battery
Solder
Crimp
NOTE: Use the terminals as
shown below for the cable
connections.
R CAUTION! NEVER re-
move the fuse-holder from
the DC power cable.
e
r
t
w
To the antenna
connector
q
Optional speaker
(SP-22)

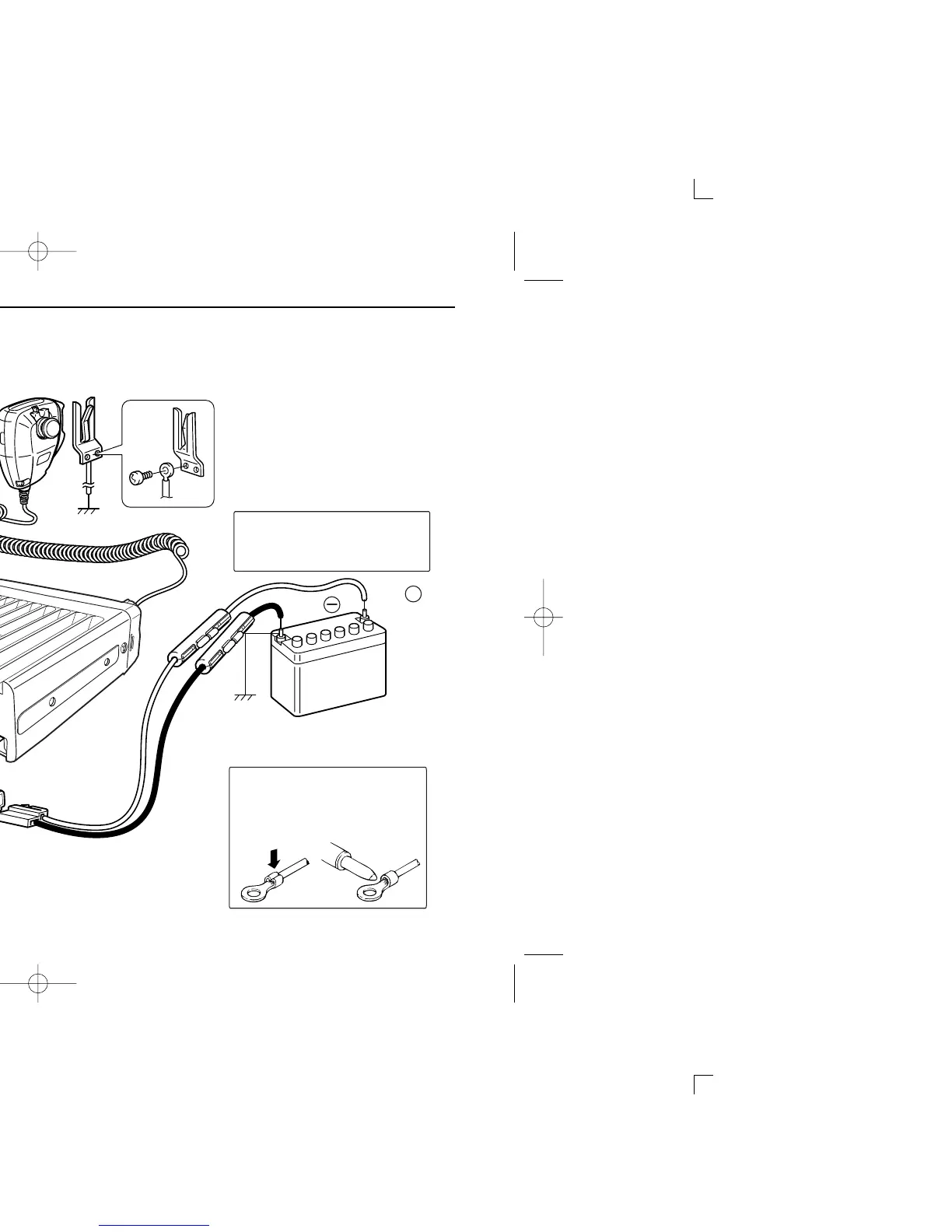

■ Rear panel and connection
