• Frequency range :
IC-F15/IC-F15S 136–174MHz
IC-F25/IC-F25S 400–470MHz
•Number of channels : 16
(IC-F15, IC-F25)
4
(Max., IC-F15S, IC-F25S)
• Channel spacing : 12.5kHz/20kHz/25kHz
• PLL channel step : 2.5kHz, 3.125kHz
(VHF)
5kHz, 6.25kHz
(UHF)
•
Power supply requirement
: 7.2V DC
•Current drain
(at 7.2V DC; approx.)
:
Transmit VHF (5W) 1.5A
UHF
(4W)
1.6A
Receive stand-by 70mA
rated output 300mA
• Antenna impedance : 50Ω
•
Usable temperature range
: –25˚C to +55˚C
• Dimensions
(with BP-231)
: 53
(W)
×120
(H)
×38
(D)
mm
(projections are not included)
•
Weight
(approx. with BP-231)
: 260g
• Output power : 5W (VHF), 4W (UHF)
• Max. frequency deviation : ±5kHz
(Wide)
±4kHz
(Middle)
±2.5kHz
(Narrow)
• Frequency error : ±2.5ppm
• Spurious emissions : 0.25µW
(below 1GHz)
1.0µW
(above 1GHz)
• Adjacent channel power :
VHF 80/80/70dB
typ. (Wide/middle/narrow)
UHF 75/73/68dB typ. (Wide/middle/narrow)
• Residual modulation : 55dB
typ. (Wide)
(With CCITT filter) 53dB
typ. (Middle)
50dB
typ. (Narrow)
• Audio harmonic distortion : 3%
typ. (AF 1kHz, 40% deviation)
• Modulation limiting : 60–100% of max. deviation
• External microphone connector :
3-conductor 2.5
(d)
mm /2.2kΩ
• Sensitivity : –4dBµV
typ. (emf, at 20dB SINAD)
• Squelch sensitivity : –4dBµV typ.
(emf, at threshold)
•
Adjacent channel selectivity
:
VHF 75dB
typ. (Wide, middle)
65dB
typ. (Narrow)
UHF 75/73/65dB
typ. (Wide, middle, narrow)
• Spurious response : 70dB
•Intermodulation : 67dB
typ.
• Hum and noise ratio : 55dB
typ. (Wide)
(with CCITT FILTER)
53dB
typ. (Middle)
50dB typ. (Narrow)
• Audio output power : 500mW
typ.
(at 5% distortion with an 8Ω load)
•
External speaker connector
: 2-conductor 3.5
(d)
mm/8Ω

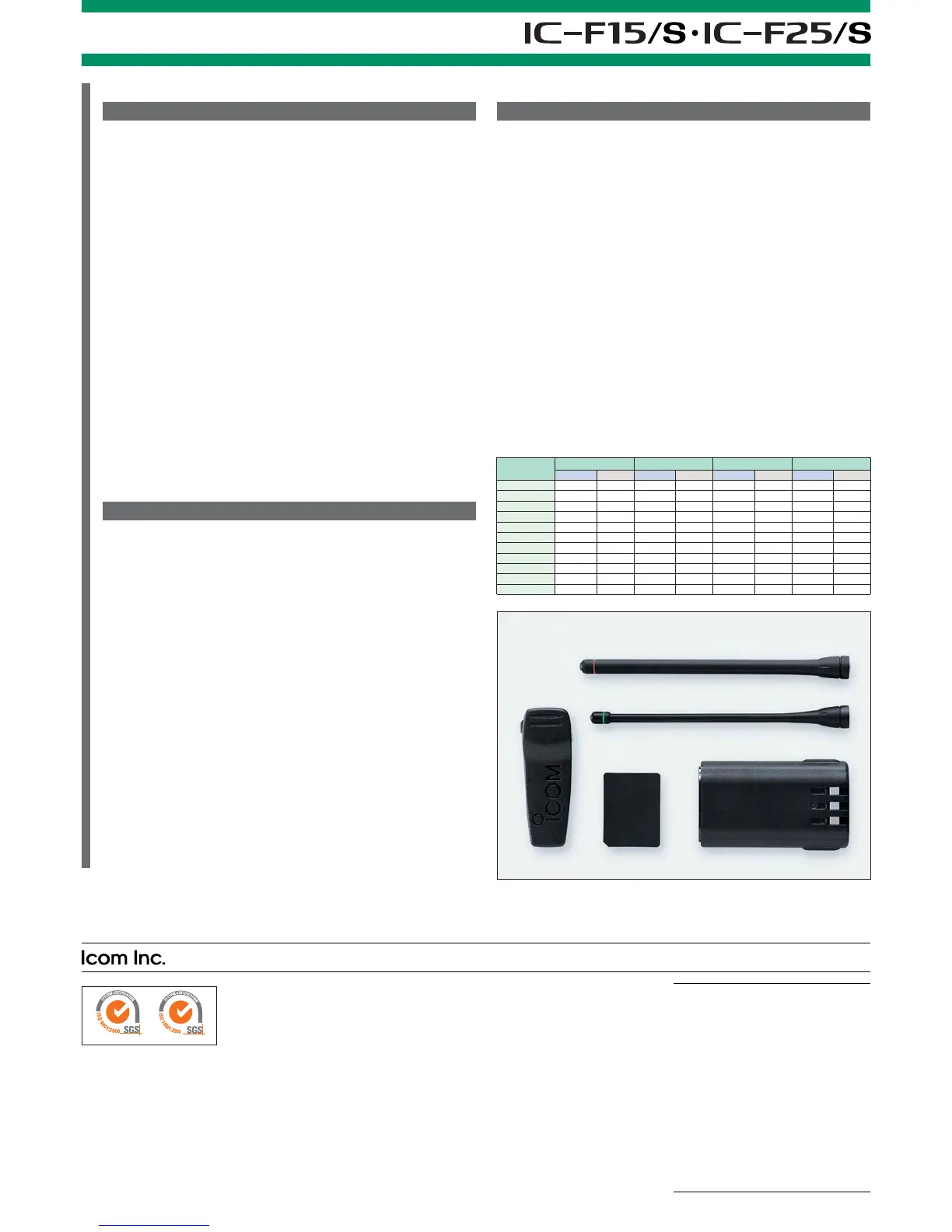

VHF AND UHF TRANSCEIVERS
SPECIFICATIONS
GENERAL
TRANSMITTER
RECEIVER
Measurements made in accordance with EN 300-086.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the
following MIL-STD requirements and strict environmental standards.
Standard
MIL 810C MIL 810D MIL 810E MIL 810F
Method Proc. Method Proc. Method Proc. Method Proc.
Low Pressure
500.1 I 500.2 I, II 500.3 I, II 500.4 I, II
High Temp. 501.1 I 501.2 I, II 501.3 I, II 501.4 I, II
Low Temp. 502.1 I 502.2 I, II 502.3 I, II 502.4-3 I, II
Temp. Shock 503.1 I 503.2 I 503.3 I 503.4 I
Solar Radiation
505.1 I 505.2 I 505.3 I 505.4 I
Rain Blowing/Drip
506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III
Humidity 507.1 I, II 507.2 II, III 507.3 II, III 507.4 –
Salt Fog 509.1 I 509.2 I 509.3 I 509.4 –
Dust Blowing 510.1 I 510.2 I 510.3 I 510.4 I
Vibration 514.2 VIII, X 514.3 I 514.4 I 514.5 I
Shock 516.2 I, II, V 516.3 I, IV 516.4 I, IV 516.5 I, IV
SUPPLIED ACCESSORIES
(May differ according to version)
• Battery pack, BP-231• Unit cover
• Belt clip, MB-94
• UHF Antenna
• VHF Antenna
