5 - 2
r
t
y
e
u
q
w
i
!0
!2
!5
!6
!7
o
!8
!9
@1
@0
@2
@3
!1
!3
!4
q: Reloads adjustment data
w: Transceiver's connection state
e: Connected DC voltage measurement
r: PLL lock voltage measurement
t: RF output power
y: FM modulation balance
u: FM modulation preset
i: CTCSS/DTCS deviation
o: Squelch level
!0: Reference frequency
!1: Receive sensitivity (automatic)
!2: Receive sensitivity (manual)
!3: PLL lock voltage preset for RX (automatic)
!4: PLL lock voltage preset for TX (automatic)
!5: S-meter (FM)
!6: S-meter (digital)
!7: Deviation (narrow)
!8: Deviation (wide)
!9: Deviation (digital)
@0: DSP reference frequency
@1: Base band center voltage
@2: Digital mode
@3: 2/5 TONE, DTMF deviation
NOTE: The above values for settings are example only.
Each transceiver has its own specific values for each setting.

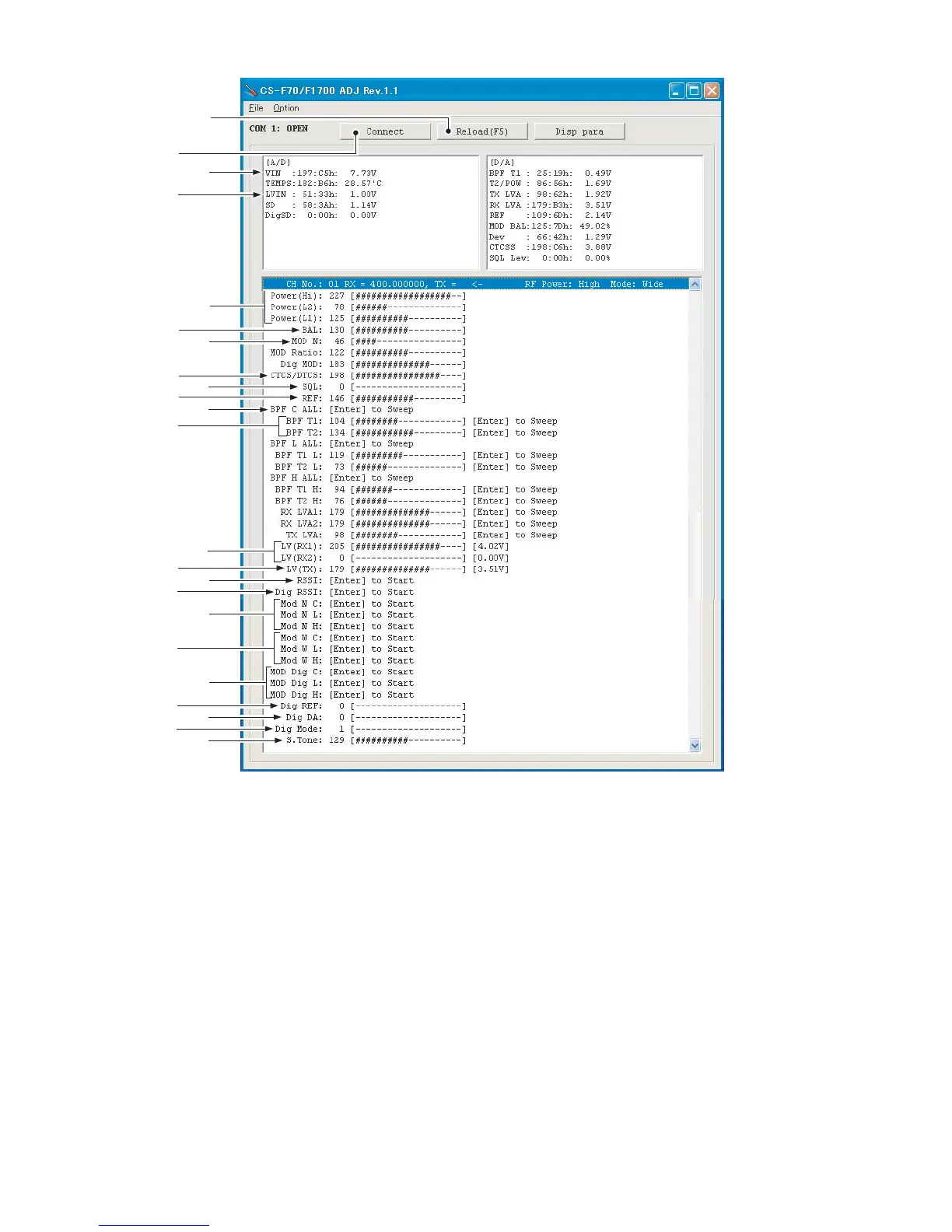

• CS-F70/F1700 ADJ'S SCREEN EXAMPLE
