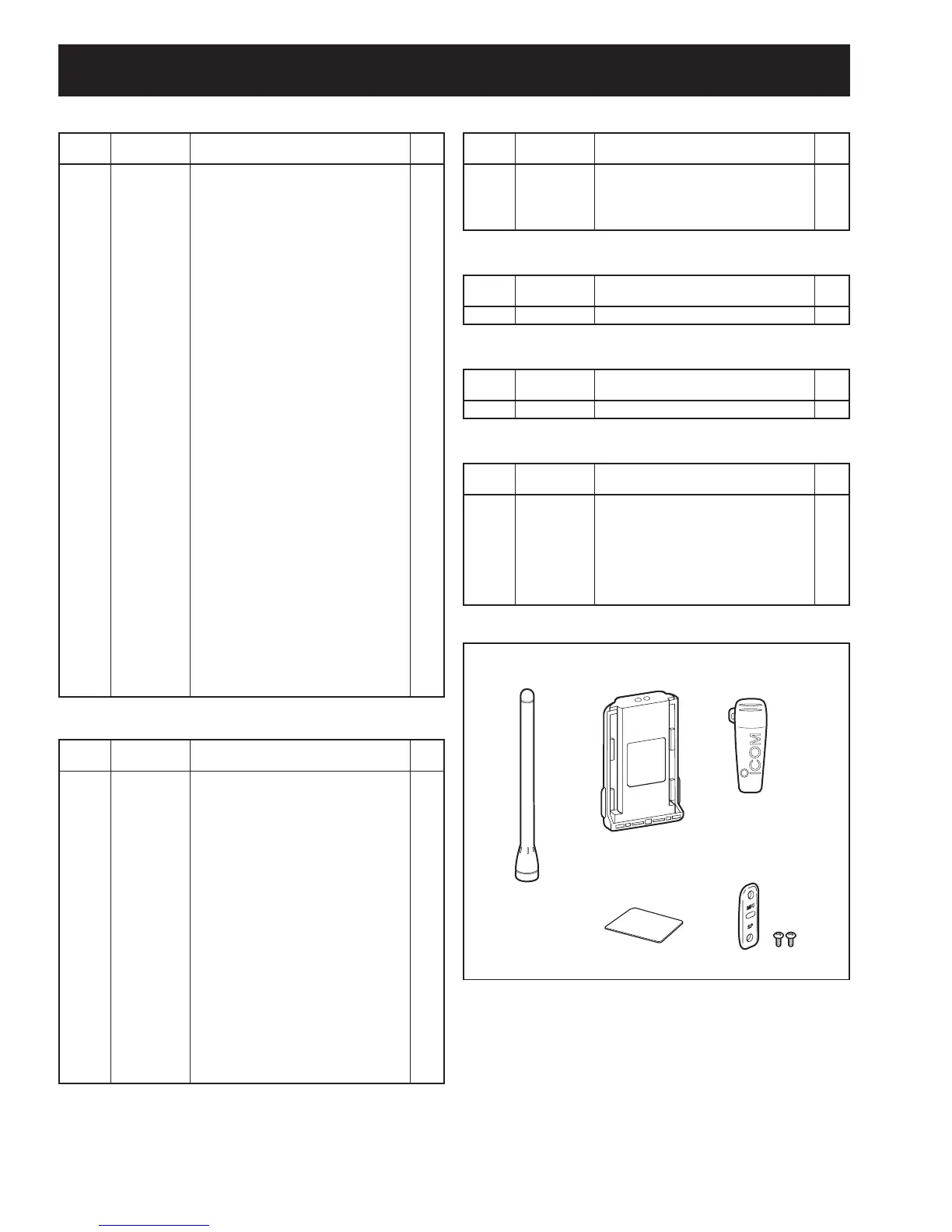

SECTION 8 MECHANICAL PARTS AND DISASSEMBLY
8 - 1
Screw abbreviations
BT: Self-tapping PH: Pan head
ZK, ZK3: Black FH: Flat head
NI: Nickel SUS: Stainless
EP1 EP2 MP1
MP2
MP3
MP4
J1 6910015910 Connector ANT connector-104 1
J2 6910015860 Connector IMSA-6277S-02A-G 1
SP1 2510001060 Speaker K036NA500-47 1
W1 8900009640 Cable OPC-963 1
MP1 8010020410 2927 chassis 1
MP2 8210022970 2927 T-front panel assembly [10-key] 1
8210022980 2927 S-front panel assembly [4-key] 1
MP8 8210020550 2721 rear panel 1
MP9 8310066450 2927 window plate 1
MP10 8930069510 2927 window sheet 1
MP12 8930069490 2927 keyboard [10-key] 1
8930069700 2927 4-key [4-key] 1
MP13 8930069500 2927 main seal 1
MP14 8930063060 2721 T-rubber 1
MP16 8930069460 2927 side plate 1
MP17 8930069470 2927 top plate 1
MP20 8930061880 2721 MIC sponge 1
MP21 8930059360 2600 release button 1
MP22 8930070360 2775 release plate (A) 1
MP24 8610012970 Knob N350 1
MP25 8830002900 2927 ANT nut 1
MP26 8810009561 Screw PH BT M2 × 6 NI-ZK3 2
MP27 8810009221
Screw PH BT M2 × 8 NI-ZK3 2
MP28 8810008641
Screw FH BT M2 × 4 NI-ZC3 11
MP31 8810010430 Screw trass M3 × 5 SUS SSBC 1
MP32 8310066810 2927 option plate 1
MP33 8930046020 1123 sheet (A)-1 1
MP34 8930056540 Push spring (AH) 2
MP35 8830001700 VR nut (Q) 1
MP36 8930048870 2056 A-sponge 1
MP37 8930070010 2893 VOL rubber 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[CHASSIS PARTS]
J2 6450002250 Connector HSJ1456-010320 1
J3 6450000131 Connector HSJ1102-018540 1
R315 7210003061
Variable resistor TP76N00N-15F-A103-2251A 1
DS3 5030002760 LCD L3-0200HAY-3 1
MC1 7700002480 Microphone SKB-2746 LPC 1
S2 2260002840 Switch SKHLLFA010 1
EP7 8930063020 LCD contact SRCN-2721-SP-N-W 2
MP1 8510016130 2721 VCO case 1
MP2 8510016120 2721 VCO cover 1
MP3 8930069480 2927 LCD holder 1
MP4 8210020570 2721 reflector 1
MP5 8930070080 White sheet (V) 1
MP6 8510017720 2927 main shield 1
MP9 8930070700 Insulation sheet (LQ) 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[MAIN UNIT]
J701 6910017680 Connector IMSA-9230B-1-04Z140-PT1 1
J702 6910017680 Connector IMSA-9230B-1-04Z140-PT1 1
MP701* 8410002530 2681 PA heatsink 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[PA UNIT]
MP801 8510017640 2927 ANT plate 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[ANT UNIT]
J901 6910015881 Connector 9230B-1-02Z141-PT1 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[CONNECT UNIT]
EP1 Optional product Antenna FA-SC55V-1 1
EP2
Optional product Battery pack BP-231 1
MP1
Optional product Belt clip MB-94 1
MP2 8310066810 2927 option plate 1
MP3 8210022780 2927 jack panel 1
MP4 8810004861 Screw PH M2 × 6 ZK3 2
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[ACCESSORIES]
*: Refer to SECTION 10 BOARD LAYOUTS.
