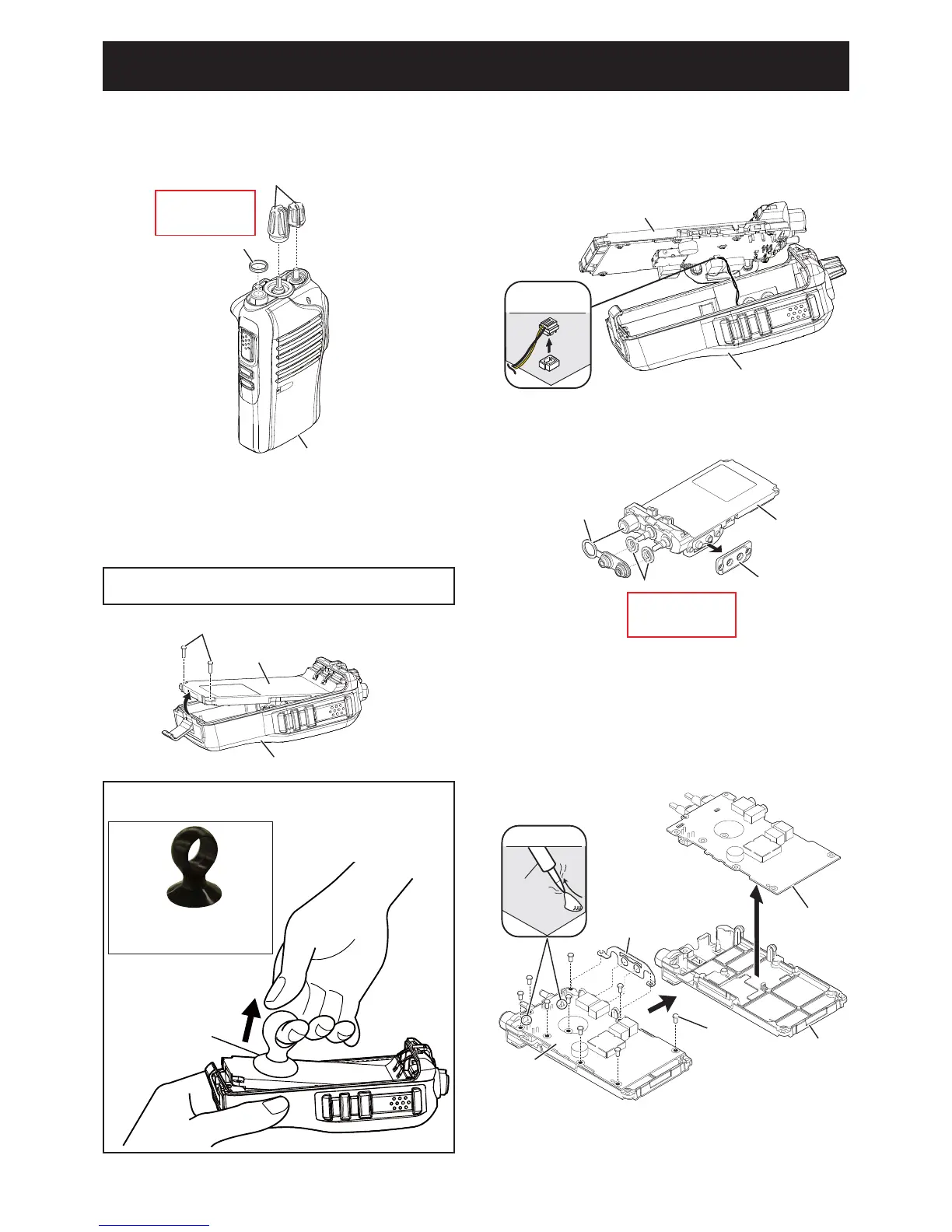

DISASSEMBLY INSTRUCTION
3 - 1
BE CAREFUL to not pull out the speaker wire when
separating the CHASSIS and the FRONT PANEL.
For easy separation of the CHASSIS
Use a suction lifter to lift the bottom of the CHASSIS up.
1. REMOVING THE CHASSIS
1) Remove the ANT connector nut and 2 knobs.
2. REMOVING THE MAIN UNIT
1) Remove the 9 screws and the side plate from the
MAIN UNIT.
2) Unsolder the 2 points shown, and then remove the
MAIN UNIT.
2) Remove 2 screws from the bottom of the CHASSIS.
3) Lift the bottom of the CHASSIS up in the direction
of the arrow.
4)
CAREFULLY lift the chassis out of the FRONT PANEL
and turn it over in order to unplug the speaker wire.
(Continued on the right above)
5) Remove the seals and nuts from the CHASSIS.
ANT CONNECTOR NUT
KNOB
FRONT PANEL
Remove with;
“ICOM Driver (K)”
(8960000110)
FRONT PANEL
CHASSIS
SCREW×2
SPEAKER
WIRE
CHASSIS
FRONT PANEL
TOP SEAL
NUT×2
SIDE SEAL
CHASSIS
Remove with;
“ICOM Driver (AG)”
(8960000560)
UNSOLDER
Solder
remover
CHASSIS
SCREW×9
PCB
MAIN UNIT
SIDE PLATE
Suction lifter
Suction lifter
• Part name : EA950R-2
• Manufacture : ESCO CO.LTD
To Next Page
