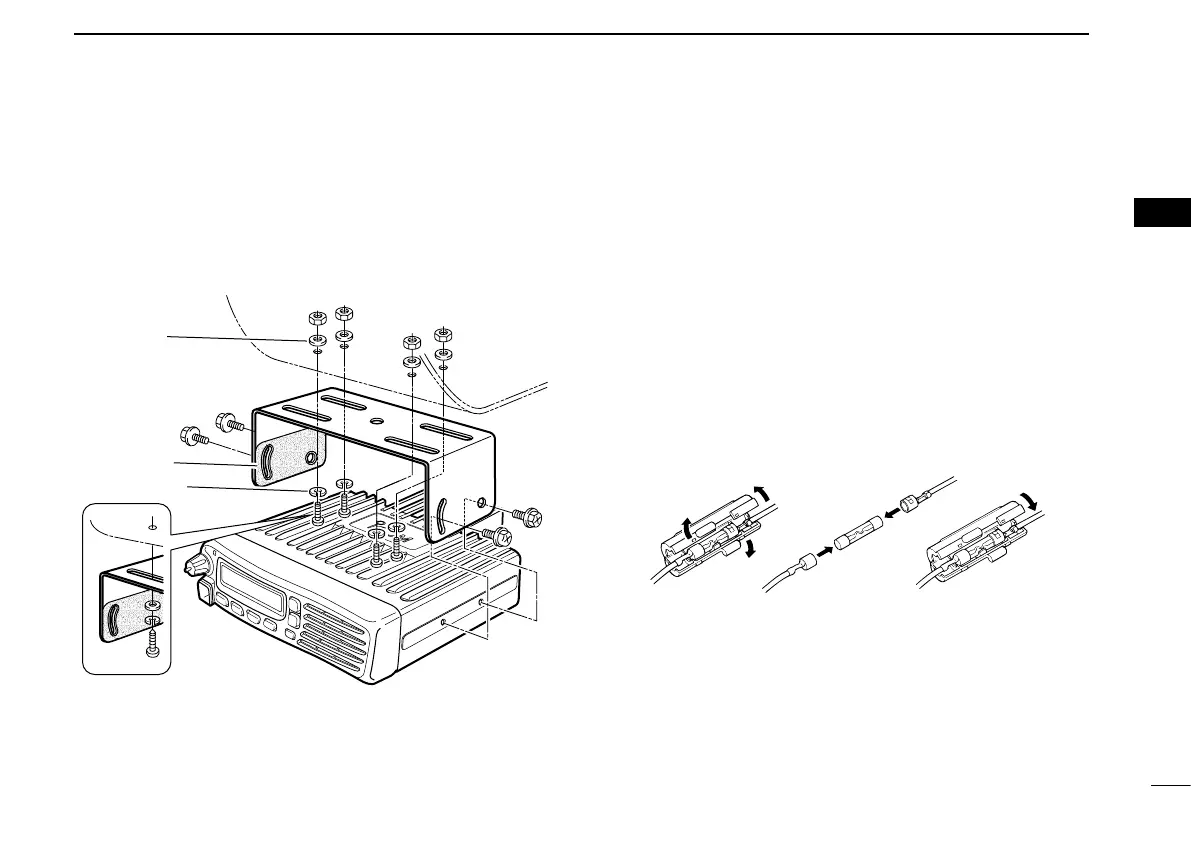

Mounting the transceiver
■
The universal mounting bracket supplied with your transceiv-
er allows overhead mounting.
•Mountthetransceiversecurelywiththe4suppliedscrewstoathick
surface which can support more than 1.5 kg (3.3 lb).
Flat washer
Felt*
Spring washer
When using
self-tapping screws
*Felt reduces the effects of vibration.
Antenna
■
A key element in the performance of any communication sys-
tems is its antenna. Contact your dealer for more information
regarding antennas and how to install them.
Fuse replacement
■
A fuse is installed in each fuse holder of the supplied DC
power cable. If a fuse blows or the transceiver stops function-
ing, track down the source of the problem if possible, repair it
and then replace the damaged fuse with a new rated one.
❑Fuserating:20A
USE only the applicable fuse.
