7

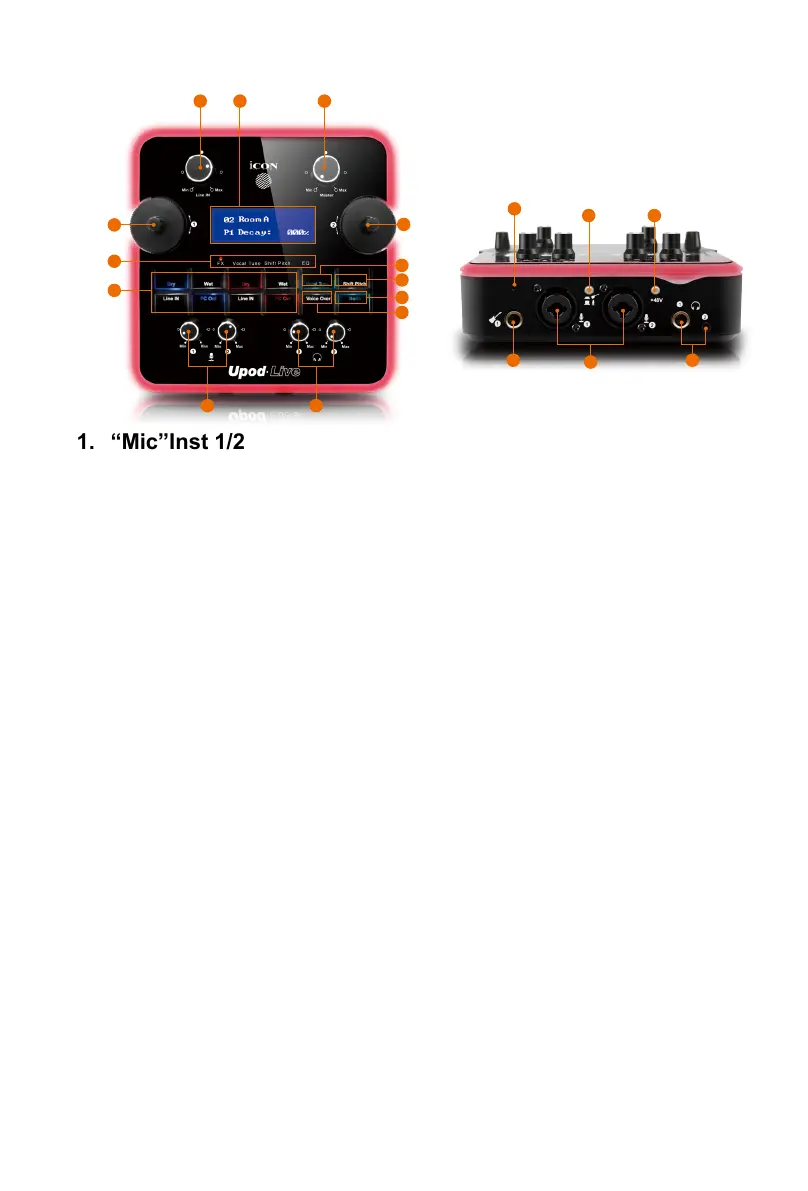

Front/Top Panel
1. “Mic”Inst 1/2
Unbalanced mic level inputs. These hybrid connectors will accept a standard
3-pin XLR plug or a 1/4” TS connector.
Note: +48V phantom power will only be provided to XLR connector.
2. HI-Z input & gain control
This is high impedance input for guitar/bass with individual gain control knob.
3. Mic/Instrument input switch
Switch input from mic to Instrument or vice versa.
4. 48V phantom power switch
Press to supply +48V phantom power to both XLR input. This phantom power
circuit is suitable for most condenser microphones.
5. Input gain level controls 1/2
These potentiometers control the input level of the associated analog
microphone (& instrument) inputs.
6. Master level control
This potentiometer controls the master output level of the analog outputs.
Note: Master level control will only adjust the output level of both the Line output
1/2 and the 3.5mm stereo output.
7. Headphone level control
These potentiometers control the output level of the associated headphone
output.
8. Headphone output
These output jacks accept a standard 1/4″ stereo TRS headphone and a 3.5mm
stereo TRS connector.
1
43
8
14
5 7
69
13
12
11
11
10
15
17
16
18
2
