ICON EDGE - Rigging Using Omega Brackets

ICON EDGE USER MANUAL
11

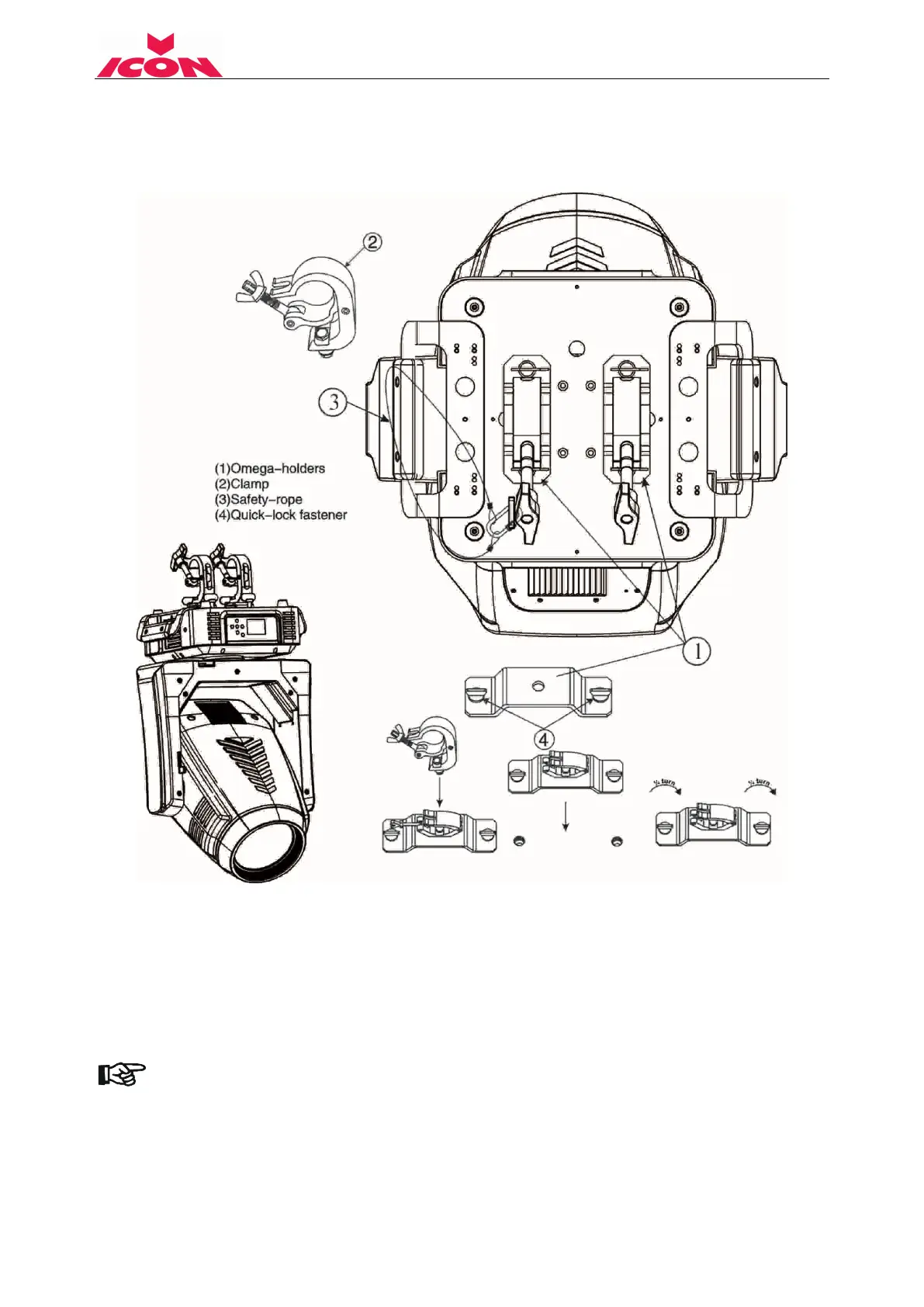

5.3. RIGGING USING THE OMEGA BRACKETS
 Fix the clamp to the bracket by tightening the M12 nut and bolt to the bracket through the Ф13 hole
in the middle of the bracket.
 Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of
the device. Tighten the quick-lock fasteners fully clockwise.
 Install the second Omega holder.
 Pull the safety cable through the holes on the bottom of the base and over the trussing system or
another suitable rigging point. Insert the end into the carabiner and tighten the safety screw.
Important:
This step is very important to ensure safe rigging of the fixture.
