Battery Disconnection

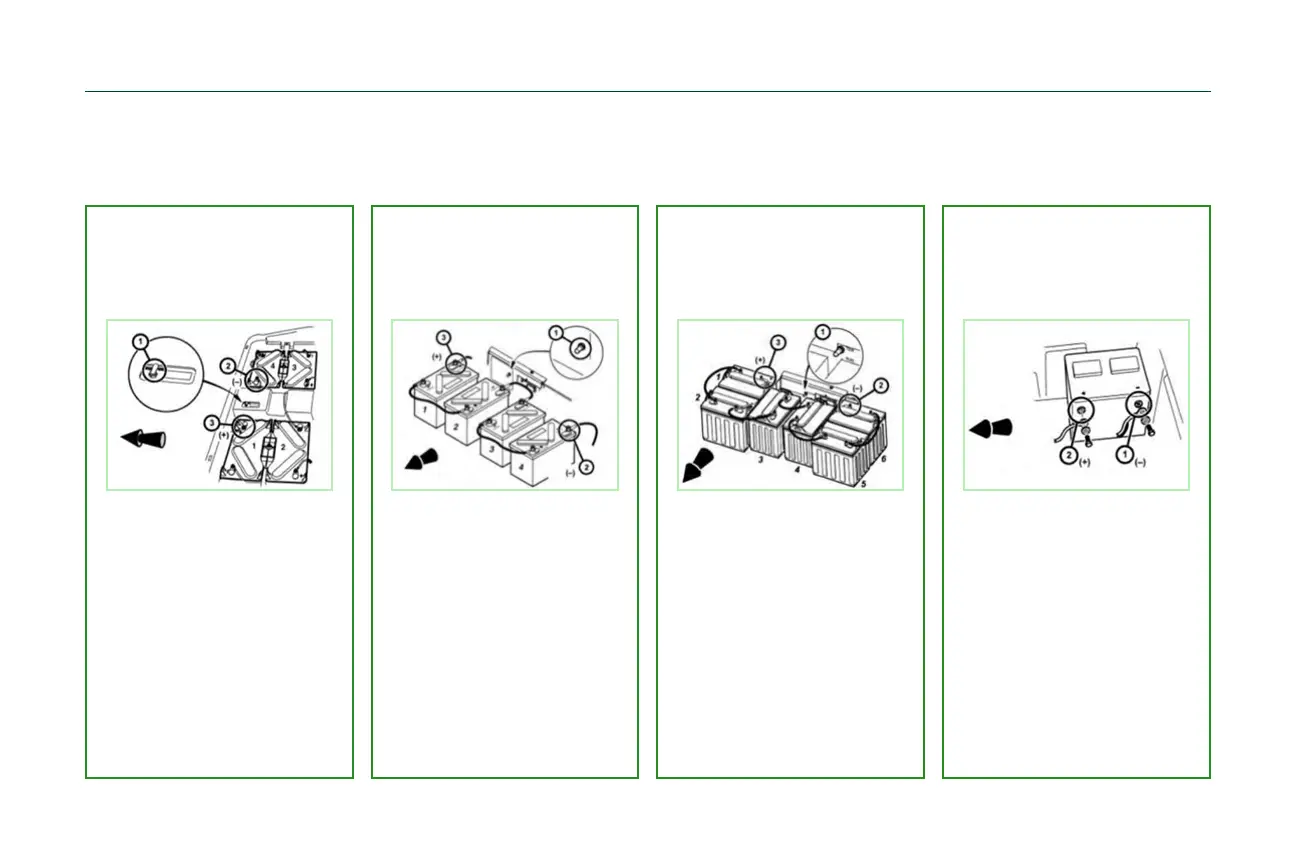

Refer to the following figures for correct battery disconnection information for your vehicle.
*Viewed from driver side of
vehicle
01. Place TOW/RUN Switch in
TOW before disconnecting
or connecting battery
cables.
02. Remove negative battery
cable.
03. Remove positive battery
cable.
04. Connect battery cables in
reverse order.
*Viewed from driver side of
vehicle
01. Place TOW/RUN Switch in
TOW before disconnecting
or connecting battery
cables.
02. Remove negative battery
cable.
03. Remove positive battery
cable.
04. Connect battery cables in
reverse order.
*Viewed from driver side of
vehicle
01. Remove negative battery
cable.
02. Remove positive battery
cable.
03. Connect battery cables in
reverse order.
*Viewed from driver side of
vehicle
01. Remove negative battery
cable.
02. Remove positive battery
cable.
03. Connect battery cables in
reverse order.
Battery Cable Removal -
Style A Electric Vehicle
Battery Configuration
Battery Cable Removal -
Style B Electric Vehicle
Battery Configuration
Battery Cable Removal -
Style C Electric Vehicle
Battery Configuration
Battery Cable Removal -
Gasoline
