PMX-090T DM&P Vortex86MX+ Panel PC with 9” WSVGA TFT LCD
2.4 External I/O Overview
{ PMX-090T-8A / PMX-090T-8A-512 }

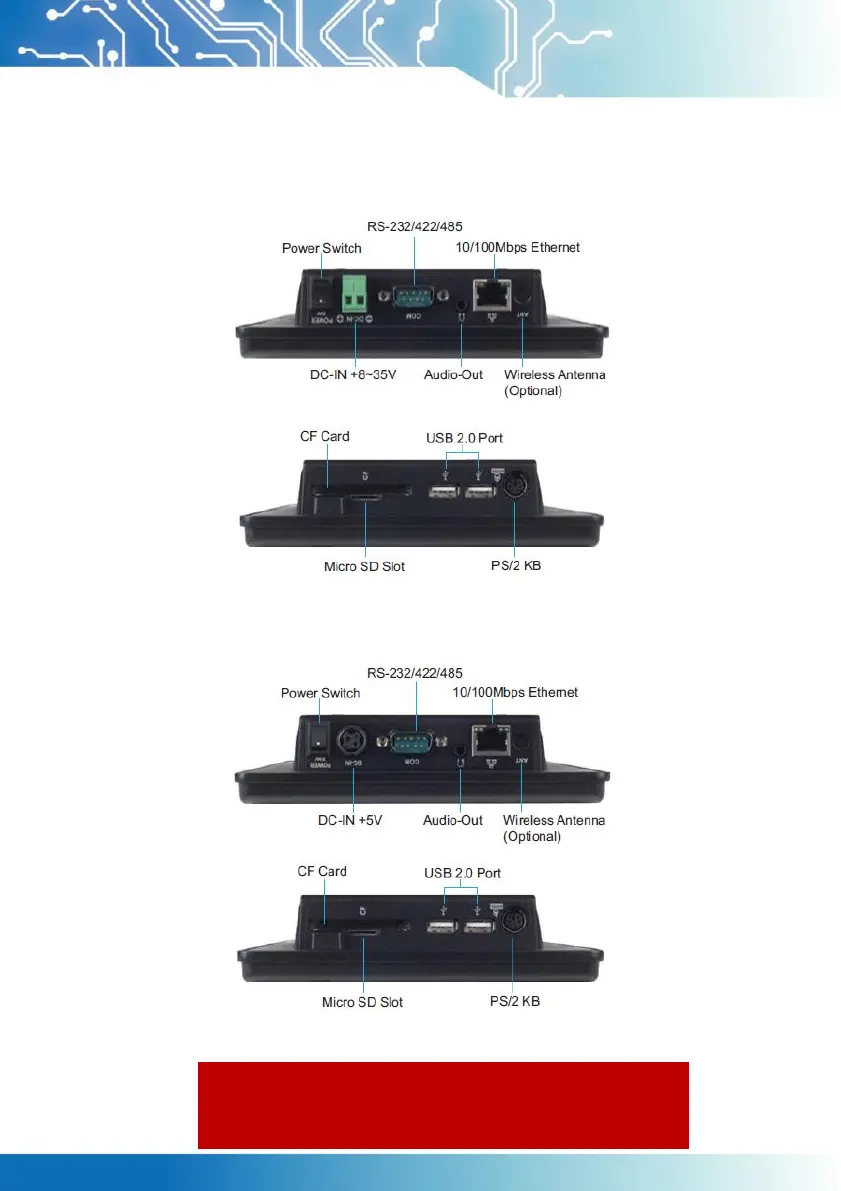

Fig 2-2 PMX-090T-8A I/O overview
{ PMX-090T-5A / PMX-090T-5A-512 }
Fig 2-3 PMX-090T-5A I/O overview
{Note}
1. Wireless is optional
2. COM1 RS232/422/485 is selected by BIOS setting)
