PMX-090T DM&P Vortex86MX+ Panel PC with 9” WSVGA TFT LCD

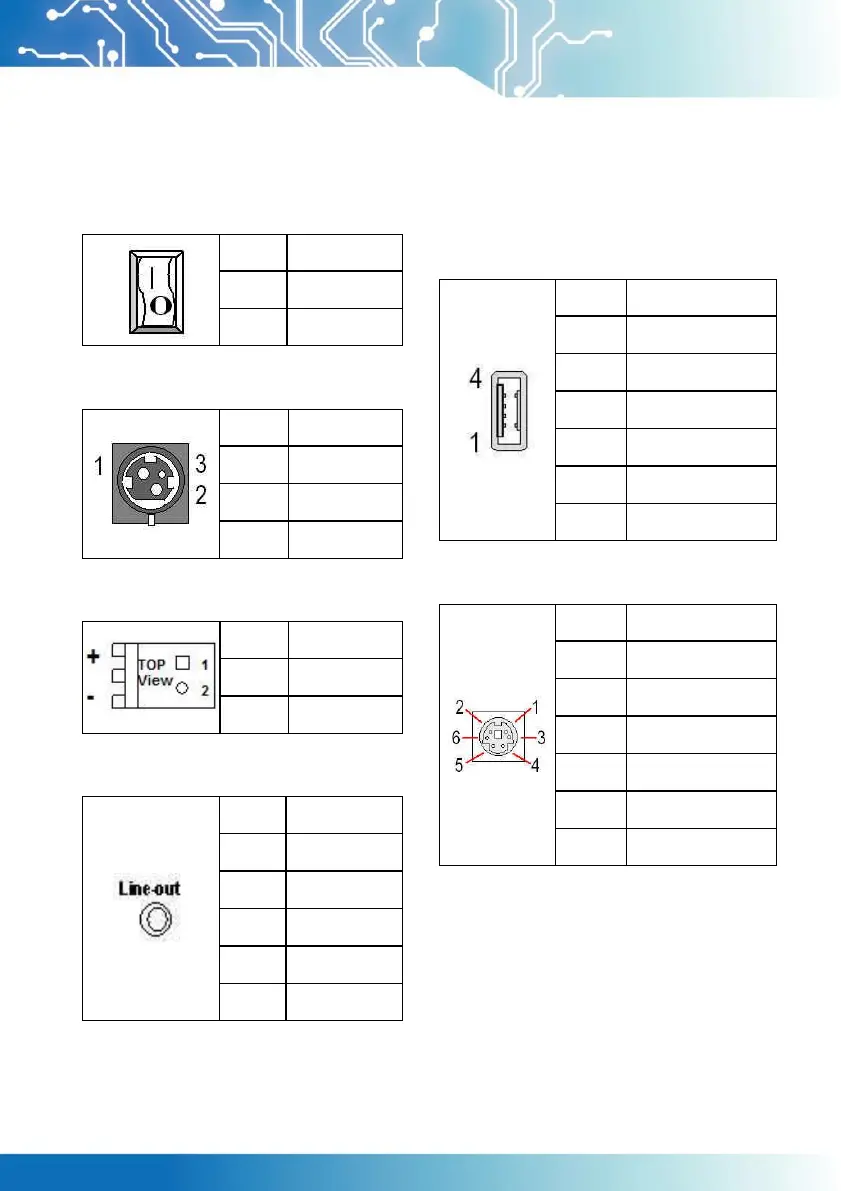

2.5 External I/O Pin Assignment
Power Switch
Pin #
Status
|
ON
O
OFF
Power Connector (5A)
Pin #
Signal Name
1
+5V
2
GND
3
NC
Power Connector (8A)
Pin #
Signal Name
1
+8 ~ 35V
2
GND
Audio Line-Out
Pin #
Signal Name
1
GND
2
LOUTL
3
Open Touch
4
Open Touch
5
VREFOUT
USB Port
Pin #
Signal Name
1
VCC
2
USB0-
3
USB0+
4
GND
5
GGND
6
GGND
PS/2 Keyboard
Pin #
Signal Name
1
KBCLK
2
PMCLK
3
GND
4
KBDAT
5
PMDAT
6
SB5V
