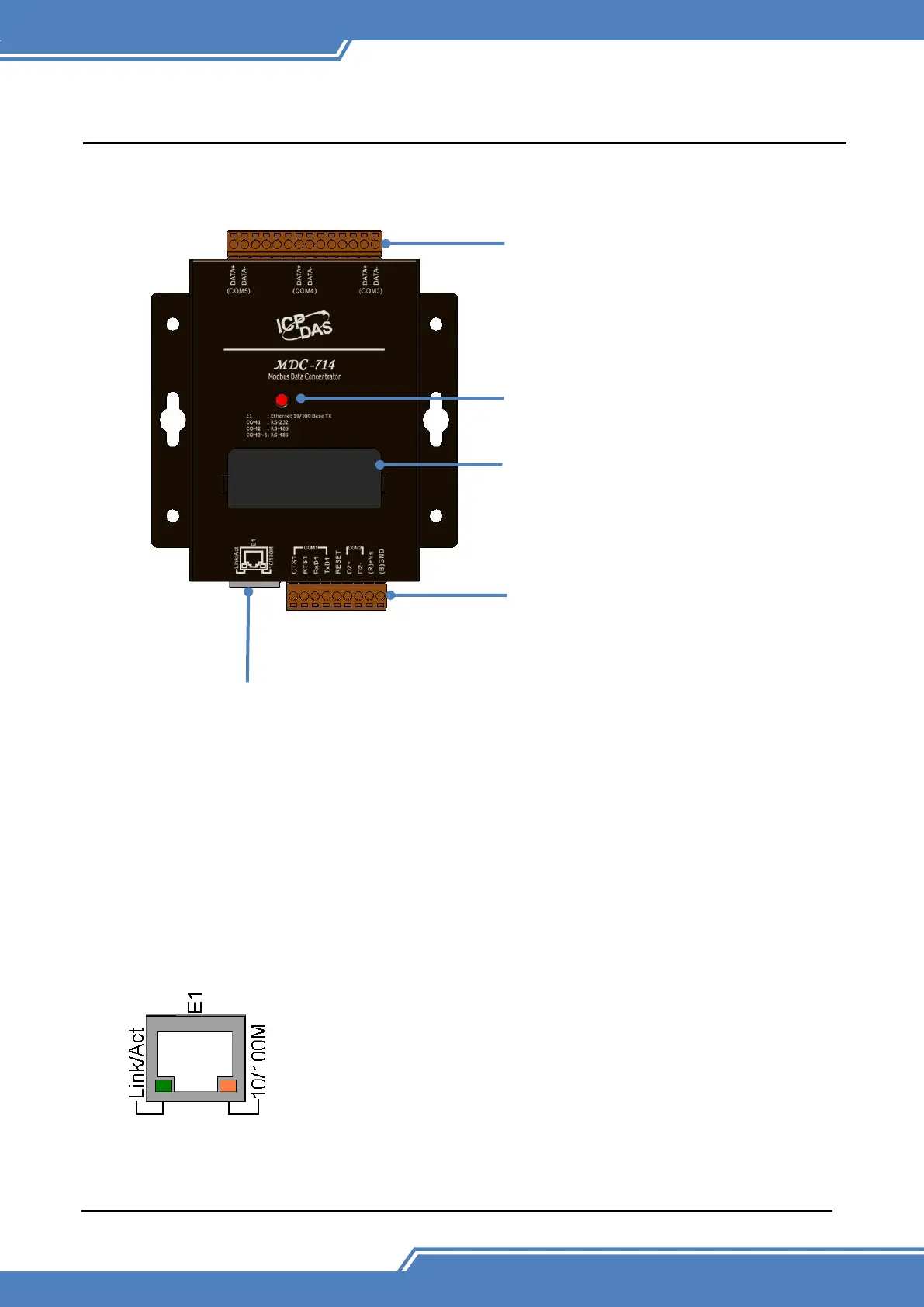

2.2. Appearance
 LED Indicator
The LED is used as a heartbeat indicator and slows to approximately one flash per second.
 Ethernet Port
The MDC-700 is equipped with a RJ45 port for Ethernet LAN
connection. When 100BASE-TX is operating, the 10/100M LED
is lit orange. When 10BASE-T is operating or the machine is
not connected to the network, it is turned off. When an
Ethernet link is detected and an Ethernet packet is received,
the Link/Act LED is lit green.
LED Indicator
Configuration Display
組態設定顯示器
Connectors:
Power
COM2
Reset
COM1
Connectors: COM3 ~ COM8
Ethernet Port
