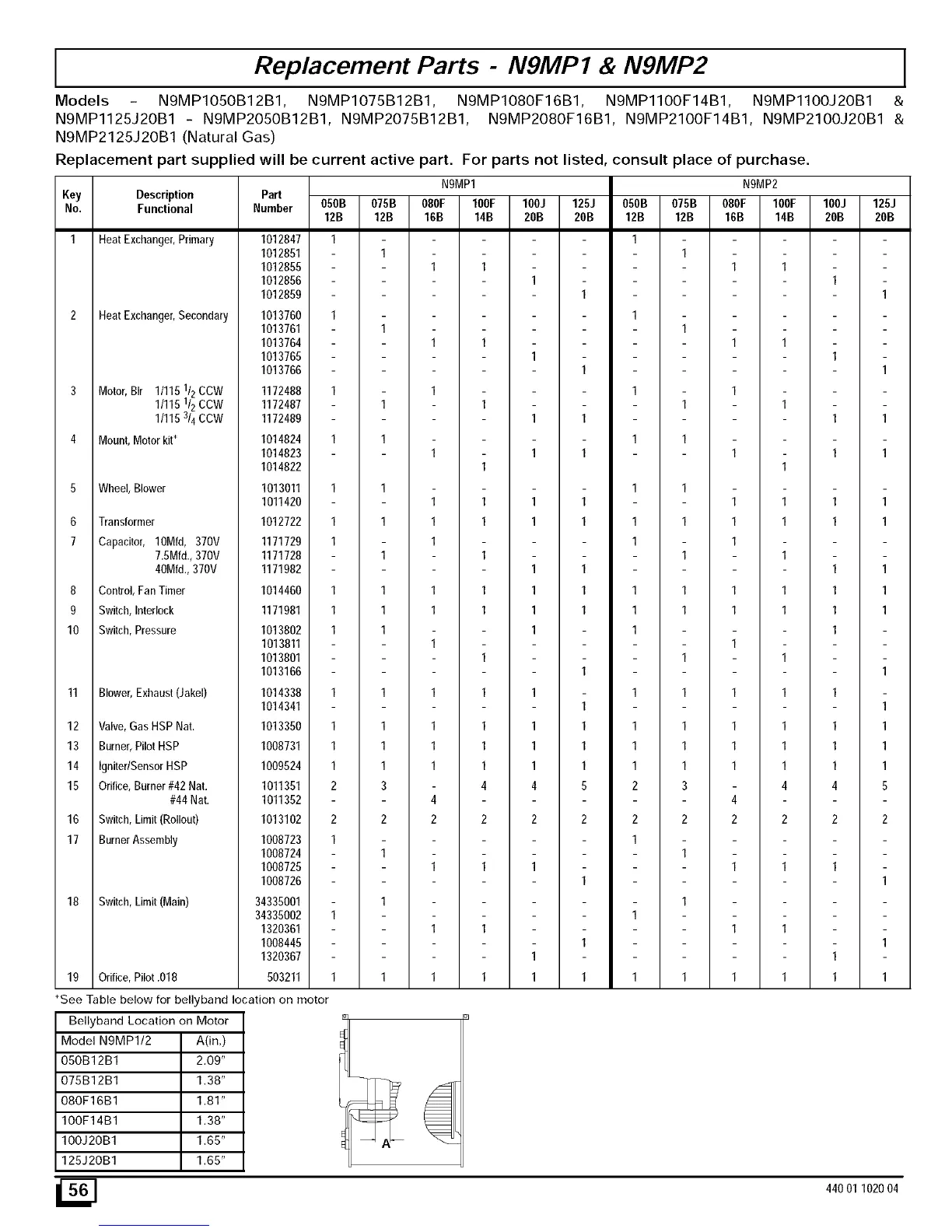

I Replacement Parts - NgMP1 & NgMP2
Models - N9MP105OB12B1, N9MP1075B12B1, N9MP108OF16B1, N9MP11OOF14B1, N9MP11OOJ2OB1 &
N9MP1125J2OB1 - N9MP205OB12B1, N9MP2075B12B1, N9MP208OF16B1, N9MP21OOF14B1, N9MP21OOJ2OB1 &
N9MP2125J2OB1 (Natural Gas)
Replacement part supplied will be current active part. For parts not listed, consult place of purchase.
N9MP1 N9MP2
Key Description Part
No, Functional Number 050B 078B 080F IOOF 100J 125J 050B 075B 080F 100F 100J 125J
12B 12B 16B 14B 20B 20B 12B 12B 16B 14B 20B 20B
1 Heat Exchanger,Primary 1012847 1 1
1012851 1 1
1012855 1 1 1 1
1012856 1 1
1012859 1 1
2 Heat Exchanger,Secondary 1013760 1 1
1013761 1 1
1013764 1 1 1 1
1013765 1 1
1013766 1 1
3 Motor, BIr 1/115 1/2CCW 1172488 1 1 1 1
1/115 1/2CCW 1172487 1 1 1 1
1/1153/4CCW 1172489 1 1 1 1
4 Mount, Motorkit_ 1014824 1 1 1 1
1014823 1 1 1 1 1 1
1014822 1 1
5 Wheel, Blower 1013011 1 1 1 1
1011420 1 1 1 1 1 1 1 1
6 Transformer 1012722 1 1 1 1 1 1 1 1 1 1 1 1
7 Capacitor, 10Mfd, 370V 1171729 1 1 1 1
7.SMfd.,370V 1171728 1 1 1 1
40Mfd.,370V 1171982 1 1 1 1
8 Control,FanTimer 1014460 1 1 1 1 1 1 1 1 1 1 1 1
9 Switch, Interlock 1171981 1 1 1 1 1 1 1 1 1 1 1 1
10 Switch, Pressure 1013802 1 1 1 1 1
1013811 1 1
1013801 1 1 1
1013166 1 1
11 Blower,Exhaust(Jakel) 1014338 1 1 1 1 1 1 1 1 1 1
1014341 1 1
12 Valve,GasHSP Nat. 1013350 1 1 1 1 1 1 1 1 1 1 1 1
13 Burner,PilotHSP 1008731 1 1 1 1 1 1 1 1 1 1 1 1
14 Igniter/SensorHSP 1009524 1 1 1 1 1 1 1 1 1 1 1 1
15 Orifice,Burner#42 Nat. 1011351 2 3 4 4 5 2 3 4 4 5
#44 Nat. 1011352 4 4
16 Switch, Limit(Ronout) 1013102 2 2 2 2 2 2 2 2 2 2 2 2
17 BurnerAssembly 1008723 1 1
1008724 1 1
1008725 1 1 1 1 1 1
1008726 1 1
18 Switch, Limit(Main) 34335001 1 1
34335002 1 1
1320361 1 1 1 1
1008445 1 1
1320367 1 1
1 1 1 1 1 1 1 1
19 Orifice, Pilot .018 503211 1
_See Table below for bellyband location on motor
Bellyband Location on Motor
Model N9MPI/2 A(in.)
050B12B1 2.09"
075B12B1 1.38"
080F16B1 1.81"
100F14B1 1.38"
100J20B1 1.65"
125J20B1 1.65"
1 1 1
_] 440 01 102004
