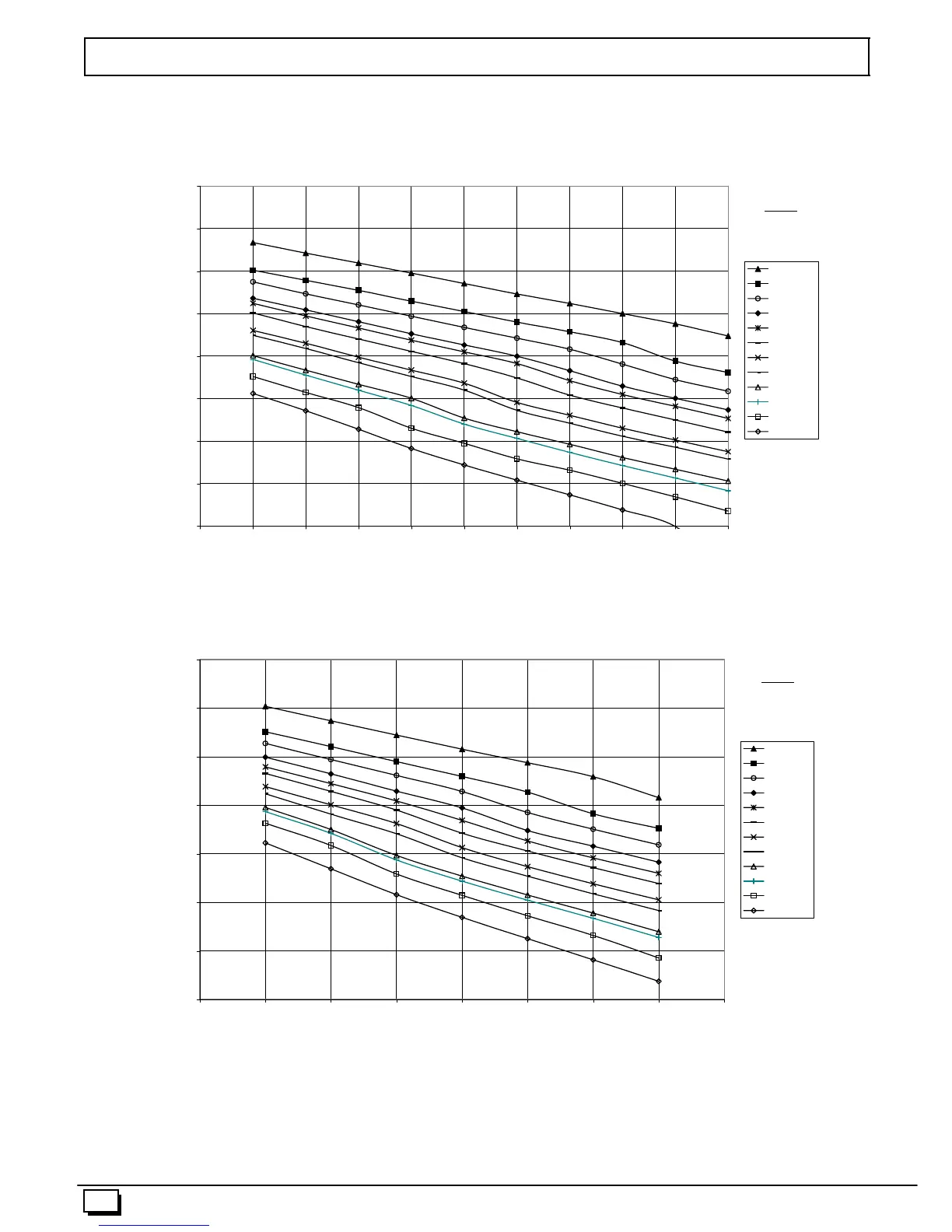

Circulation Air Blower Data - *9MPV075
Cooling Airflow Settings
High Cooling Airflows
*9MPV075F12
200
400
600
800
1000
1200
1400
1600
1800
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
01 (+)
00 (-)
01 (NOM)
10 (+)
01 (-)
10 (NOM)
11 (+)
10 (-)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
Low Cooling Airflows
*9MPV075F12
0
200
400
600
800
1000
1200
1400
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
01 (+)
00 (-)
01 (NOM)
10 (+)
01 (-)
10 (NOM)
11 (+)
10 (-)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
