1

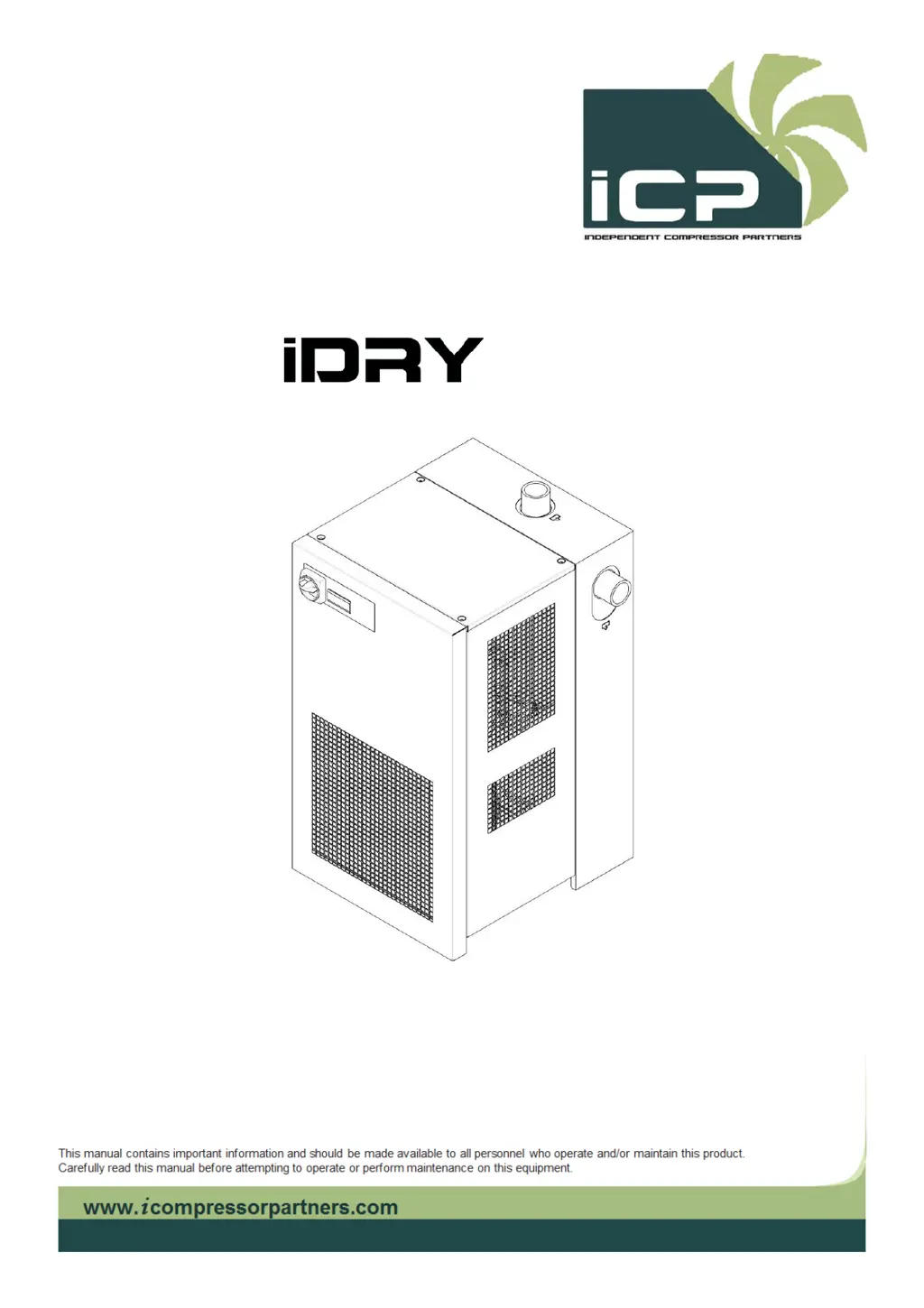

Compressed air refrigeration dryer

iRDP CT 20-500

Instructions for installation and operation english

Table of Contents

Questions and Answers

M
Max HobbsAug 15, 2025
Why is the dew point too high on my ICP Dehumidifier?
- J
  Jason PetersonAug 16, 2025
  A high dew point in your ICP Dehumidifier can be caused by several factors. The compressor may not be working, or the DewPoint probe T1 may not be correctly detecting the temperature, ensure the sensor is pushed into the bottom of probe well. The ambient temperature might be too high, or the room aeration might be insufficient, so provide proper ventilation. Other potential causes include the inlet air being too hot or at too low pressure; the inlet airflow rate being higher than the dryer's rate, reduce the flow rate and restore nominal conditions; or a dirty condenser, clean it. If ESS=YES, wait for the compressor to start, and the DewPoint will drop to a lower temperature.
W
William MorganAug 22, 2025
What to do if my ICP iDRY iRDP CT 500 fan of the condenser does not work?
- W
  Wendy ThompsonAug 22, 2025
  If the condenser fan on your ICP Dehumidifier isn't working, start by verifying the electric wiring. If you have an iRDP CT 200-500 3phase model, check for a blown fuse (FU1-FU2 on the electric diagram) and replace it, then check the dryer's operation.
C
Colleen BrooksAug 25, 2025
What causes the internal heat protection of the compressor to activate in my ICP Dehumidifier?
- A
  Anthony JosephAug 25, 2025
  The internal heat protection of the compressor in your ICP Dehumidifier might be activated due to several reasons. It could be due to excessive thermal load, so restore the standard operating conditions. The inlet air may be too hot, so restore the nominal conditions. Insufficient room aeration or high ambient temperature could also be contributing factors, so provide proper ventilation. Check if the condenser unit is dirty and clean it if necessary. Wait 30 minutes and then retry.
M
michael86Aug 28, 2025
What to do if the solenoid valve EVL or EVH doesn’t operate correctly on my ICP iDRY iRDP CT 500 Dehumidifier?
- D
  David ButlerAug 28, 2025
  If the solenoid valve EVL or EVH on your ICP Dehumidifier isn't operating correctly, first verify the electric wiring. If the solenoid valve is not activated but there is voltage to the coil, the coil may be faulty, so replace it. If the solenoid valve is always activated and there is always voltage to the coil, verify the electric wiring. If the solenoid valve is not activated and there is no voltage to the coil – the internal relay of DMC51 is faulty, replace DMC51. If the solenoid valve is always activated and there is always voltage to the coil – the internal relay of DMC51 is faulty, replace DMC51.
A
Alexandra Deleon MDAug 31, 2025
What does it mean if the HPS high-pressure switch has been activated on my ICP iDRY iRDP CT 500?
- C
  Charles JonesAug 31, 2025
  If the HPS high-pressure switch has been activated on your installed ICP Dehumidifier, it could be due to several reasons. The ambient temperature might be too high, or the room aeration might be insufficient, so provide proper ventilation. The condenser could be dirty, so clean it. Reset the pressure switch by pressing the button on the switch itself and check the proper operation of the dryer.
M
Matthew HoffmanSep 3, 2025
What does it mean if T2 installed compressor outlet temperature too high has been triggered on my ICP Dehumidifier?
- B
  Brenda OsborneSep 3, 2025
  If the compressor outlet temperature is too high on your ICP Dehumidifier, ensure that excessive thermal load is not the cause and restore the standard operating conditions. The inlet air could be too hot, so restore the nominal conditions. The ambient temperature might be too high, or the room aeration might be insufficient, so provide proper ventilation. The condenser unit could be dirty, so clean it. If the T2 sensor is faulty, replace it.
D
darnoldSep 6, 2025
What does it mean if the LPS low-pressure switch has been activated on my ICP iDRY iRDP CT 500?
- R
  Robin Singh DDSSep 6, 2025
  If the LPS low-pressure switch has been activated on your installed ICP Dehumidifier, the pressure switch will reset automatically when normal conditions are restored, so check the proper operation of the dryer.
J
Jason MitchellSep 8, 2025
What does it mean if ESS=YES: the alarm (TOC) has been triggered on my ICP iDRY iRDP CT 500 Dehumidifier?
- J
  Jorge HenrySep 9, 2025
  If the TOC alarm has been triggered on your ICP Dehumidifier, ensure that the inlet air is not too cold, restore the nominal conditions. Also, make sure that the ambient temperature is not too low and restore the nominal conditions.
B
bellcourtneySep 12, 2025
How to troubleshoot if the display of DMC51 is not lit on my ICP iDRY iRDP CT 500?
- D
  Donna MichaelSep 12, 2025
  To troubleshoot a DMC51 display that is not lit on your ICP Dehumidifier, verify that the system is powered and check the electric wiring. If installed, check if the HPS pressure switch has been activated. For iRDP CT 200-500 3phase models, check for a blown fuse (FU2 on the electric diagram) of the auxiliary circuit and replace it, then check the dryer's operation. For iRDP CT 200-500 3phase models, ensure the remote control is not OFF (check the contact on terminals 1-2 on the electric diagram).
D
Derrick KingNov 18, 2025
What to do if the compressor on my ICP iDRY iRDP CT 500 does not work?
- D
  Dustin TaylorNov 18, 2025
  If the compressor on your ICP Dehumidifier isn't working, several factors could be the cause. If ESS=YES, the Dew Point displayed on DMC51 may be sufficiently low, wait for the temperature to become higher. Check the electric wiring. If installed, the KC relay may be faulty, replace it. Also, activation of the compressor internal thermal protection could be the reason, wait 30 minutes and then retry. If ESS=YES, running in low or no-load conditions and at mild/low ambient temperatures could be the reason, check that the DewPoint probe T1 correctly detects the temperature and ensure the sensor is pushed into the bottom of probe well. If the thermal insulation of DewPoint probe T1 is damaged, restore the thermal insulation. Ensure proper ventilation if the ambient temperature is too high, or...

Summary

Safety Instructions and Precautions

Safety Pictograms (DIN 4844)

Explains standard safety symbols used to convey warnings and precautions.

Signal Words (ANSI)

Defines the hierarchy of hazard levels: Danger, Warning, Caution, Notice.

Overview of Safety Instructions

Proper Use and Application Exclusion

Intended Use and Limitations

Technical Description of Dryer

Control Panel Overview

Functional Description and Refrigeration Cycle

Explains the dryer's working principle, including air drying and refrigeration cycles.

Installation Procedures

Place of Installation Requirements

Specifies environmental conditions and clearance needed for proper dryer placement.

Correction Factors for Air Throughput

Connection to Air System and Utilities

Instructions for connecting the dryer to the compressed air system, power, and drain.

Start-up Procedures

Preliminary Stages and Initial Start-up

Steps and precautions before and during the first start-up of the dryer.

Shut Down and Restart Procedures

Technical Data Specifications

Maintenance, Troubleshooting, and Dismantling

Routine Checks and Maintenance Schedule

Safety Precautions for Maintenance

Covers dangers of compressed air, supply voltage, and hot surfaces during maintenance.

Troubleshooting Common Faults

Details reasons and solutions for specific dryer malfunctions like non-working compressor or fan.

Troubleshooting Alarms and Warnings

Explains alarm codes, service warnings, and their resolution procedures.
