ICS 680ES - Starter Assembly; Spare Parts Diagram

© 2017 ICS- Blount Inc Specications and pricing are subject to change without notice. P/N 598000 REV072717
8
680ES SERVICE MANUAL
4. SPARE PARTS DIAGRAM

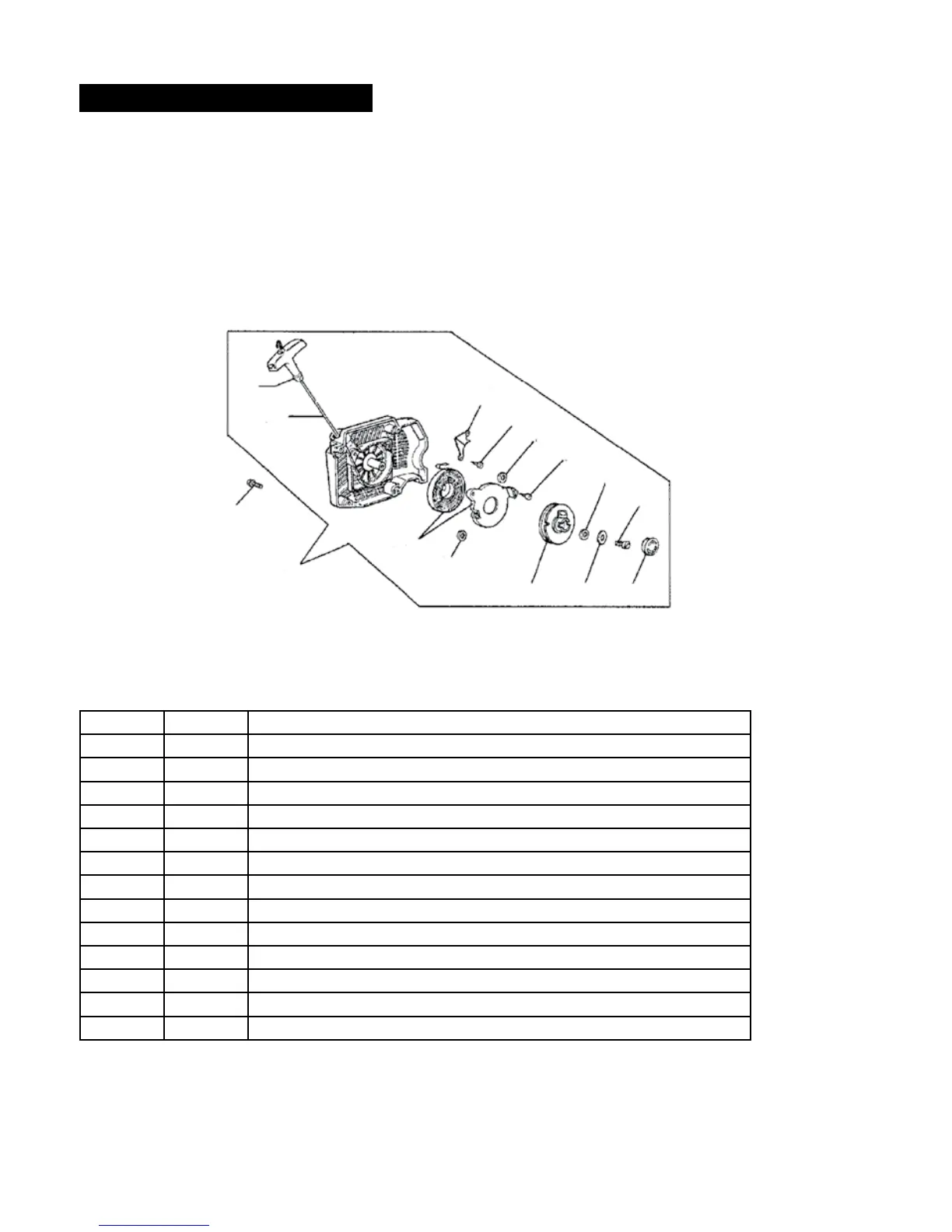

Starter Assembly
Key # Part No. Description
A1 73230 Bolt
A2 530208 Starter Rope Handle
A3 73904 Starter Rope
A4 531103 Starter Coil Spring & Housing
A5 71451 Starter Case Plate
A6 505380 Recoil Housing Screw
A7 528661 Starter Rope Pulley
A8 73905 Starter Pulley Washer
A9 73907 Starter Pulley Screw
A10 528637 Starter Cover Assembly
A11 530367 Starter Assembly Washer
A12 532026 Spring Housing Washer
A13 508853 Starter Assembly Cap
A1
A2
A3
A4
A12
A13A8A7
A11
A6
A12
A6
A5
A9
A10
