INSTALLATION
9

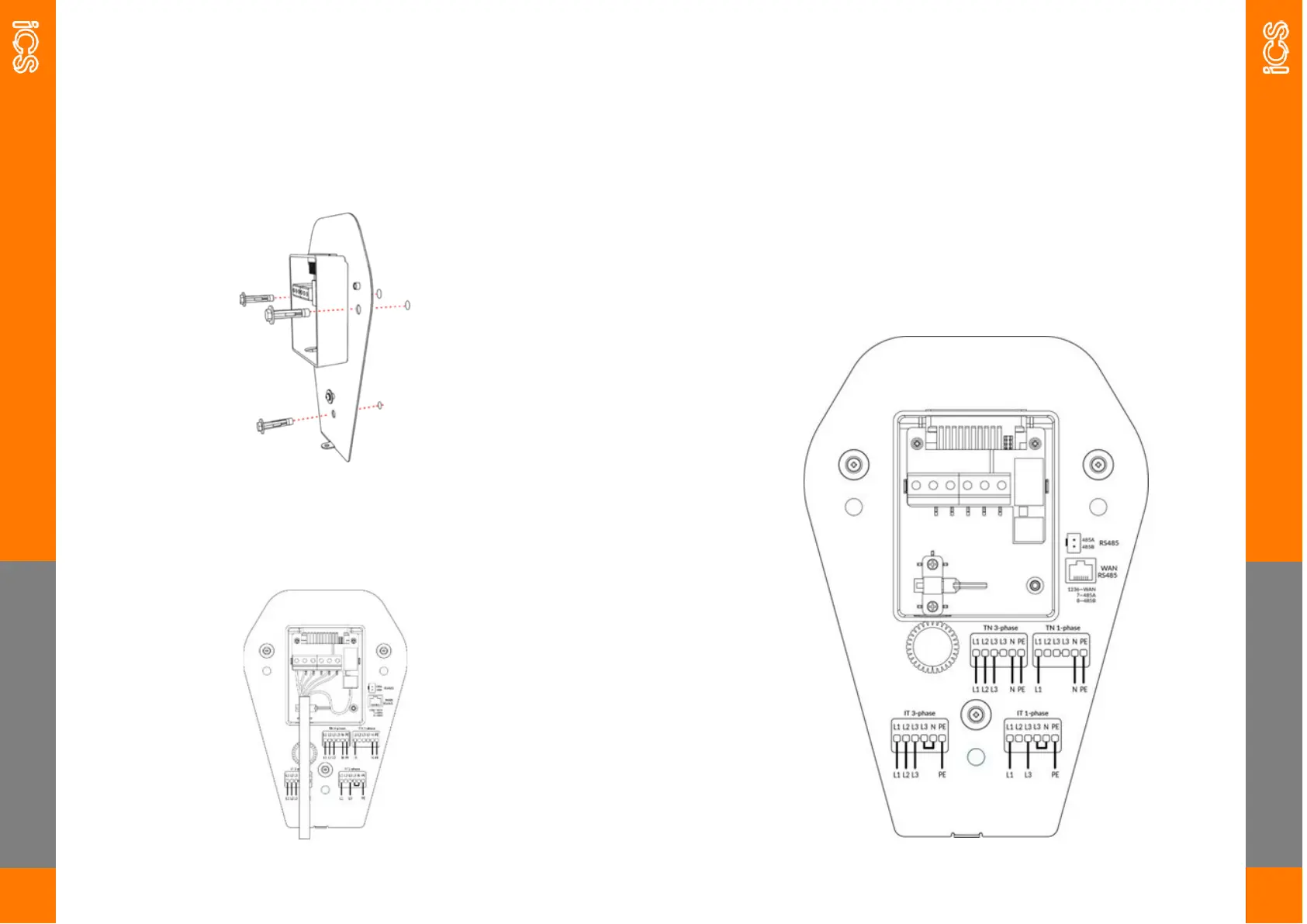

STEP 2—WALL MOUNTING & WIRING
2.1. Remove the backplate from the charger by unscrewing the
security screw and sliding the charger upwards from the
back plate. Once removed, mount the backplate to the wall
using the fixings provided.
2.2. Connect the power cables through the bottom of the
junction box and if required an ethernet cable to the WAN
port. Secure the cable with the securing clip, no additional
glands are required.
INSTALLATION
10
Notes —Electrical connection
There are four possible connection variants, depending on whether three
phase is used and whether a TN or IT network is used, this is shown on
the label of the backplate.
The terminals should not be over tightened as this may damage the back
plate. The recommended torque setting for the electrical terminals is
1.2Nm.
