IB-170 Series
http://www.icybox.de
5
Trayless Mobile Rack for 3.5" SATA HDD

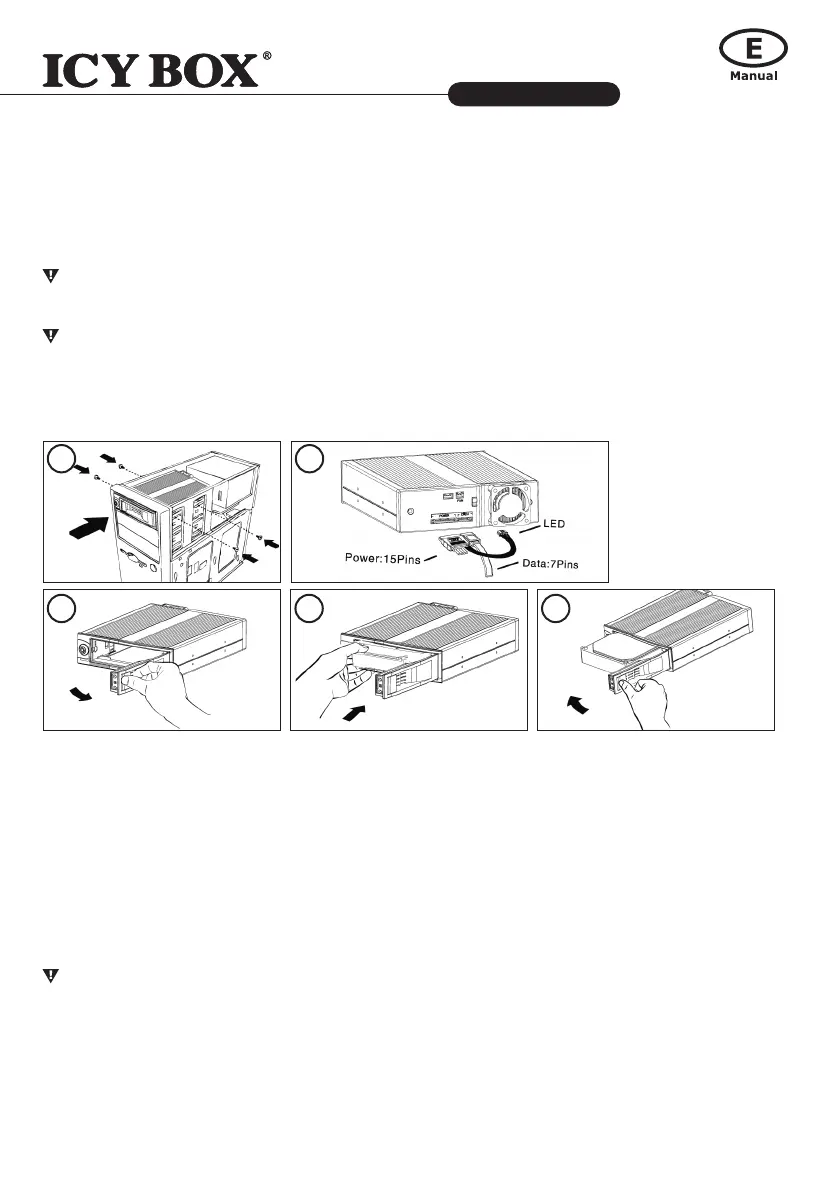

7. Installation
1. Mount the IB-170SK-B into a 5.25" bay with 4 screws.
2. Connect the 15 pin power cable for SATA HDD and the 2 pin power cable for cooling fan with the
power supply, the 7 pin SATA data cable with the SATA controller.
Please do connect the cooling fan power to avoid overheat!
3. Pull the spring lock to open the front door.
4. Place the SATA hard drive into the IB-170SK-B with the hard drive label (printed) side upwards.
The HDD must be put in the right direction. Otherwise the front panel door will not
be closed rmly. The IB-170SK-B will get damage if closed by force.
5. Press the door to push hard drive into the IB-170SK-B until door locks. Then lock it with the key.
So the HDD is installed.
1 2
3 4 5
8. Ejecting a hard drive
1. Unlock the key lock smoothly, pull the spring lock to open the door. The HDD will be ejected
automatically from the IB-170SK-B.
2. Carefully take the hard drive out from the IB-170SK-B.
9. Hot Swap function
If your SATA controller supports the Hot Swap function, and the operating system is not on the SATA
hard drive, it can be exchanged via a IB-170SK-B without shutting down the PC.
Attention:
1. A hard disk may reach over 50°C. It will not burn the ngers, but please touch it carefully.
2. A hard disk is a sensitive device and needs to be cared specially.
3. Do not eject the hard disk while it is busy.
4. Please hold the disk by edge, do not touch the circuit board on it.
5. We will only provide repair service to our product malfunction problems, not be responsible for
any software, hardware or data stored within it.
