Icy Box IB-170 Series User Manual

4
Trayless Mobile Rack for 3.5" SATA HDD
IB-170 Series
http://www.icybox.de
4
55
1. Model – HDD – Host Interface – Colour
2. Package Content
1x IB-170SK-B, 1x power cable, 1x SATA cable, 1x LED cable, 4x screws, 2x keys
3. Key Features
• Super fast HDD installation and exchange without tray
• Supports all 3.5-inch SATA (1 inch high) HDD in a 5.25" bay
• Rubber cushion to avoid vibration and noise
• Supports Hot Swap and EasySwap
®
• NSS (No-Scratch SATA) connector >50,000 times HDD exchange
• Key lock to prevent improper operation
• Cooling fan 40x40x10mm, runs only by installed HDD
• Special aluminium case for better heat evacuation
• Patents registered in Europe, USA, Taiwan and China

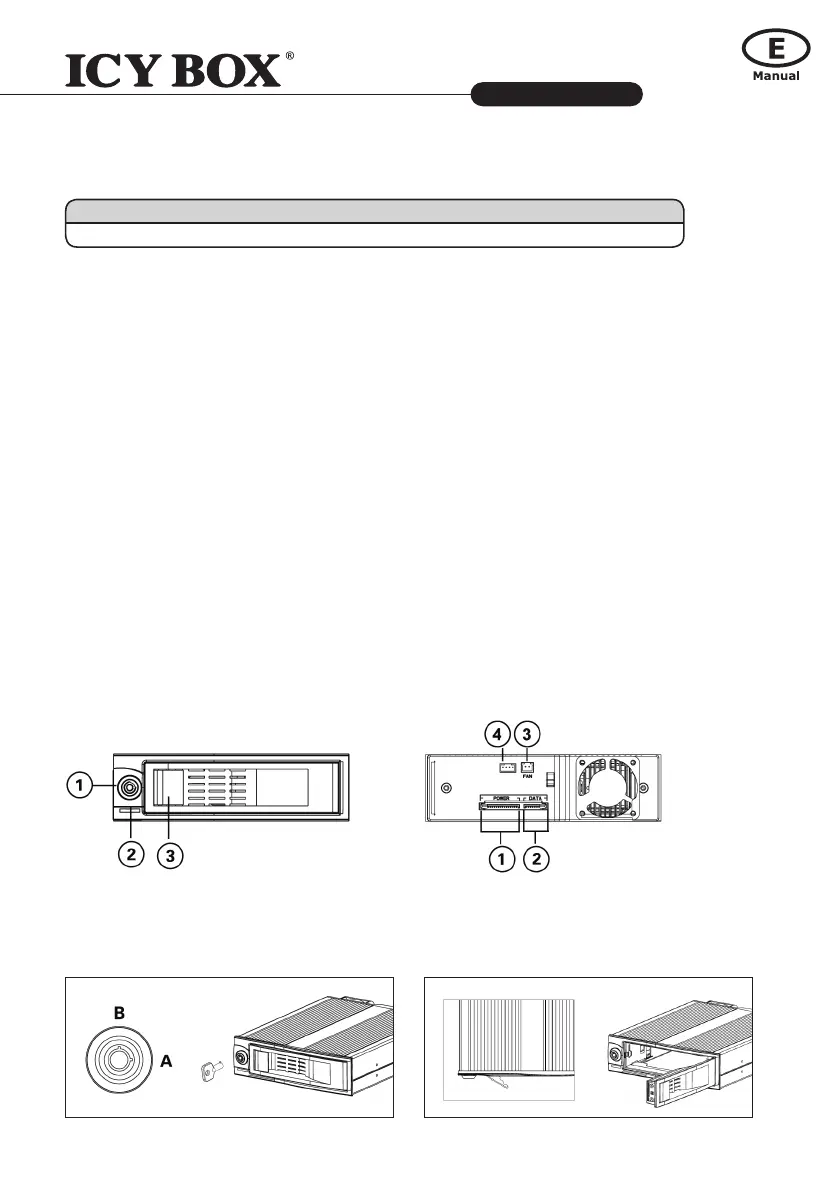

4. Front Panel and Rear Panel
1. Key lock 1. SATA power connector (15 pin)
2. HDD LED indicator 2. SATA data connector (7 pin)
3. Spring lock 3. Fan power connector (2 pin)
4. Access LED connector (4 pin)
5. Key lock 6. Spring lock
A: locked / B: open Pull the spring lock to unload the hard drive.
Model HDD Host Interface Colour
IB-170SK-B 1x 3.5" SATA 1x SATA black
