Icy Box IB-2207 Series User Manual

4
2.5" SATA Mobile Rack for PCI Slot
IB-2207 Series
http://www.icybox.de
4
Model HDD Host Interface Colour
IB-2207StS 1x 2.5" SATA 1x SATA black
1. Model – HDD – Host Interface – Colour
2. Package Content
1x IB-2207StS, 1x SATA cable, 1x LED cable, 1x screws, 1x manual
3. Key Features
• 1x 2.5" SATA HDD (5 - 9.5mm height) or SSD in a PCI Slot
• Easy Swap® – tool less HDD or SSD installation and exchange
• Hard disk capacity not limited
• SATA host interface 6.0 Gbit/s
• LED for power and HDD access
• Plug & play and hot swap
• Support all OS systems
• Aluminum Front door with key lock
4. Technical Data
Interface: 1x 15pin SATA power connector
1x 7pin SATA data connector
Material: SECC/Plastic
Dimension: 145 x 120 x 25 mm
Weight: 158 g
HDD height: 5 - 9.5 mm

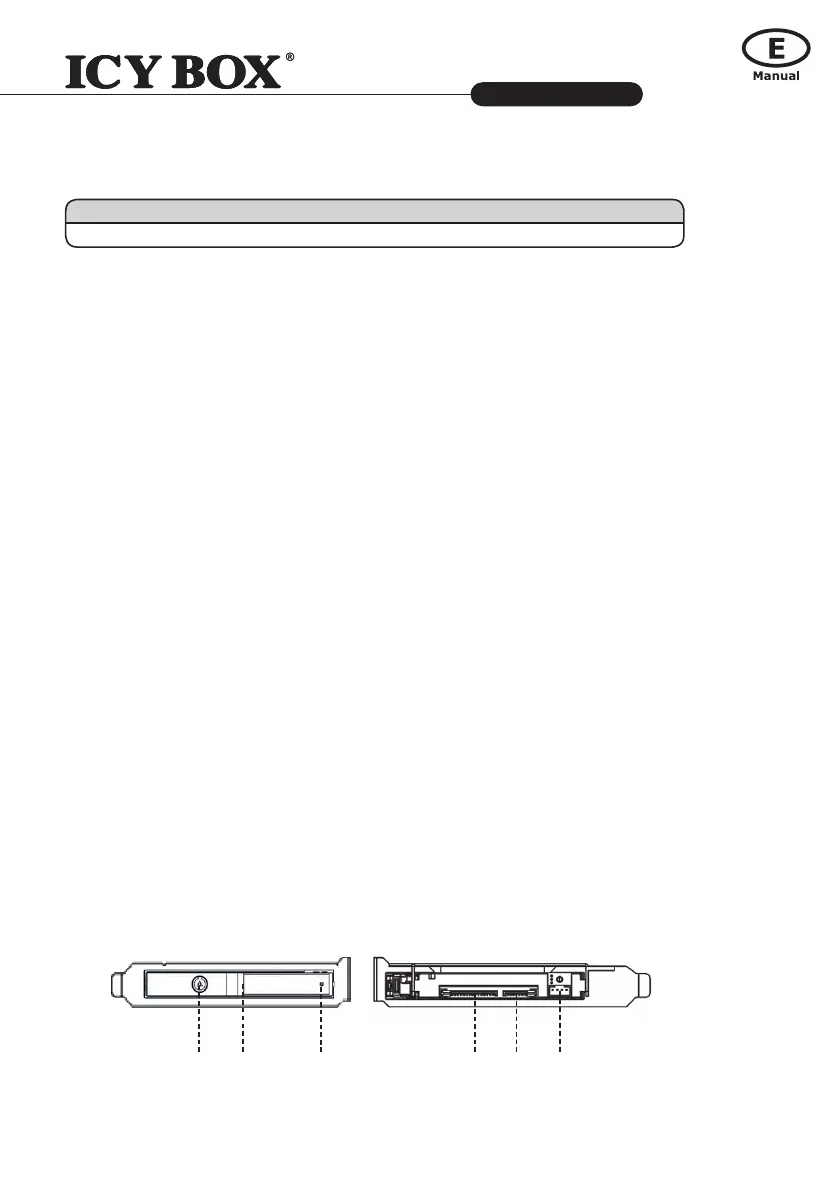

5. Front Panel and Rear Panel
1. Key lock 1. SATA power connector (15P)
2. HDD front panel 2. SATA data connector (7P)
3. HDD LED indicator 3. Access LED connector (4P)
1 2 3 1 2 3
