Icy Box IB-555 Series User Manual

4
5bay Dual Channel SATA/SAS HDD Backplane
IB-555 Series
http://www.icybox.de
4
55
1. Model – HDD – Host Interface – Colour
2. Package Contents
1x IB-555SSK backplane, 8x case screw, 22x HDD screw, 2x key,
2 sets of access and HDD fail signal cable, 5x SATA cable, 1x manual
3. Key Features
• 5x 3.5" SATA or SAS HDD in 3x 5.25" bay
• 2x host connector (dual channel) for each SAS HDD
• Hard disk capacity not limited
• SATA host interface 3.0 Gbit/s
• HDD tray with key lock
• LED for power and HDD access
• Visual LED and audio alarm for fan failure & over-heat
• Access-LED signal from HDD or host selectable
• 80x80 mm cooling fan toolless removable
• Audio alarm mute switch button on the front
• Alarm temperature adjustable (45°C, 55°C, 75°C)
• Plug & play and hot swap
• Support all OS systems

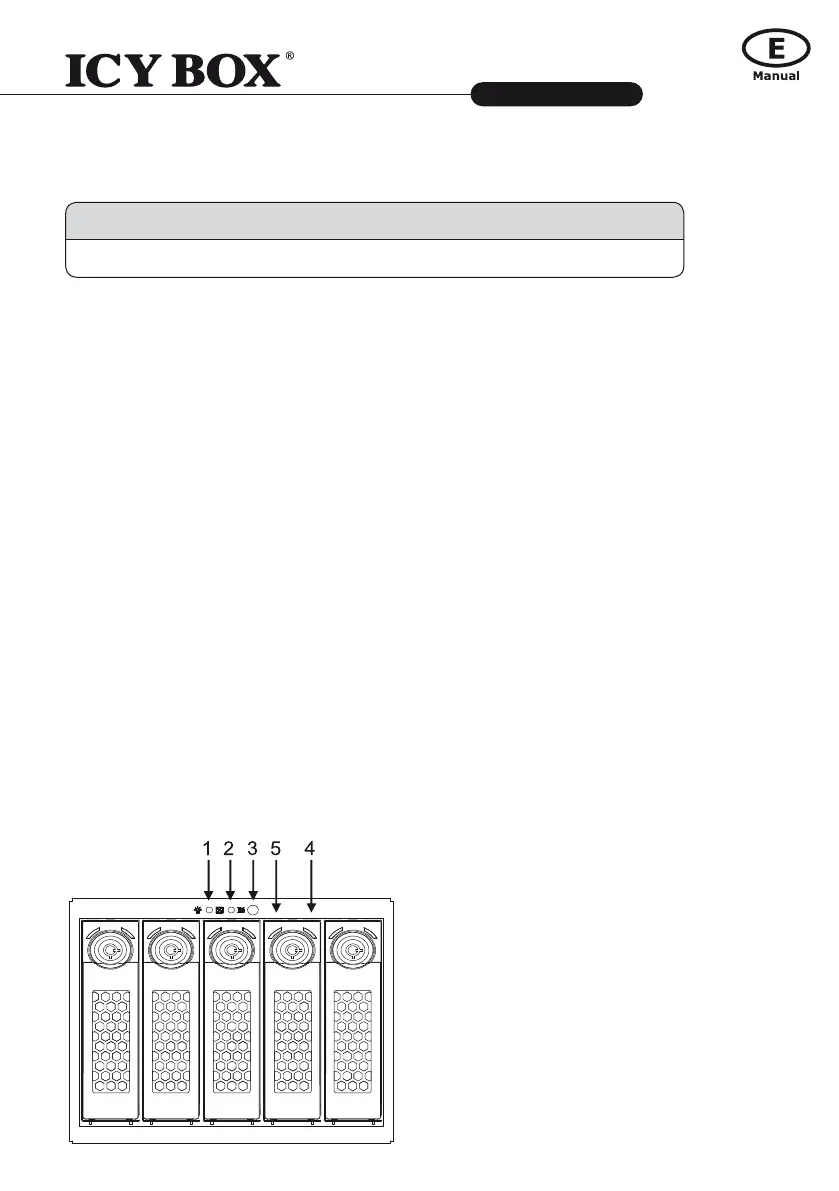

4. Front Panel and Tray Lock
Model HDD Host Interface Colour
IB-555SSK 5x SATA/SAS 10x SATA Black
1. Front-LED-1 for Power (blue)
2. Front-LED-2 for fan failure
and over heating (red)
3. Alarm mute button
4. Tray-LED-1 for HDD-presence (blue)
5. Tray-LED-2 for access (green)
and HDD Failure (red)

Icy Box IB-555 Series Specifications

General

Brand	Icy Box
Model	IB-555 Series
Category	Computer Hardware
Language	English
