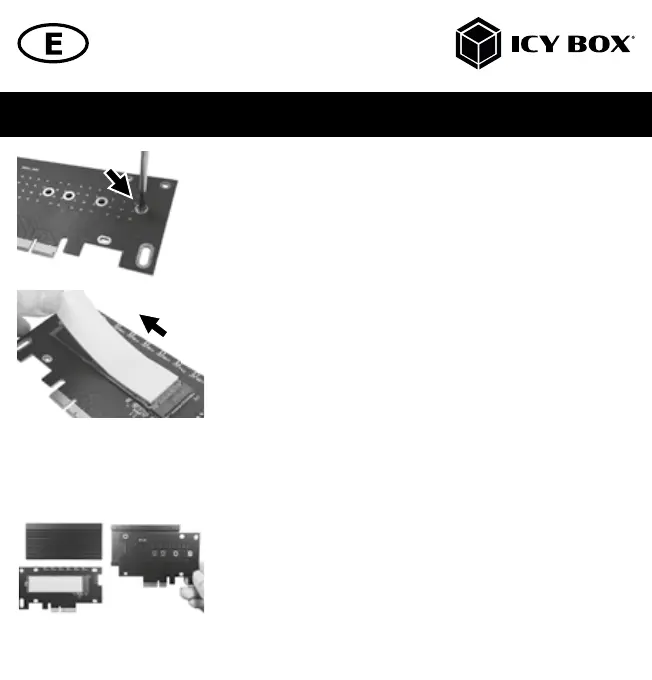

Push the M.2 SSD down and secure it from below with the silver
pan head screw (H) at the rear end of the M.2 SSD.
Take the thermal pad and remove the protective film on both
sides and attach it to the M.2 SSD The thermal pad will adhere
automatically.
Hint: When using a short M.2 SSD 22x30/42 or 60, the
thermal pad can be shortened to the required length with
scissors before removing the protective film.
Hint: Avoid dust and dirt between the M.2 SSD and the
thermal pad and apply the thermal pad immediately after
removing the protective film
Place the heat sink (B) onto the PCIe extension card.
Make sure that it is correctly aligned.
v
2.
3.
4.
