INSTALL GUIDE
Version française disponible en ligne au www.idatalink.com
Doorlock Interface
chrysler / dodge / Jeep
Page 10 of 11 ADS-DLSL-CH1 20071214
www.idatalink.com
For technical assistance, contact your distributor or visit www.idatalink.com/support © 2007 ADS Inc.
NOTICE:
The manufacturer will accept no responsibility for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself
or to the installed device. This device must be installed by a certified technician. This guide has been written for properly trained technicians; a certain level of skill &
knowledge is therefore assumed. Please review the Installation Guide carefully before beginning any work.
www.idatalink.com
For technical assistance, contact your distributor or visit www.idatalink.com/support © 2007 ADS Inc.
1
2
Insert the vehicle key into the ignition.
Turn the ignition to the “ON” position.
Wait for the LED to illuminate green
for 2 SECONDS.
Programming is complete.
VEHICLE PROGRAMMING
ON
LED “ON” 2 SEC
1
2
NOTE
MODE SELECTION
1X 2X
PRESS
TO TOGGLE
BETWEEN MODES
PRESS + HOLD
Should you wish to change the installation mode,
follow the “Factory Reset” instructions as detailed below.
Press and release the programming button to select installation mode.
To register selection,
Hold the programming button down
until the LED displays a solid green light.
OR
IDATALINK MODE
STANDARD MODE
LED flashes once
LED flashes twice
REMOTE STARTER
with Data Port
REMOTE STARTER
without Data Port
1
2

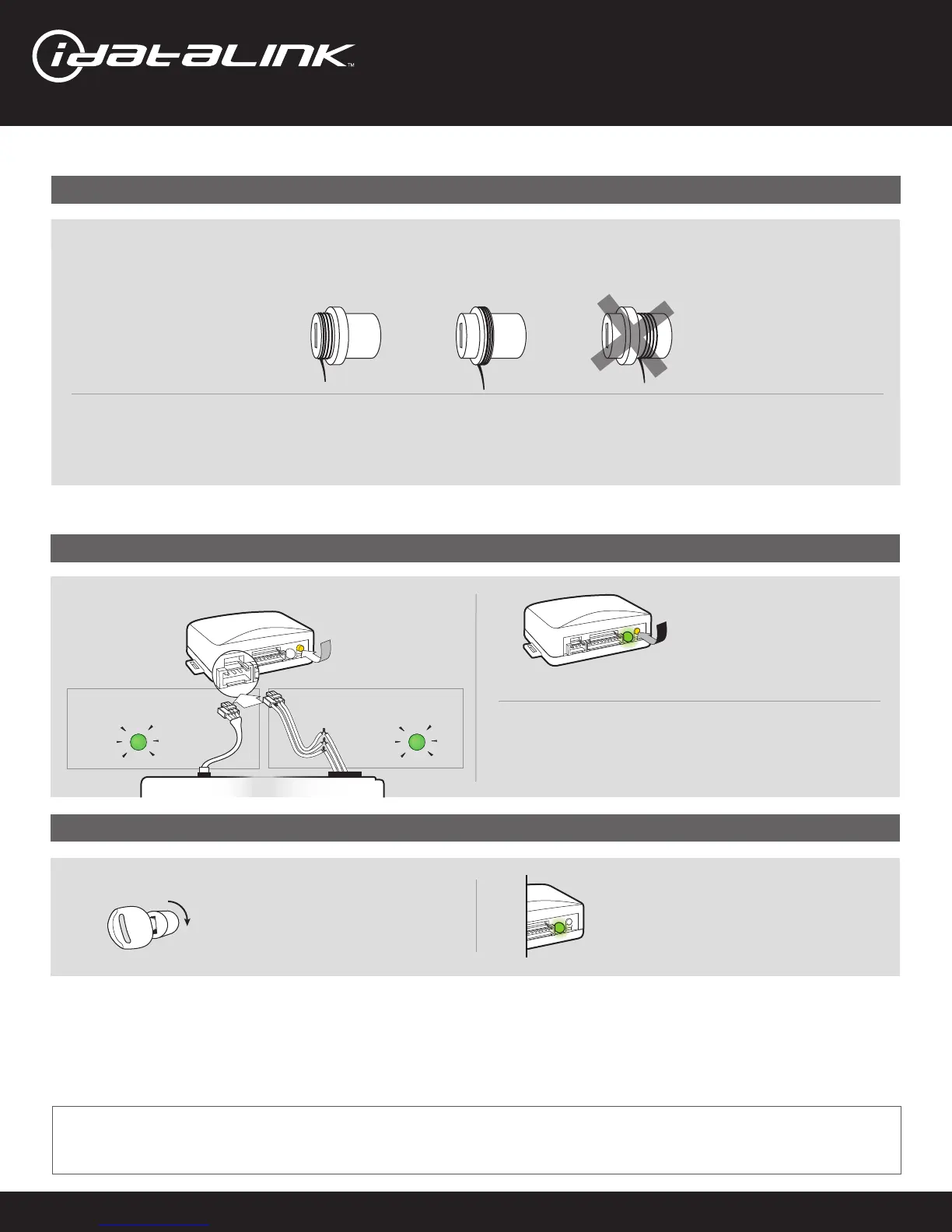

Wrap the loop tightly around the key cylinder 3 to 5 times.
Slide the plastic retainer up towards the cylinder to tighten the noose.
NOTE: It is preferable to place the antenna loop on top or in front of the OEM immobilizer coil.
Connect antenna to the blue connector on iDatalink Module.
NOTE: KEEP TRANSPONDER AWAY FROM ANY METAL SOURCE OR WIRING.
ANTENNA INSTALLATION INSTRUCTIONS
OR NOT
