www.idatalink.com
For technical assistance, contact your distributor or visit www.idatalink.com/support © 2007 ADS Inc.
INSTALL GUIDE
Version française disponible en ligne au www.idatalink.com
Doorlock Interface
chrysler / dodge / Jeep
Page 3 of 11 ADS-DLSL-CH1 20071214
www.idatalink.com
For technical assistance, contact your distributor or visit www.idatalink.com/support © 2007 ADS Inc.
NOTICE:
The manufacturer will accept no responsibility for any electrical damage resulting from improper installation of this product, be that either damage to the vehicle itself
or to the installed device. This device must be installed by a certified technician. This guide has been written for properly trained technicians; a certain level of skill &
knowledge is therefore assumed. Please review the Installation Guide carefully before beginning any work.
LOCK/ARM (-) INPUT - GREEN/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) WHITE
(NC) BLACK/WHITE
DOOR & TRUNK STATUS (-) OUTPUT - GREEN
TACH OUTPUT (AC) - PURPLE/WHITE
BROWN/RED (NC)
BROWN/YELLOW (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE - DATA (J1850)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
YELLOW/BLACK (NC)
YELLOW/RED (NC)
YELLOW (NC)
GROUND-OUTPUT WHEN RUNNING (-) - BLUE/WHITE
(NC) WHITE
GROUND - BLACK
12V - RED
CONNECT TO PIN #2 OF OBDII
CONNECTOR LOCATED UNDER
DRIVER SIDE DASHBOARD
***** OPTIONAL *****
TRANSPONDER LOOP
ADS-RNG-C1 IS REQUIRED
FOR TRANSPONDER BYPASS
APPLICATION.
CONNECT EITHER
IDATALINK OR
STANDARD WIRING
IDATALINK
IDATALINK (RS232) PORT
REQUIRED ON REMOTE STARTER.
IF THE PORT IS UNAVAILABLE
USE STANDARD WIRING METHOD.
LEGEND
Wiring connections not required
when installed in iDataLink mode
REMOTE
STARTER
OR
SECURITY
SYSTEM
OR
KEYLESS
ENTRY

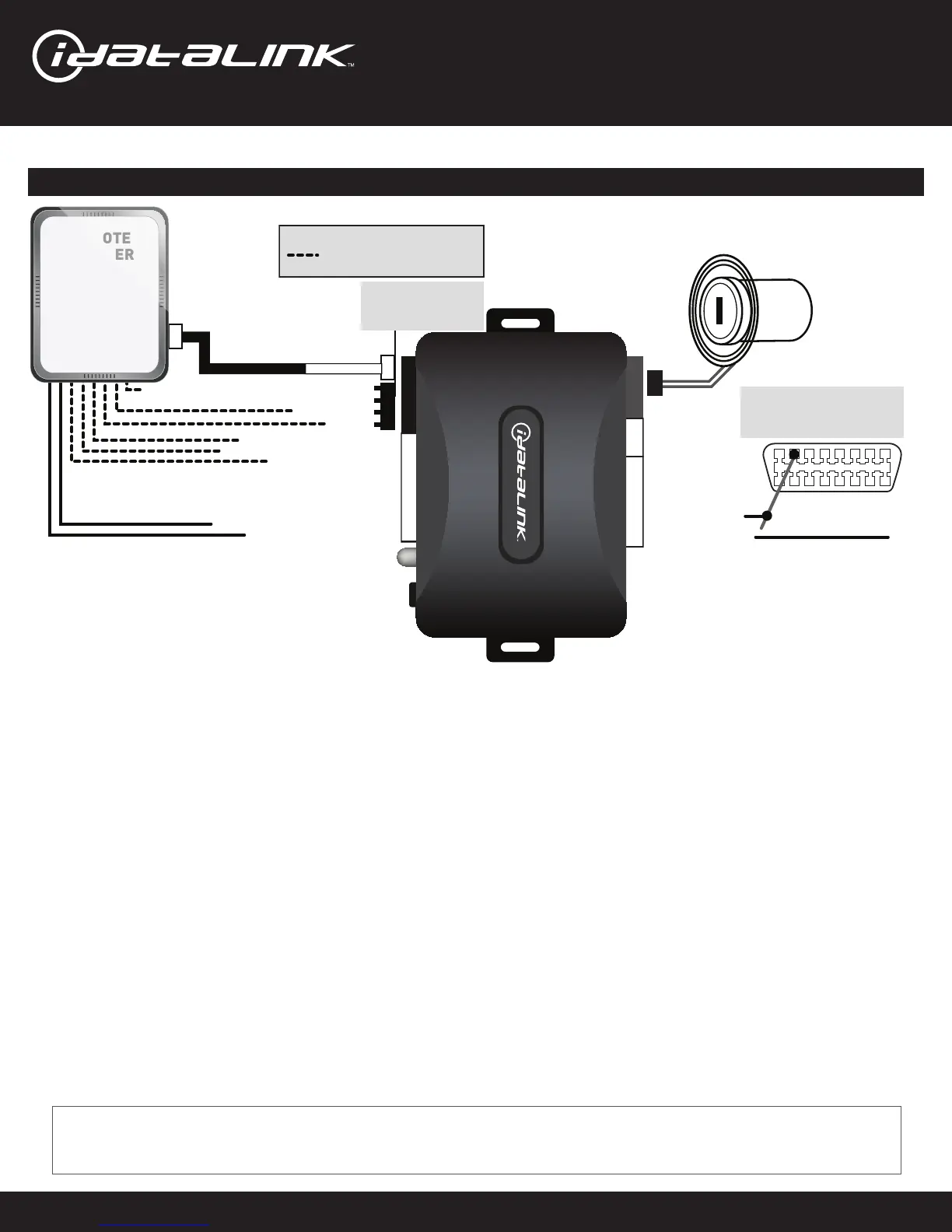

TYPE 1 WIRING DIAGRAM
