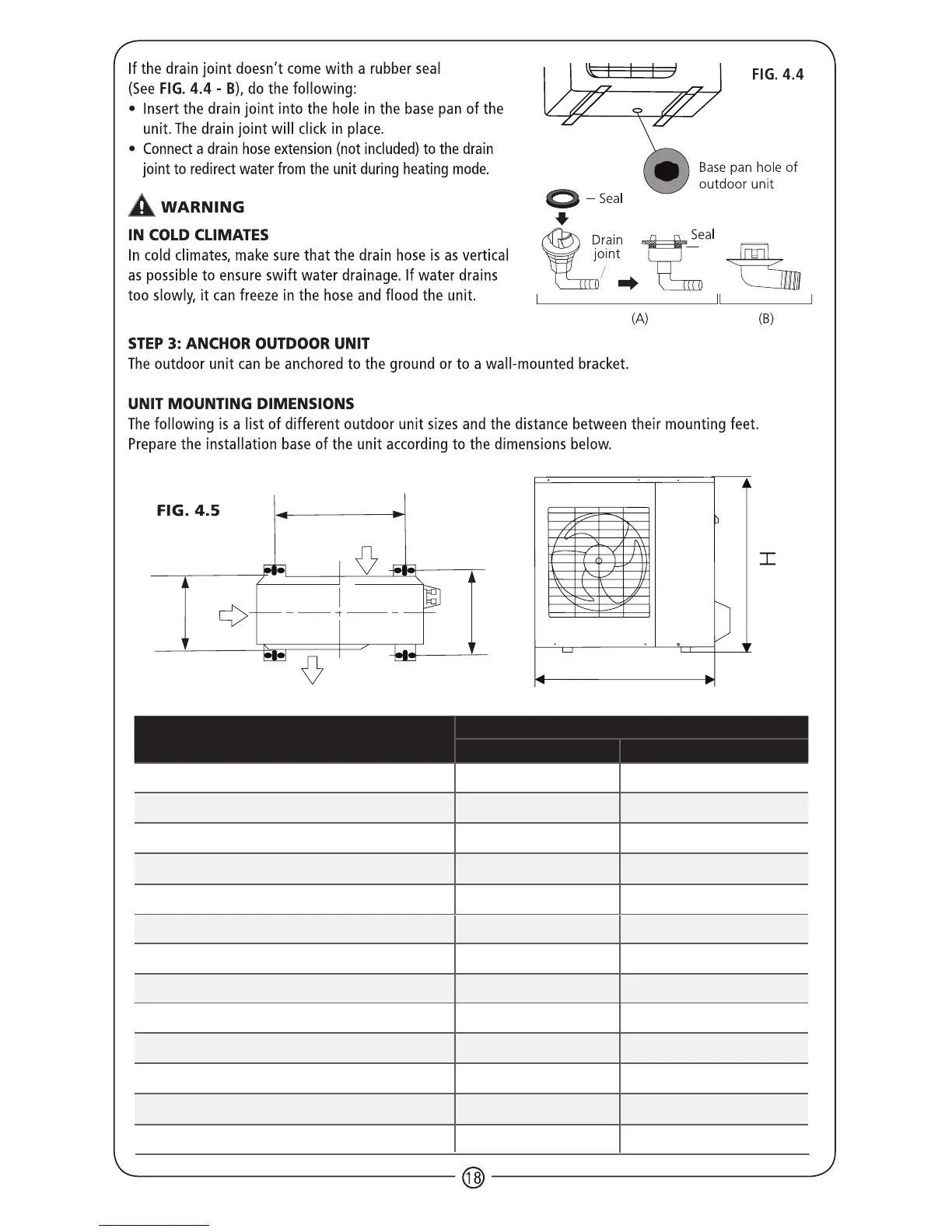

Ideal Air 700021 - Page 18

W
A
B
D
Air inlet
Air outlet
Air inlet
Outdoor Unit Dimensions (mm/in)
W x H x D
Mounting Dimensions
Distance A (mm/in) Distance B (mm/in)
681x434x285 (26.8”x17”x11.2”) 460 (18.10”) 292 (11.49”)
700x550x270 (27.5”x21.6”x10.62”) 450 (17.7”) 260 (10.24”)
780x540x250 (30.7”x21.25”x9.85”) 549 (21.6”) 276 (10.85”)
845x700x320 (33.25”x27.5”x12.6”) 560 (22”) 335 (13.2”)
810x558x310 (31.9”x22”x12.2”) 549 (21.6”) 325 (12.8”)
900x860x315 (35.4”x33.85”x12.4”) 590 (23.2”)
333 (13.1”)
945x810x395 (37.2”x31.9”x15.55”) 640 (25.2”)
405 (15.95”)
946x810x420 (37.21”x31.9”x16.53”)
673 (26.5”) 403 (15.87”)
946x810x410 (37.21”x31.9”x16.14”)
673 (26.5”) 403 (15.87”)
845x702x363 (33.25”x27.63”x14.29”)
540 (21.26”)
350 (13.8”)
700x550x275 (27.5”x21.6”x10.82”) 450 (17.7”) 260 (10.24”)
770x555x300 (30.3”x21.85”x11.81”) 487 (19.2”) 298 (11.73”)
800x554x333 (31.5”x21.8”x13.1”) 514 (20.24”) 340 (13.39”)
