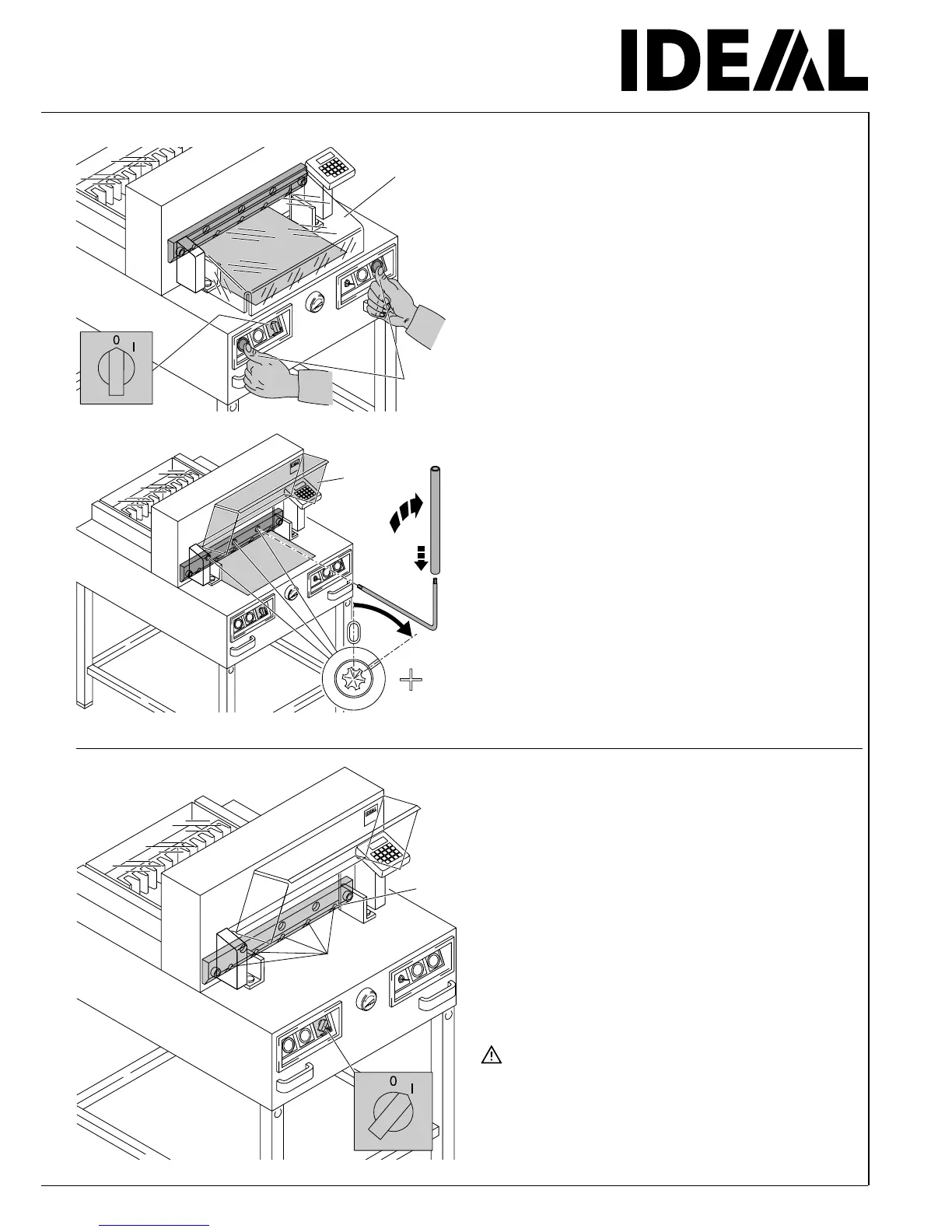

Blade and cutting stick replacement
Close the safety guard (1.) Lower the blade by
1.
pressing both cutting buttons (2.). Keep one
button pressed and turn off the main switch (3.).
3.
2.
4.
A
5.
A
2.
Open the safety guard (4.). With the special
wrench (B) the 3 eccentrics should be screwed
down (5.)until the paper is cut along the
entire length of the blade (The blade must
remain parallel, not too deep into cutting stick).
Only IDEAL 4810-95 and
IDEAL 4850-95/EP
Tighten the blade screws (A) on the right hand
side.
Turn main switch to position "I" (1.). Blade will
return to upper position. Tighten the blade
screws (2.) firmly.
Warning by IDEAL 4810-95
Do not turn main switch to position
"0" whilst blade is moving upwards! The
clamp must always overlap the blade!
(see page 38).
Danger! Risk of injury!
1.
