AC Voltage
Range Resolution Max Accuracy
Display
2000mV 1mV 1999 ±(1.2%+3)
200V 0.1V 199.9 ±(1.2%+3)
750V 1V 750 ±(2%+5)
Frequency response: 50Hz - 500Hz; ±(2%+5) 500Hz - 1KHz;
50Hz - 500Hz on 600V and 750V ranges.
True RMS Sensing: (61-704 only)
To Measure AC Current:
1. Set the rotary switch to the appropriate AAC range.
2. With the jaws closed, separate one wire from a bundle using
the long fixed jaw.
3. Slide the wire to the corner where the two jaws meet, then
open the jaws to let it in.
4. Measure the current in only one wire at a time.
AC & DC Volts
DC Voltage
Range Resolution Max Accuracy
Display
2000mV 1mV 1999 ±(0.5%+1)
200V 0.1V 199.9 ±(0.5%+1)
1000V 1V 1000 ±(0.5%+1)

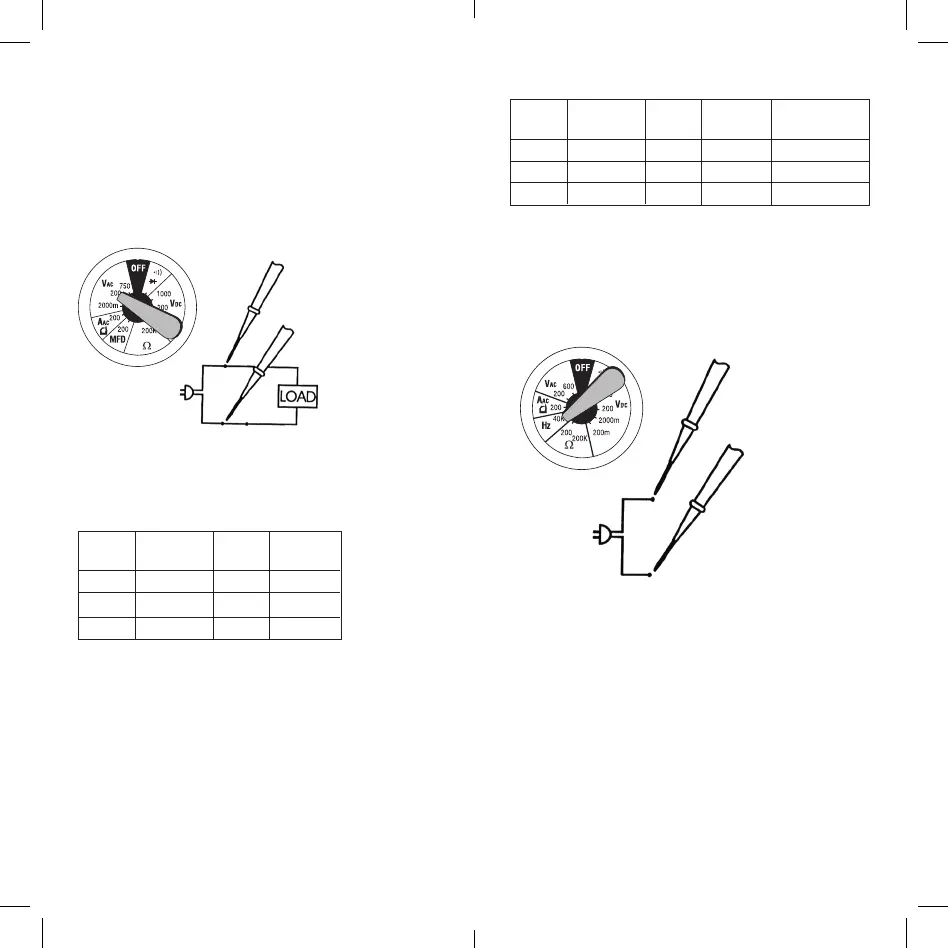

To Measure Voltage:
5. Plug the black test lead into the COM port and the red test
lead into the + port.
6. Set the rotary switch to appropriate VAC or VDC range.
7. Connect the meter in parallel with the load or circuit.
8. Measure the voltage
Frequency
To Measure Frequency:
1. Plug the black test lead into the COM port and the red test
lead into the + port.
2. Set the rotary switch to the HZ position.
3. Connect the meter in parallel with the load or circuit.
4. Meter is auto-ranging, and will select 2k 20k or 40k range.
5. Measure the frequency.
