10
- Installation & Servicing
INSTALLATION
6
UNPACKING
5
PACKAGING REMOVAL
The boiler is supplied fully assembled in one
pack. When unpacking the boiler check the
contents against the list below. Do not dispose of
the packaging until all contents are accounted for,
as some parts are held within the cardboard
packing pieces.

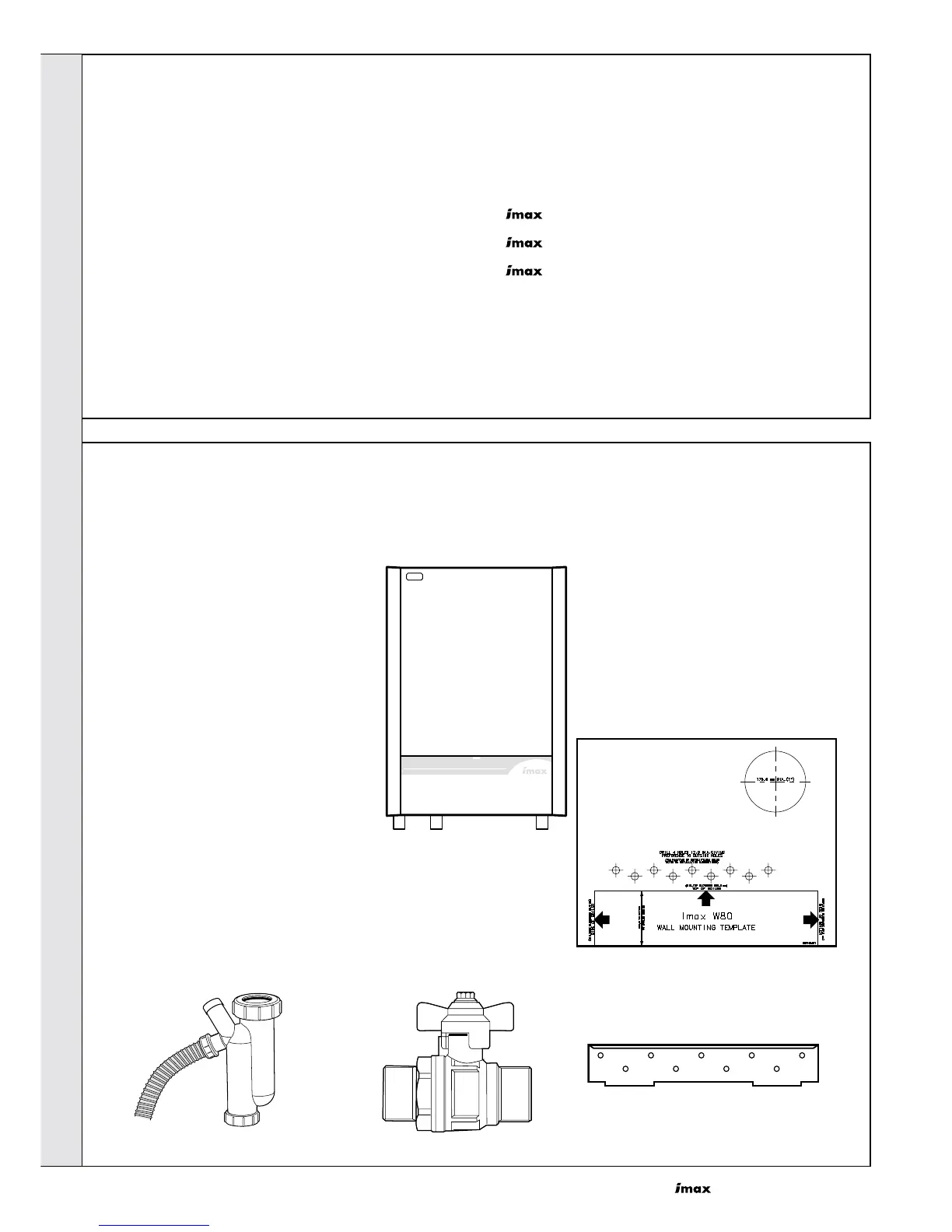

Pack Contents
• Fully assembled boiler
• Installation & Servicing Instructions
• User Instructions
• Log Book
• Wall mounting bracket
• Wall mounting template
• Condensate Trap
• Condensate Flexible Hose
• M10 x 70 Hex Head Coach Screws - 5 off
• M10 Wall Plug - 5 off
• Gas cock
• Cable Clips - 4 off
PUSH
ima5404
ima5405
• After following the instructions on the box, the boiler should
be laying on its back with the straps removed.
• Carefully read these installation instructions before
proceeding.
• Remove the outer packing sleeve.
• Remove the protective cardboard sheet from the front of the
boiler.
• Remove the packing piece from the top of the boiler.•
Check the contents against the list in Frame 6 'Unpacking'.
Note: some items are contained within the top packing
piece.
• The boiler may now be stood on its base, with the cardboard
bottom packing piece still in place to protect the connections.
Due care should be taken when standing up the boilers, with
respect to their weights, see below
W45 = 87kg
W60 = 88kg
W80 = 101kg
• The cardboard bottom packing piece may be removed after
hanging the boiler on the wall.
ima5430
DATUM 'X'
DATUM 'Y'
INSTALLATION
