Installation & Servicing
SERVICING
SERVICING
8
4
3
58

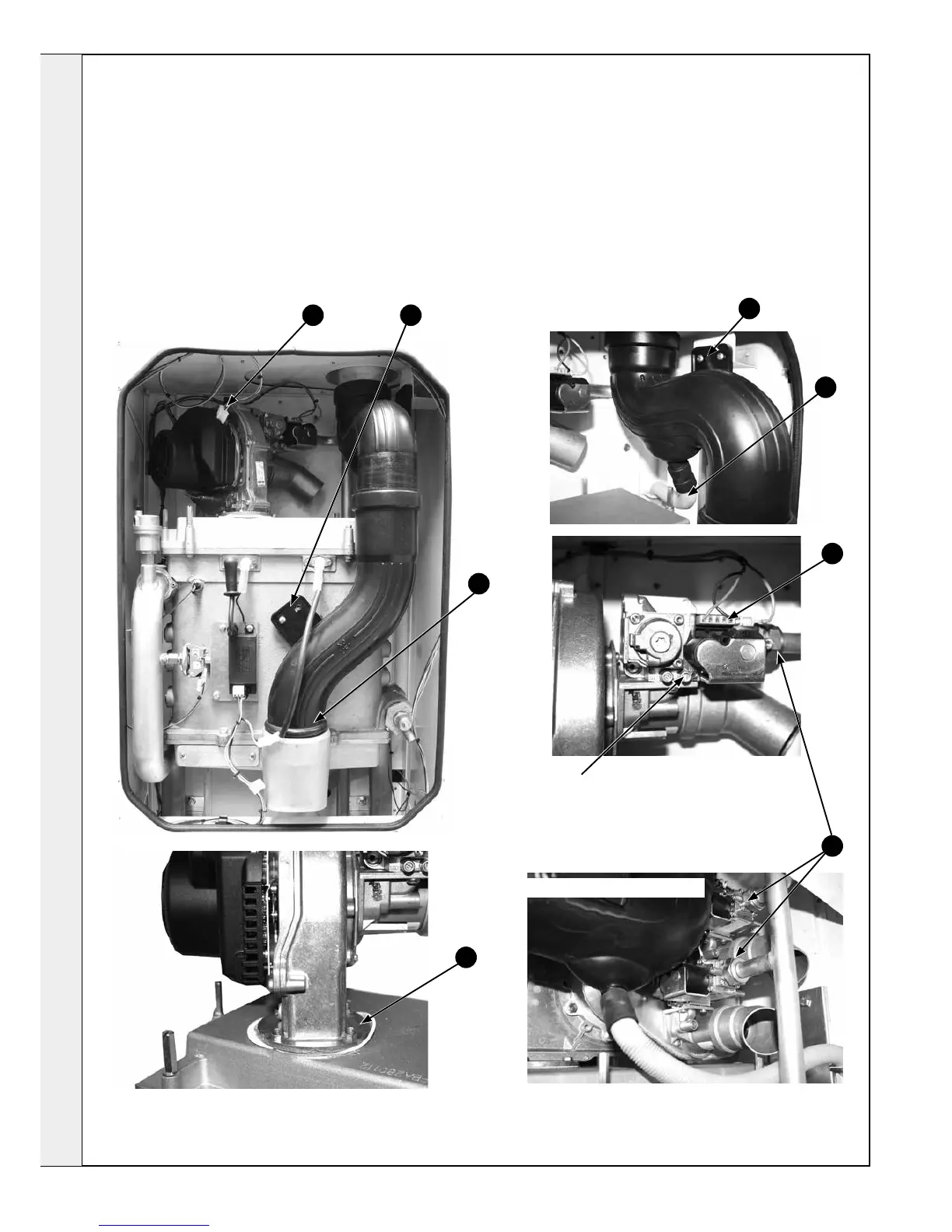

REMOVAL OF FAN AND GAS VALVE ASSEMBLY
1. Refer to Frame 55.
2. Remove the upper front panel, Refer to Frame 57.
3. Remove the two screws retaining the ue tube to the
heat exchanger.
4. Lift the lower section of ue upwards to disengage
from the sump then twist outwards and pull down to
completely remove..
5. Disconnect condensate pipe from upper ue elbow.
6. Remove the ue tube elbow xing screws and remove
elbow by pulling downwards.
7. Disconnect the electrical connections from the gas valve/s.
8. Disconnect the electrical connections from the fan.
9. Undo the gas valve union nut/nuts and retain the bre
washer/s.
10. Remove the four nuts/washers (or screws depending upon
boiler size) retaining the fan assembly and remove the fan
assembly.
11. Inspect & clean as necessary.
12. Re-assemble in reverse order replacing all gaskets.
6
5
7
9
150 Model with Dual Gas Valves
Inlet Gas Pressure Test Point for 40, 60 80 & 150 models
For 100 & 120 models the inlet gas pressure test point can be
found on the inlet gas manifold
10
