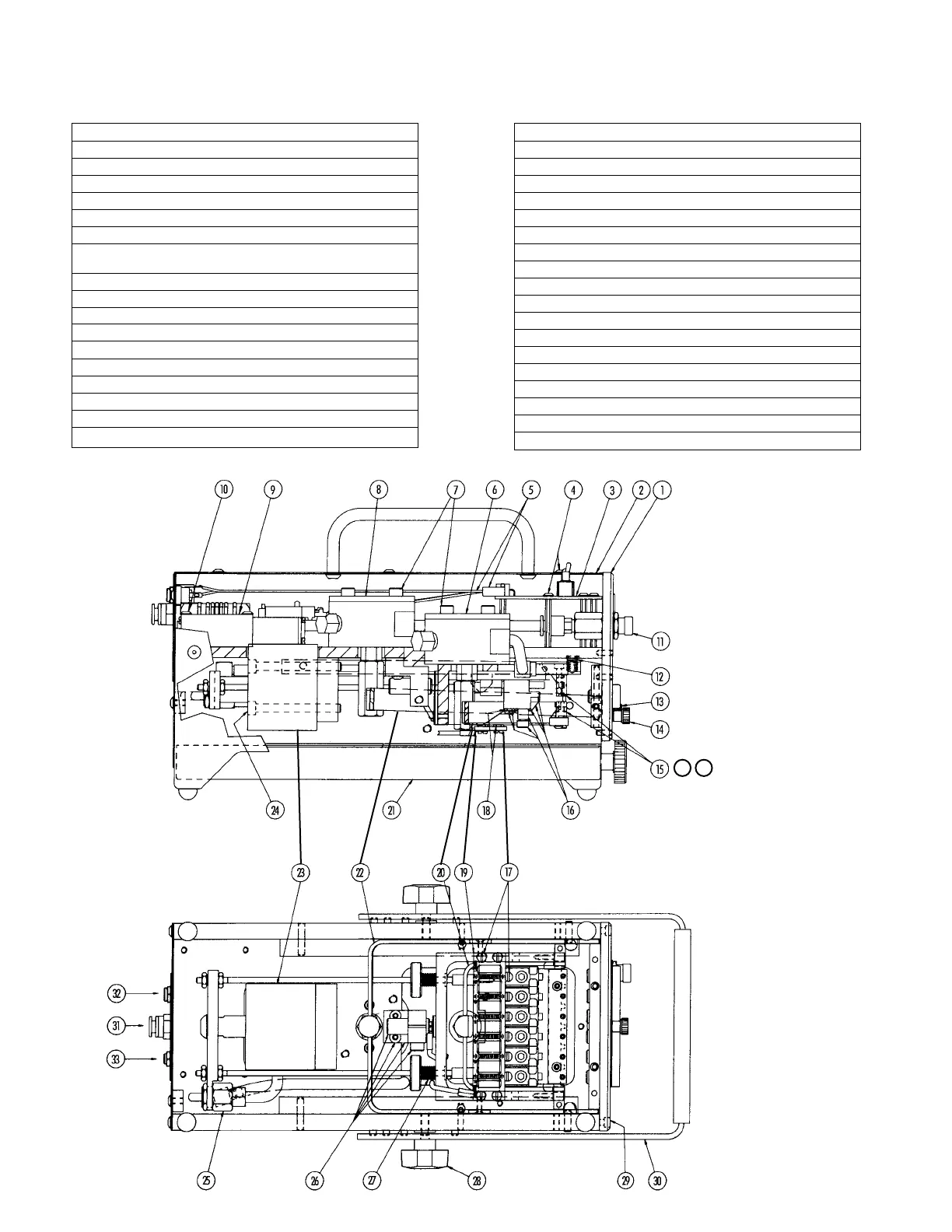

IDEAL Stripmaster 950 - Page 13

13
ITEM REQ NAME PART NO.
1 1 FRONT PLATE ASSEMBLY IA1819
2 1 TOP PLATE ASSEMBLY LB1523RP
3 1 CIRCUIT BOARD ASSEMBLY K-7109
4 14 SCREW #6-32 X .25 BHCS 115.002
5 1 WIRE HARNESS IA1892
6 1 BLADE CYLINDER ASSEMBLY K-7124RP
7 4 SCREW 113.095
#10-32 X 1.50 SHCS
8 1 CLAMP CYLINDER ASSEMBLY K-6863RP
9 2 SOLENOID VALVE 1532.007
10 4 SCREW #6-32 X 1.00 BHCS 115.028
11 1 AIR SWITCH SLUG BLAST LB1524
12 2 SPRING LB1513
13 1 BUSHING RETAINING PLATE K-6940
14 1 RETAINING SCREW LB1525
15 1 BLADE HOLDER H-2472
16 6 TRIGGER ASSEMBLY LB1526RP
17 5 SCREW #4-40 X .25 PH NYLON 358.033
ITEM REQ NAME PART NO.
18 4 WASHER #4 NYLON 637.006
19 1 CONTACT PLATE LB1504
20 1 CUT YOKE K-6806
21 1 SLUG TRAY ASSEMBLY K-7112RP
22 1 YOKE CLAMP K-6800
23 1 STRIP CYLINDER ASSEMBLY K-6864RP
24 2 SCREW #10-32 X 2.00 SHCS 113.096
25 1 AIR BLAST VALVE ASSEMBLY K-7153RP
26 1 BASKET STOP ASSEMBLY LB1527RP
27 2 SPRING LB1514
28 2 KNOB 341.016
29 4 SCREW #6-32 X .38 SHCS 113.100
30 1 HANDLE LB1528RP
31 1 AIR HOSE K-6865
32 1 PLUG-IN TRANSFORMER K-7156
BLADE MOUNTING SCREWS 115.010
BLADE MOUNTING WASHERS 633.051
NAMEPLATE HOLDER LA-2675
NOT SHOWN
NOT SHOWN
NOT SHOWN
NOT SHOWN
MANUAL SLUG BLAST
34
35
Stripmaster
®
Model 950™
