GT3D Series
Timers
824
www.idec.com
Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal Blocks
Circuit Breakers

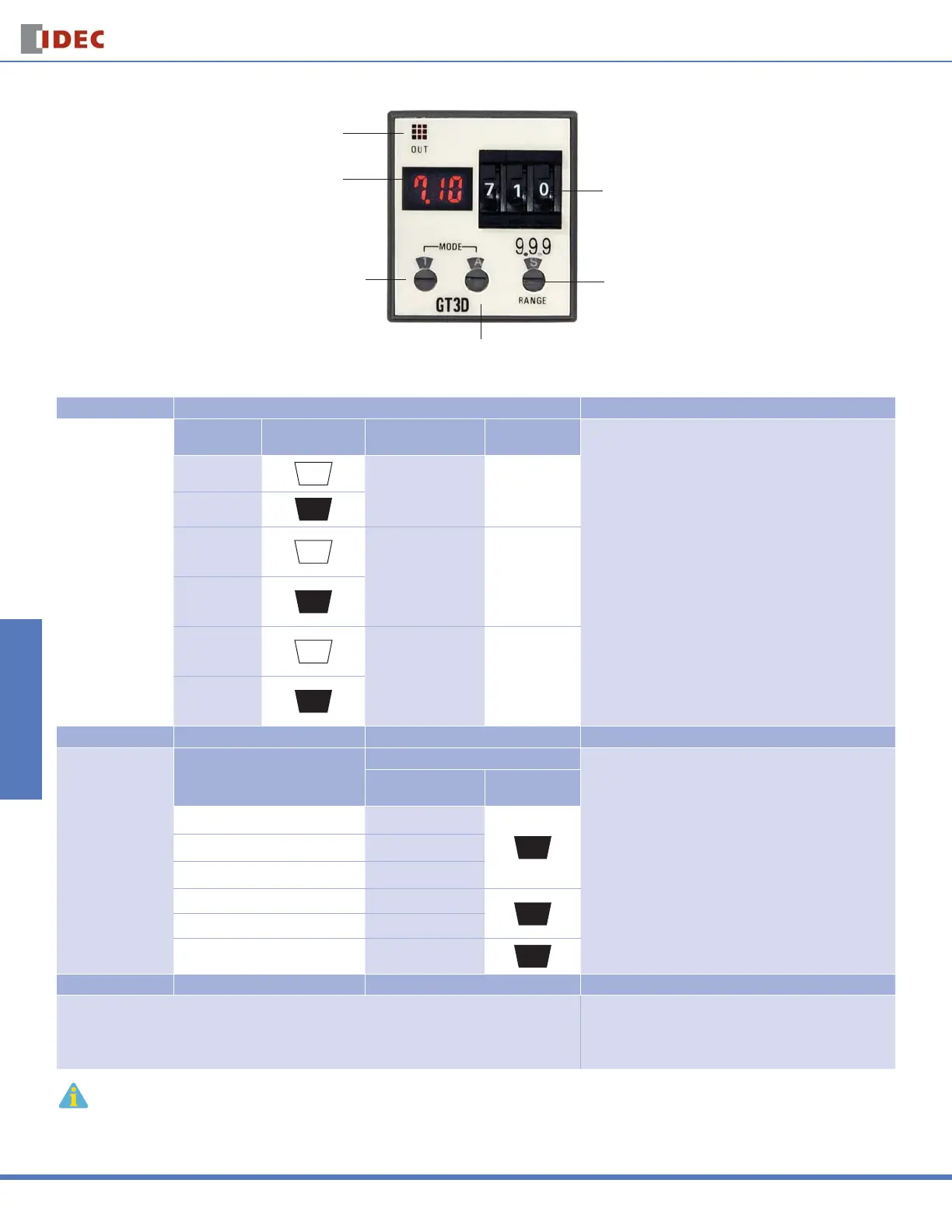

Instructions: Setting GT3D-4 Timers
j Operation Mode Selector/
Indication Mode Selector
Timed OUT Indicator
m Time Setting
Digital Switch
k Operation Mode Selector
A, B, C, D, E, F
Digital Time Display
(LCD backlit with red LED)
l Time Range Selector
9.99S – 99.9H
Step 1 Desired Mode/Selection Remarks
Select the desired time
display and operation
modes.
Time Display
Mode
j Indicator
Mode Selector
Operation Mode
k Operation
Mode Selector
1. Use a fl at screwdriver to set the selectors. Since selectors do
not turn all the way around, both clockwise and counterclockwise
rotation is necessary.
2. The j Indicator Mode Selector determines whether the Digital
Time Display shows the time elapsed or time remaining. The k
Operation Mode Selector determines the desired operation mode.
Decide which display and mode is desired; then use these two
selectorsjk to set the operation mode.
3. When using the indicator mode setting “1,” the k Operation
Mode Selector has two blank modes which are not intended for
use. When using mode setting “1,” always have the operation
mode selector set to A, B, C, or D.
Time elapsed
1
ON-delay 1
Interval 1
Cycle 1
D: Cycle 3
A
B
C
D
Time remaining
1
Time elapsed
2
ON-delay 2
Cycle 2
Signal ON/OFF-delay 2
Signal OFF-delay 1
Interval 2
One-shot cycle
A
B
C
D
E
F
Time remaining
2
Time elapsed
3
Signal ON/OFF-delay 2
Signal OFF-delay 2
One-shot 1
One-shot ON-delay
One-shot 2
Signal ON/OFF-delay 3
A
B
C
D
E
F
Time remaining
3
Step 2 Desired Operation Selection Remarks
Select a time range
that contains the
desired period of time.
Base Time Ranges
l Time Range Selector
1. The
l Time Range Selector controls both the decimal point
indicator (9.99, 99.9, 999) and the time increment indicators S
(seconds), M (minutes), and H (hours).
2. Chose which base time range contains the targeted timer set-
ting. Then use the l Time Range Selector to set the decimal point
indicator and time increment indicator to its corresponding pair of
settings.
3. Since these confi gurations offer a complete range of settings
from 0.01 seconds to 99.9 hours, the setting of 9.99 for minutes
and the 9.99 and 999 settings for hours are not listed and should
not be used.
Decimal Point
Indicator
Time Increment
Indicator
0.01 seconds to 9.99 seconds 9.99
S
0.1 seconds to 99.9 seconds 99.9
1 second to 999 seconds 999
0.1 minutes to 99.9 minutes 99.9
M
1 minute to 999 minutes 999
0.1 hours to 99.9 hours 99.9
H
Step 3 Desired Operation Selection Remarks
Set the precise period of time desired by using the m Time Setting Digital Switch.
Use the m Time Setting Digital Switch to set the desired
period of time. It is important to remember that the setting
of the l Time Range Selector determines the units of time
measurement as well as the implied decimal point location.
It is important to remember that the l Time Range Selector not only selects the time range but also infl uences the interpretation of the Digital Time Display.
Changing the l Time Range Selector setting changes the units of time measurement (seconds, minutes, hours) as well as the decimal point location.
