2: P RODUCT S PECIFICATIONS
2-64 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

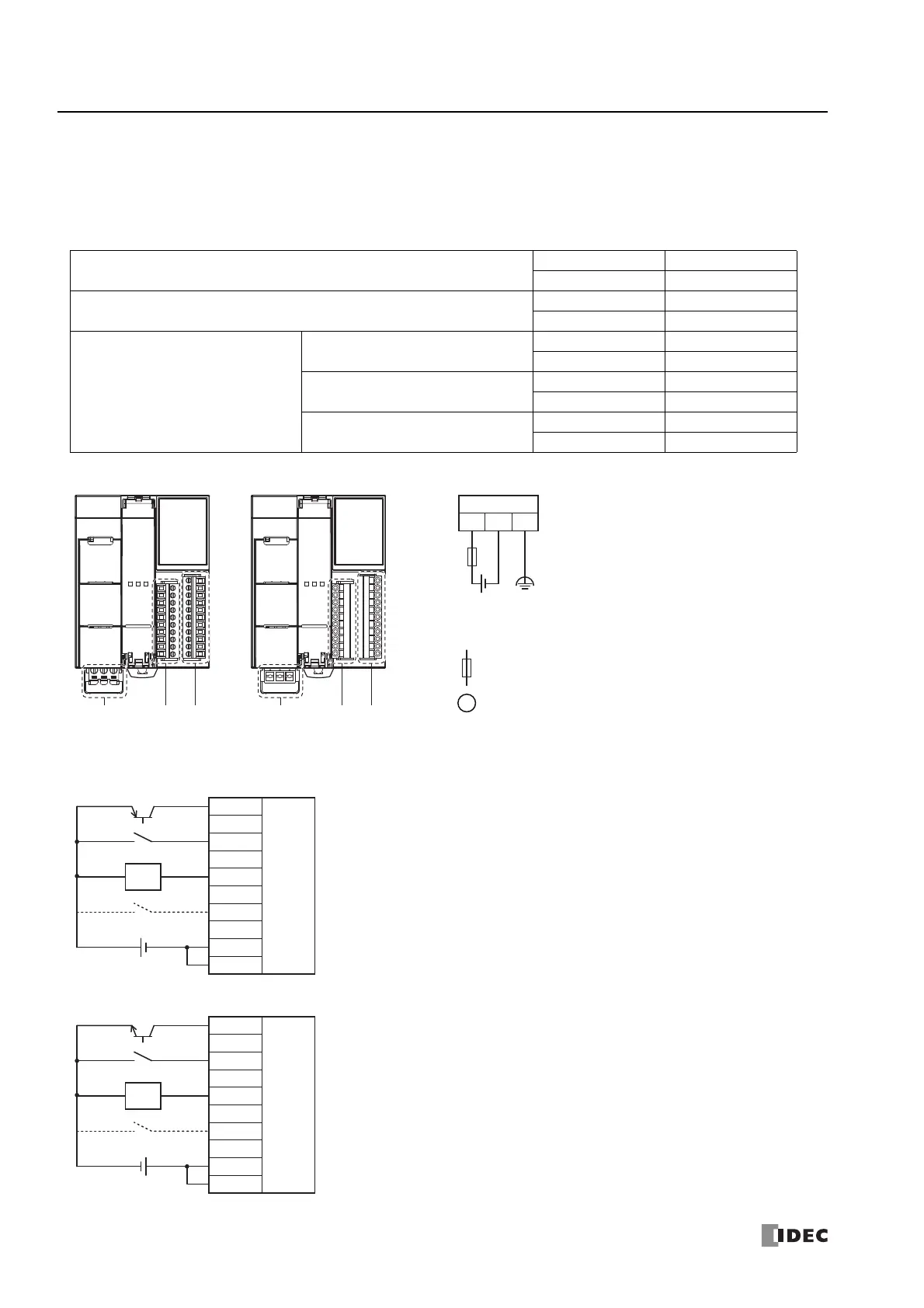

Terminal Arrangement and Wiring Examples
■ 24V DC Power Type
Applicable connector
(2) Input terminals
Plus 16-I/O type: Screw fastened type:
Push-in type:
FC6A-C16R1CEE, FC6A-D16K1CEE, FC6A-D16P1CEE
FC6A-D16R4CEE, FC6A-D16K4CEE, FC6A-D16P4CEE
(1) Power supply terminals
Screw fastened type FC6A-PMTD03PN02
Push-in type FC6A-PMSDC03PN02
(2) Input terminals
Screw fastened type FC6A-PMTCN10PN02
Push-in type FC6A-PMSCN10PN02
(3) Output terminals
Relay output
Screw fastened type FC6A-PMTCR11PN02
Push-in type FC6A-PMSCR11PN02
Transistor sink output
Screw fastened type FC6A-PMTCK11PN02
Push-in type FC6A-PMSCK11PN02
Transistor protection source output
Screw fastened type FC6A-PMTCP11PN02
Push-in type FC6A-PMSCP11PN02
Screw fastened type Push-in type
(1) Power supply terminals
DC Sink Input Wiring
DC Source Input Wiring
(3)(2)(1)
(3)(2)(1)
+24V - FE
24V DC Power Input
- +
External Power
24V DC
: Fuse
: Load
L
I0
I1
I2
I3
I4
I5
I6
I7
COM
COM
24V DC
Input
+ -
+ -
2-wire
Sensor
External Power
24V DC
I0
I1
I2
I3
I4
I5
I6
I7
COM
COM
24V DC
Input
+ -
+ -
2-wire
Sensor
External Power
24V DC
