Using an SD Memory Card
This section describes how to use an SD memory card.
Opening and Closing the SD Memory Card Cover
The following procedure describes how to open and close the SD memory card cover.
Opening the SD Memory Card Cover

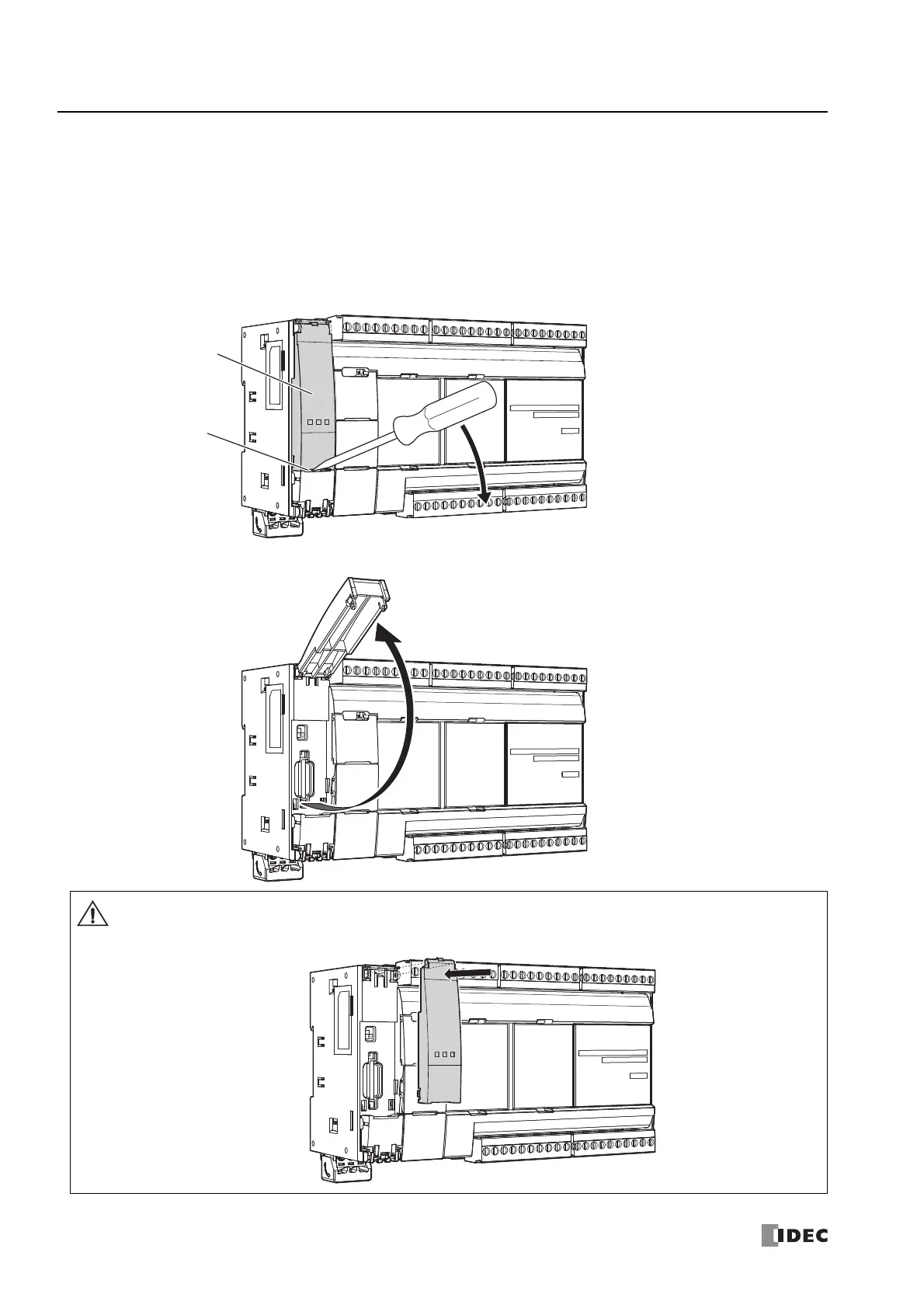

1. Insert a flathead screwdriver into the screwdriver slot on the SD memory card cover and slowly move the screwdriver in the
direction of the arrow to unlock the bottom lock.
2. Open the SD memory card cover in the direction of the arrow.
SD Memory Card Cover
Screwdriver Slot
Applying too much force to the SD memory card cover may cause it to fall off.
If this happens, make the SD memory card cover parallel with the CPU module as shown in the following figure, and then
slowly push on the part indicated by the arrow.
Caution
To Next Page
