2: P
RODUCT
S
PECIFICATIONS
2-80 FC6A S
ERIES
MICROS
MART
U
SER
’
S
M
ANUAL
FC9Y-B1722
Digital Output Module

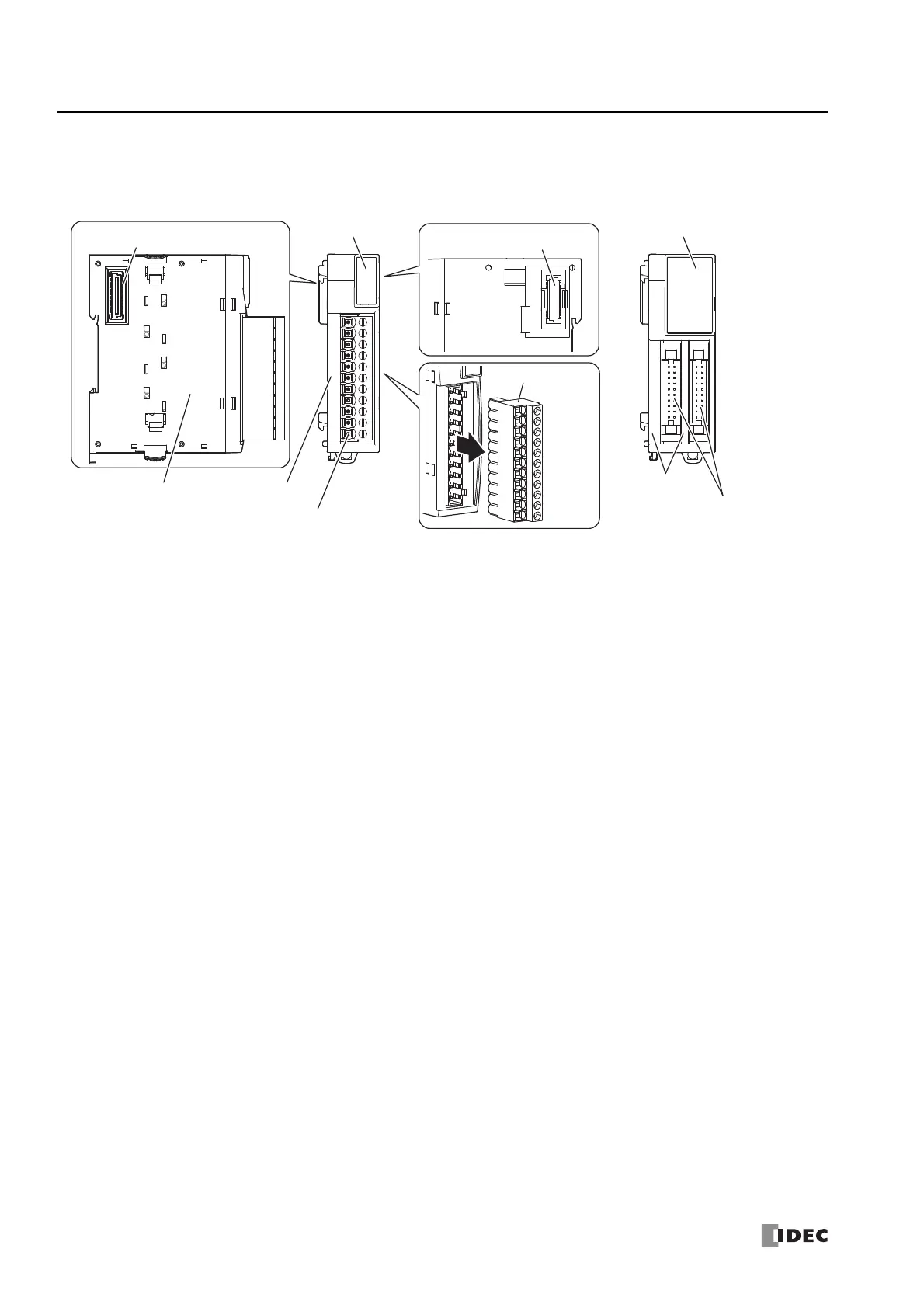

Parts Description
(1) Type Label
Indicates the digital output module type number and specifications.
(2) Output LEDs
These LEDs turn on when an output is on.
(3) Terminal Name Label
Indicates terminal numbers.
(4) Cable Terminal
Three types of terminals are separately available: the terminal block type (3.81 mm pitch), the terminal block type (5.08 mm
pitch), and the connector type.
(5) Expansion Connector
Connects the expansion modules and the CPU module.
Example: FC6A-R081 Example: FC6A-T32K3
(2) Output LEDs (2) Output LEDs
(5) Expansion Connector
(5) Expansion Connector
(3) Terminal Name Label
(4) Cable Terminal
(1) Type Label
(4) Cable Terminal
(4) Cable Terminals
(3) Terminal Name Labels
