FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-101
2: P RODUCT S PECIFICATIONS

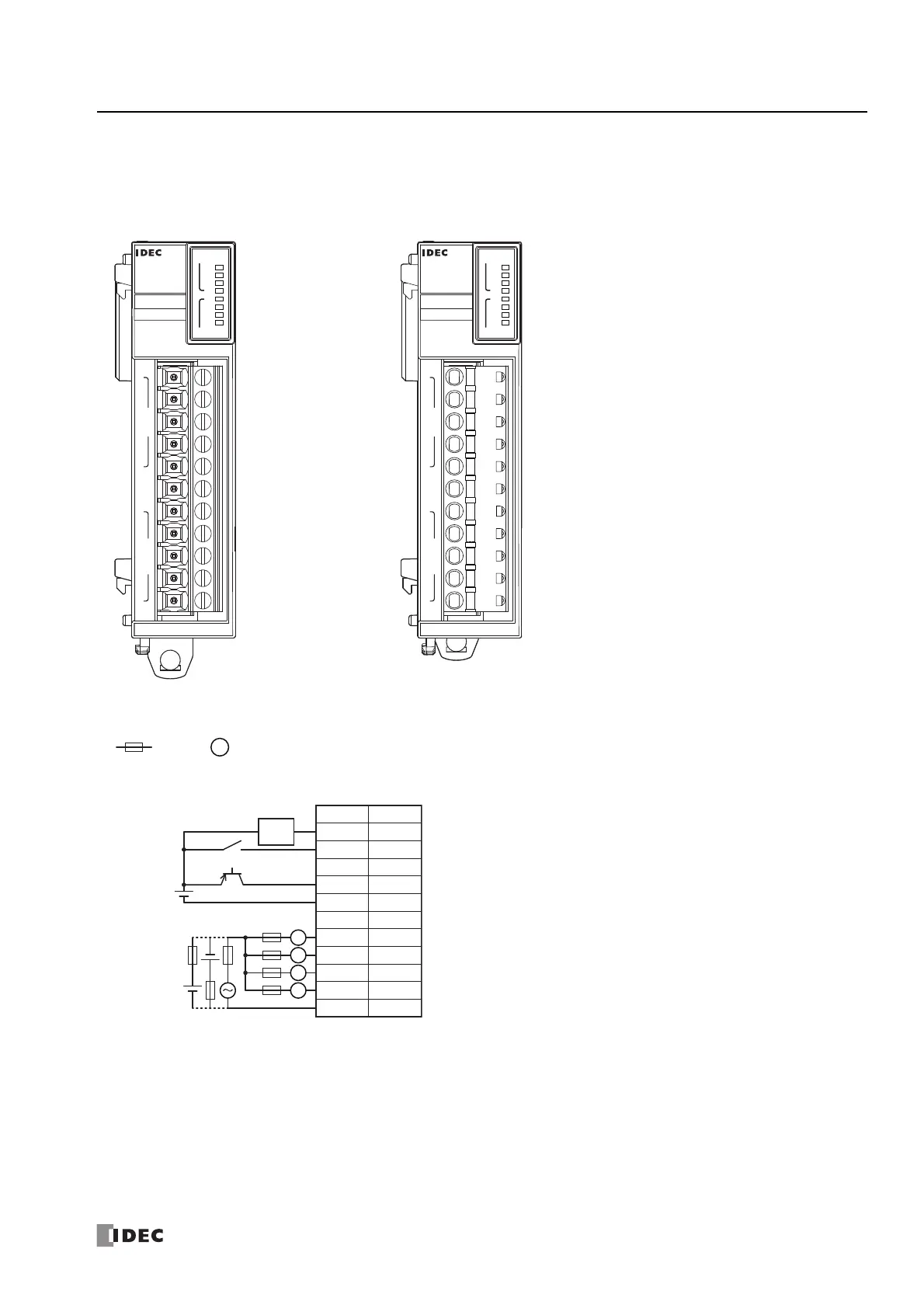

Terminal Arrangement and Wiring Examples
■ FC6A-M08BR1, FC6A-M08BR4
Each of the terminals for COM0 and COM1 are independent.
For wiring precautions, see "Input/Output Wiring" on page 3-18.
DC Sink Input Wiring Example
*1 24V DC for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
Screw fastened type: FC6A-M08BR1 Push-in type: FC6A-M08BR4
Applicable connector: FC6A-PMTB11PN02 Applicable connector: FC6A-PMSB11PN02
DC.IN
0
0
1
2
3
1
2
3
Ry.OUT
FC6A-M08BR1
COM1 3 2 1 0 NC COM0 3 2
Ry OUT DC IN
10
DC.IN
0
0
1
2
3
1
2
3
Ry.OUT
FC6A-M08BR4
COM1 3 2 1 0 NC COM0 3 2
Ry OUT DC IN
10
: Fuse : Load
L
1
0 I0
I1
I2
I3
COM0
NC
Q0
Q1
Q2
2
3
COM0
NC
0
1
2
3
Q3
COM1
COM1
Terminal No. I/O
-
+
-
+
L
L
L
L
+ -
-
+
PNP
2-wire
Sensor
12/24V DC
*1
