FC6A S
ERIES
MICROS
MART
U
SER
’
S
M
ANUAL
FC9Y-B1722 2-165
2: P
RODUCT
S
PECIFICATIONS

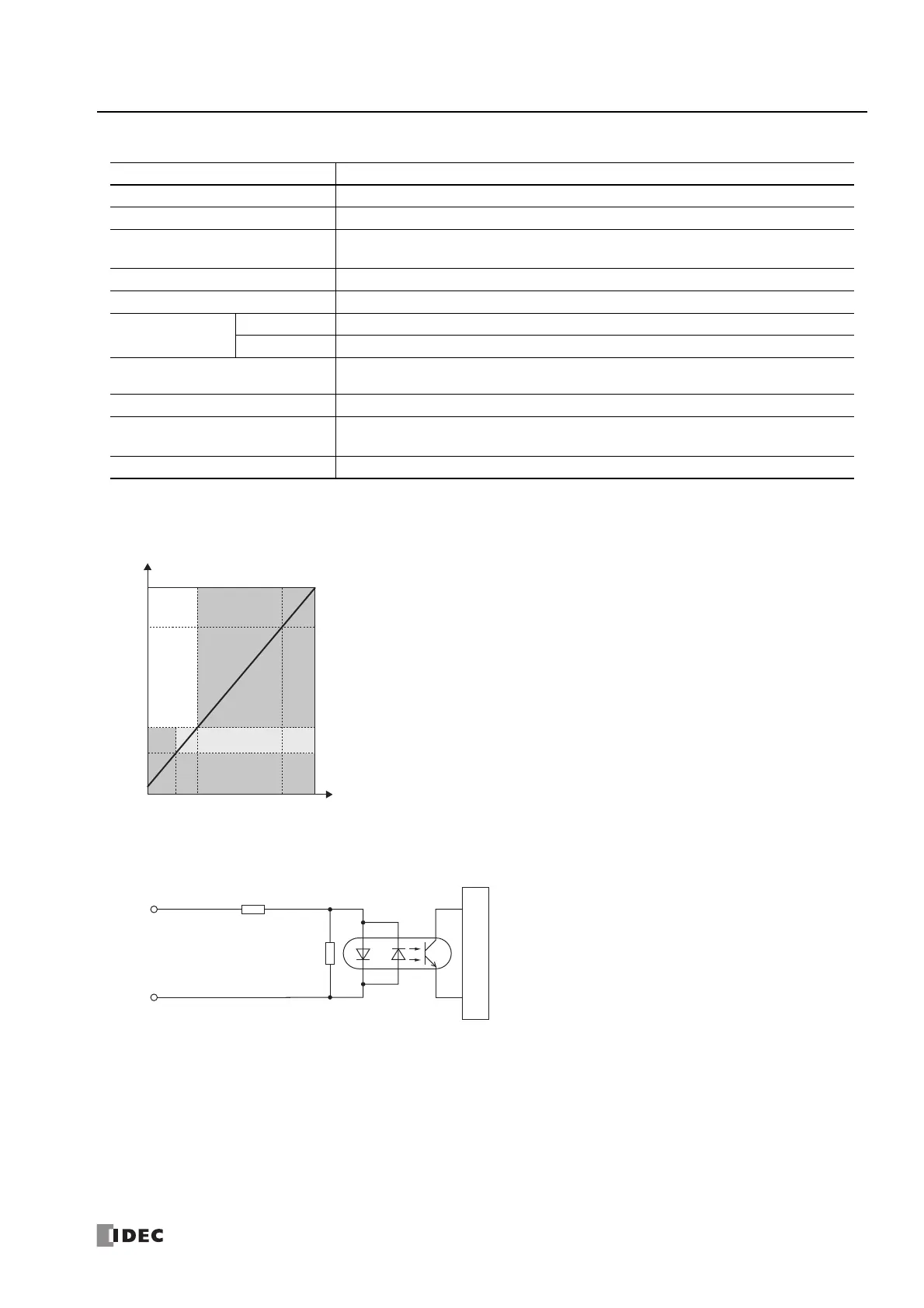

Digital Input Specifications
Input Operating Range
The operating range of Type 1 (IEC 61131-2) DC input modules is as follows.
Input Internal Circuit
Type No. FC6A-PN4
Rated Input Voltage 12/24V DC (shared sink/source)
Operating Load Voltage Range 0 to 28.8V DC
Rated Input Current
5 mA/1 point (when 24V DC)
2.5 mA/1 point (when 12V DC)
Terminal Arrangement See "Wiring Arrangement and Wiring Examples" on page 2-167.
Input Impedance 4.4 kΩ
Input Delay Time
(24V DC)
Turn ON Time 0.5 ms
Turn OFF Time 0.5 ms
External Load for I/O
Interconnection
Not needed
Signal Determination Method Static
Effect of Improper Input Connection
Even if wiring for sink or source connection is incorrect, no damages are caused.
If any input exceeding the rated value is applied, permanent damage may be caused.
Cable Length 3 m
Transition Area
ON Area
OFF Area
1.7 mA
6.4 mA
Input Current (mA)
5 V
8.5 V
24 V
Input Voltage (V DC)
28.8 V
0.9 mA
5.3 mA
4.3 kΩ
Input
COM
Internal Circuit
To Next Page
