FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-179
2: P RODUCT S PECIFICATIONS

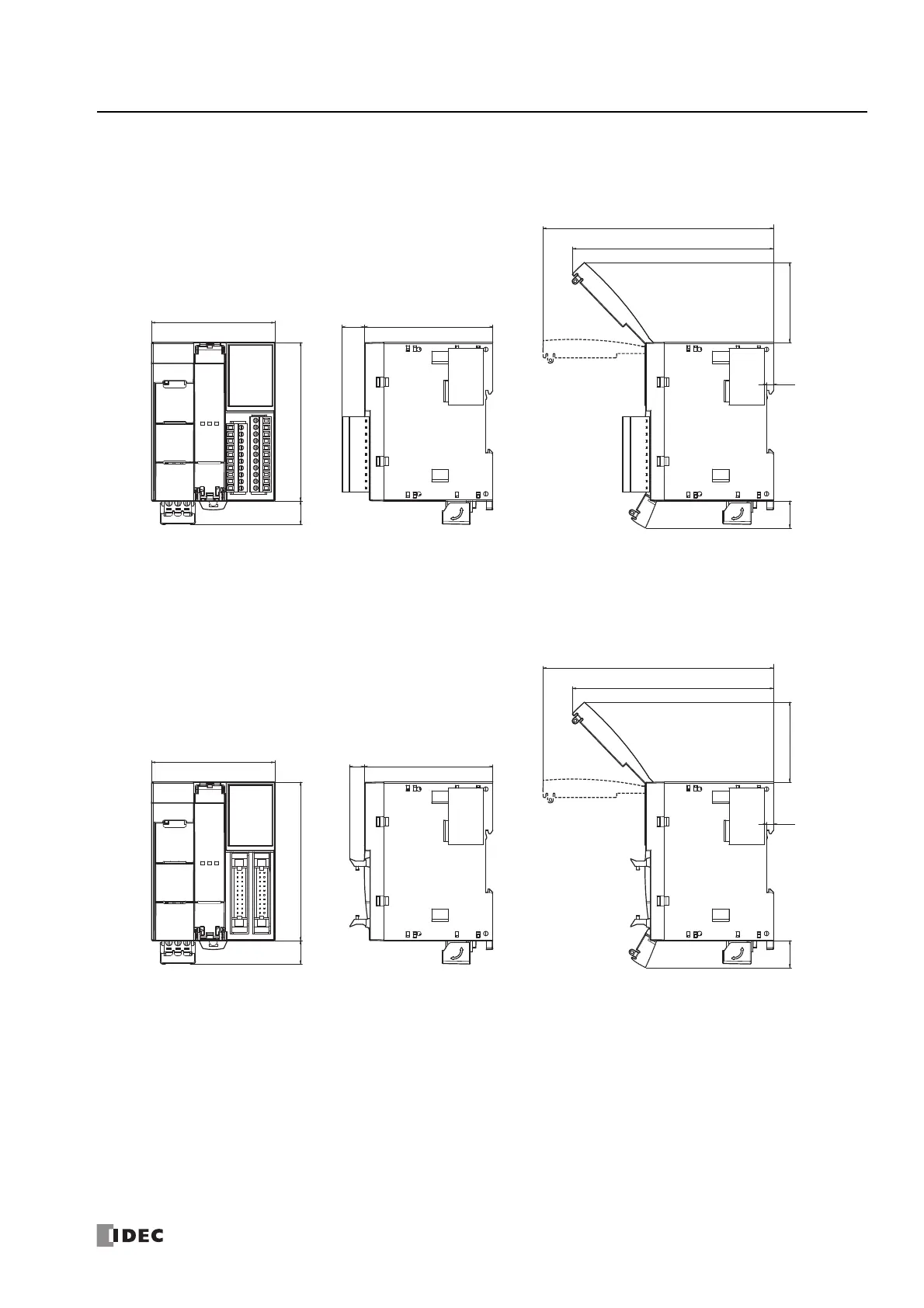

Plus CPU module
*1 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].
*1 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].
Plus 16-I/O type: Screw fastened type: FC6A-D16R1CEE, FC6A-D16K1CEE, FC6A-D16P1CEE
Push-in type: FC6A-D16R4CEE, FC6A-D16K4CEE, FC6A-D16P4CEE
Plus 32-I/O type: Screw fastened type: FC6A-D32K3CEE, FC6A-D32P3CEE
Push-in type: FC6A-D32K4CEE, FC6A-D32P4CEE
70.0
90.0
13.3
73.012.6
4.0
114.3
45.4
130.9
15.4
[12.4]
*1
[12.7]
*1
All dimensions in mm.
70.0
90.0
13.3
73.08.2
4.0
114.3
45.4
130.9
15.4
[12.4]
*1
All dimensions in mm.
