1: G ENERAL I NFORMATION
1-10 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

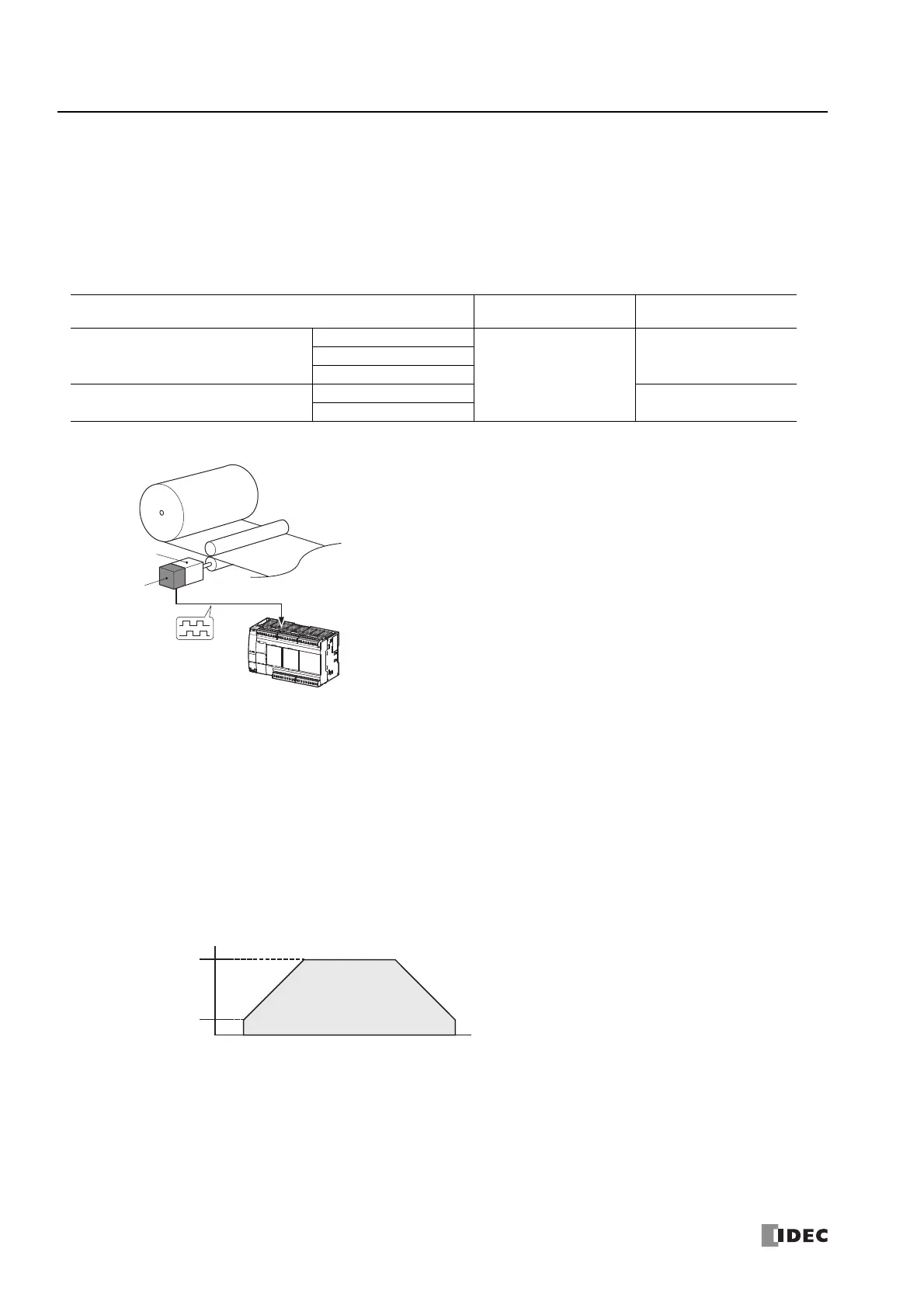

High-speed I/O Functions
High-speed Counter
This function counts high-speed pulse inputs that cannot be measured in normal user program processing.
Use this function for applications such as positioning control with a rotary encoder or motor control. The FC6A Series MICROSmart
can use single-phase high-speed counters and two-phase high-speed counters. A maximum of six single-phase high-speed
counters and a maximum of two two-phase high-speed counters (three maximum for Plus CPU module only) can be used
simultaneously.
Example: Controlling a motor by counting two-phase pulse input with a high-speed counter
Positioning Control
The FC6A Series MICROSmart can perform positioning control with pulse outputs. The FC6A Series MICROSmart features the PULS
instructions that can generate pulse outputs with configured frequency at the fixed pulse width ratio, JOG instructions, pulse-width
modulation (PWM) instructions that can generate pulse outputs with configured pulse width ratio at a fixed frequency, RAMP
instructions for trapezoidal control, ZRN instructions for zero return operation, and ARAMP instructions that can generate pulse
outputs according to a table in which the changes of the frequency are configured.
The FC6A Series MICROSmart also manages coordinates internally and can increment or decrement coordinates according to the
number of pulses that were output and the direction.
After confirming the origin using the ZRN instruction, the target position can also be specified by absolute position.
Example: Pulse output by the RAMP instruction
Frequency Measurement
This function measures the frequency of pulses input to an input terminal. The frequencies of a maximum of six inputs can be
measured.
CPU Module
Single-phase High-
speed Counter
Two-phase High-speed
Counter
All-in-One CPU module/
CAN J1939 All-in-One CPU module
16-I/O type
6 maximum
2 maximum24-I/O type
40-I/O type
Plus CPU module
Plus 16-I/O type
3 maximum
Plus 32-I/O type
Pulse Motor
High-speed Pulse Input
Two-phase Pulses
Rotary
Encoder
FC6A Series MICROSmart
Steady pulse frequency
Initial pulse frequency
