FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 3-9
3: I NSTALLATION AND W IRING

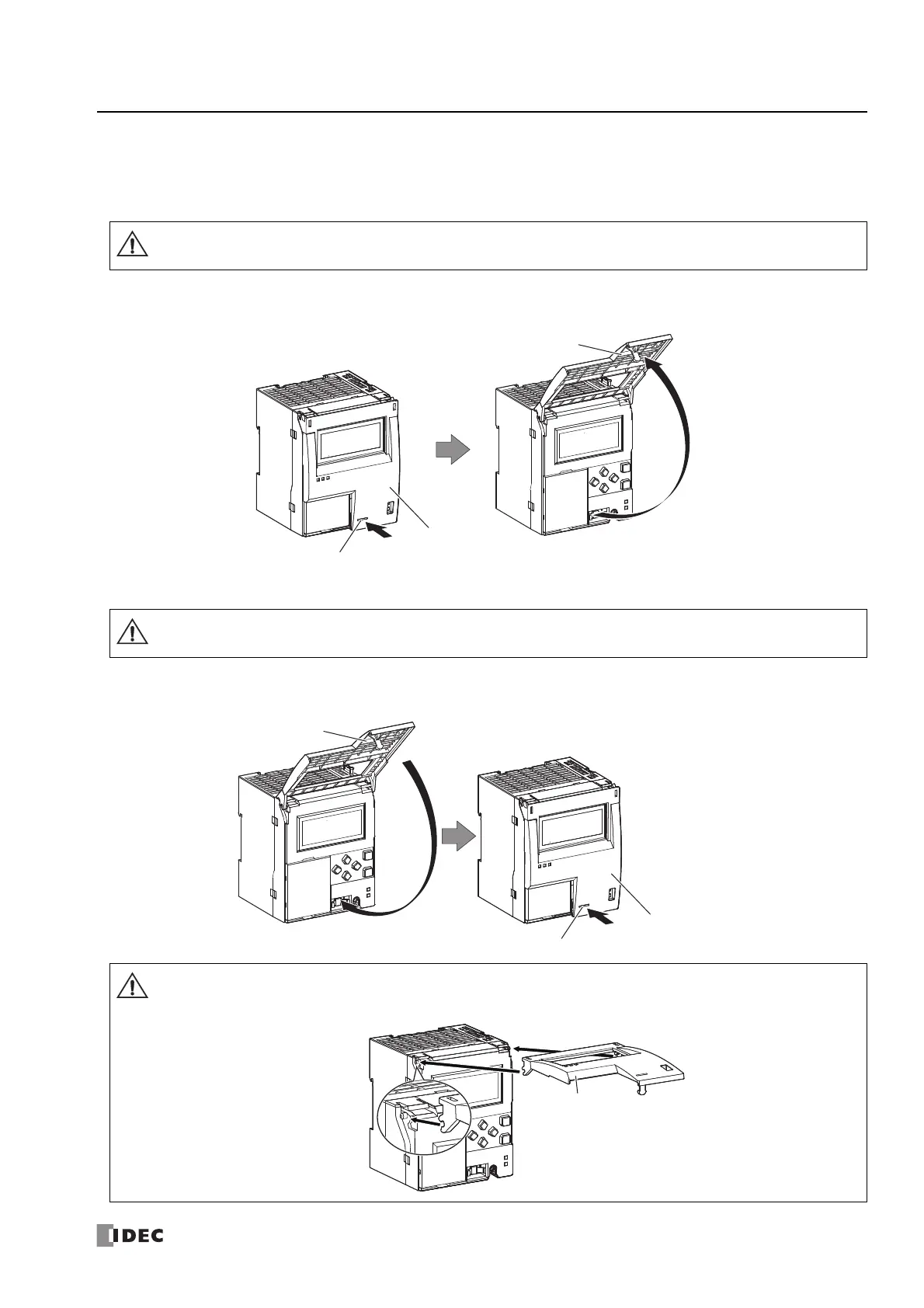

Opening and Closing the Front Cover of the HMI Module
The following procedure describes how to open and close the front cover of the HMI module.
Opening the Front Cover
1. Push the access symbol until it clicks to unlock the front cover.
2. The front cover will open.
Closing the Front Cover
1. Close the front cover.
2. Push the access symbol until it clicks to lock the front cover.
Always unlock the front cover before opening it with the following procedure. Otherwise there is a risk of damage to the
HMI module.
Caution
Front Cover
Front Cover
Access Symbol
Always lock the front cover with the following procedure.
Caution
Front Cover
Front Cover
Access Symbol
Applying too much force to the front cover may cause it to fall off.
If this happens, make the front cover vertical with the HMI module as shown in the following figure, and then slowly push
on the part indicated by the arrow.
Caution
Front Cover
