3: I NSTALLATION AND W IRING
3-14 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

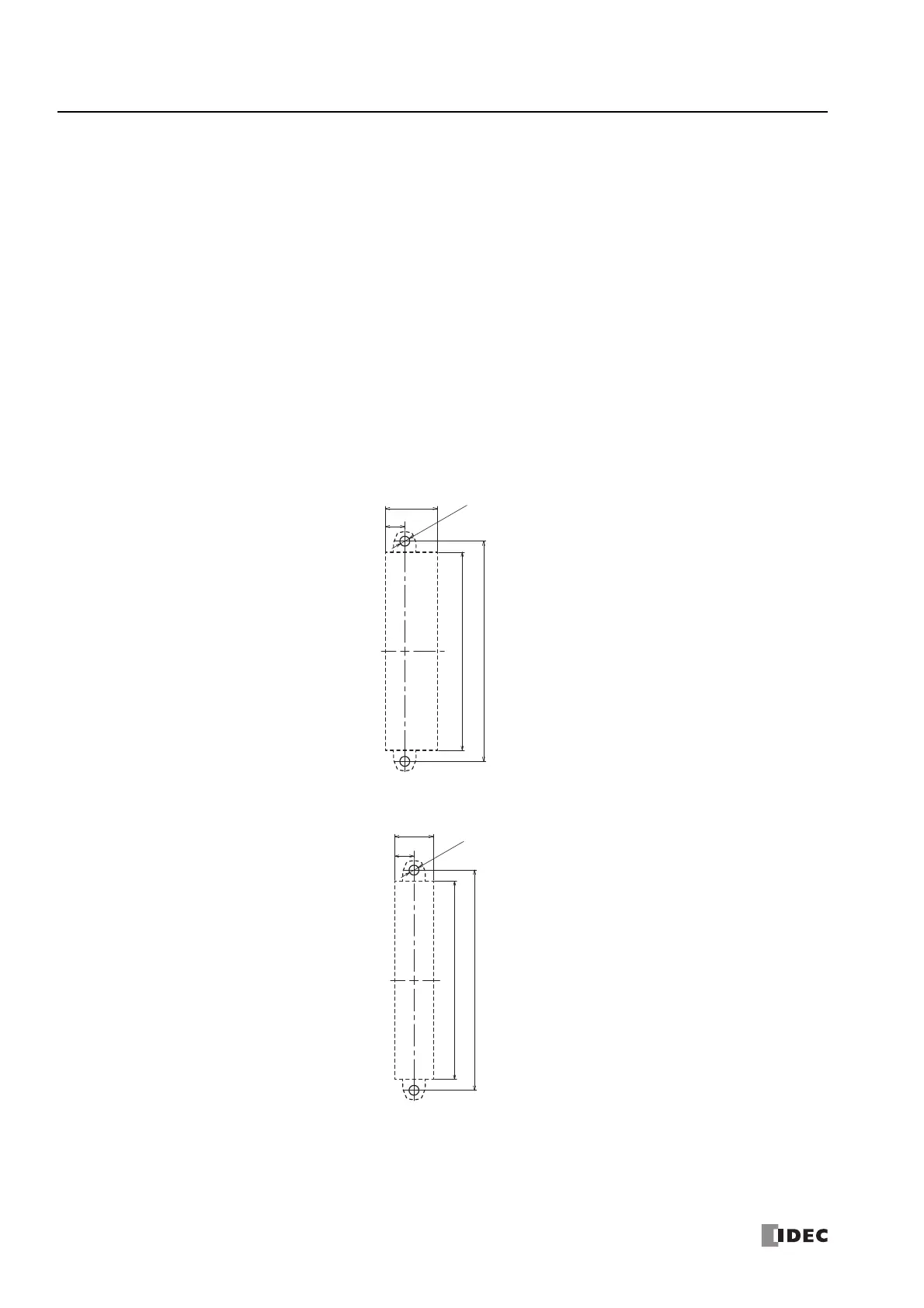

■ Expansion Modules, Expansion Interface Modules, HMI Module, and Cartridge Base Module
Digital input modules: Screw fastened type: FC6A-N08B1, FC6A-N16B1, FC6A-N08A11
Push-in type: FC6A-N08B4, FC6A-N16B4, FC6A-N08A14
Digital output modules: Screw fastened type: FC6A-R081, FC6A-R161, FC6A-T08K1, FC6A-T16K1,
FC6A-T08P1, FC6A-T16P1
Push-in type: FC6A-R084, FC6A-R164, FC6A-T08K4, FC6A-T16K4,
FC6A-T08P4, FC6A-T16P4
Digital mixed I/O modules: Screw fastened type: FC6A-M08BR1
Push-in type: FC6A-M08BR4
Analog I/O modules: Screw fastened type: FC6A-J2C1, FC6A-J4A1, FC6A-J8A1, FC6A-K2A1,
FC6A-K4A1, FC6A-J4CN1, FC6A-J4CH1Y, FC6A-J8CU1,
FC6A-K2A1, FC6A-K4A1, FC6A-L03CN1, FC6A-L06A1
Push-in type: FC6A-J2C4, FC6A-J4A4, FC6A-J8A4, FC6A-K2A4,
FC6A-K4A4, FC6A-J4CN4, FC6A-J4CH4Y, FC6A-J8CU4,
FC6A-K2A4, FC6A-K4A4, FC6A-L03CN4, FC6A-L06A4
Communication modules: Screw fastened type: FC6A-SIF52
Push-in type: FC6A-SIF524
Expansion interface remote master module: FC6A-EXM1M
Digital input modules: FC6A-N16B3
Digital output modules: FC6A-T16K3, FC6A-T16P3
90.0
100.0
±0.2
23.6
8.8
±0.2
2-Ø4.5
All dimensions in mm.
90.0
100.0
±0.2
17.6
8.8
±0.2
2-Ø4.5
All dimensions in mm.
