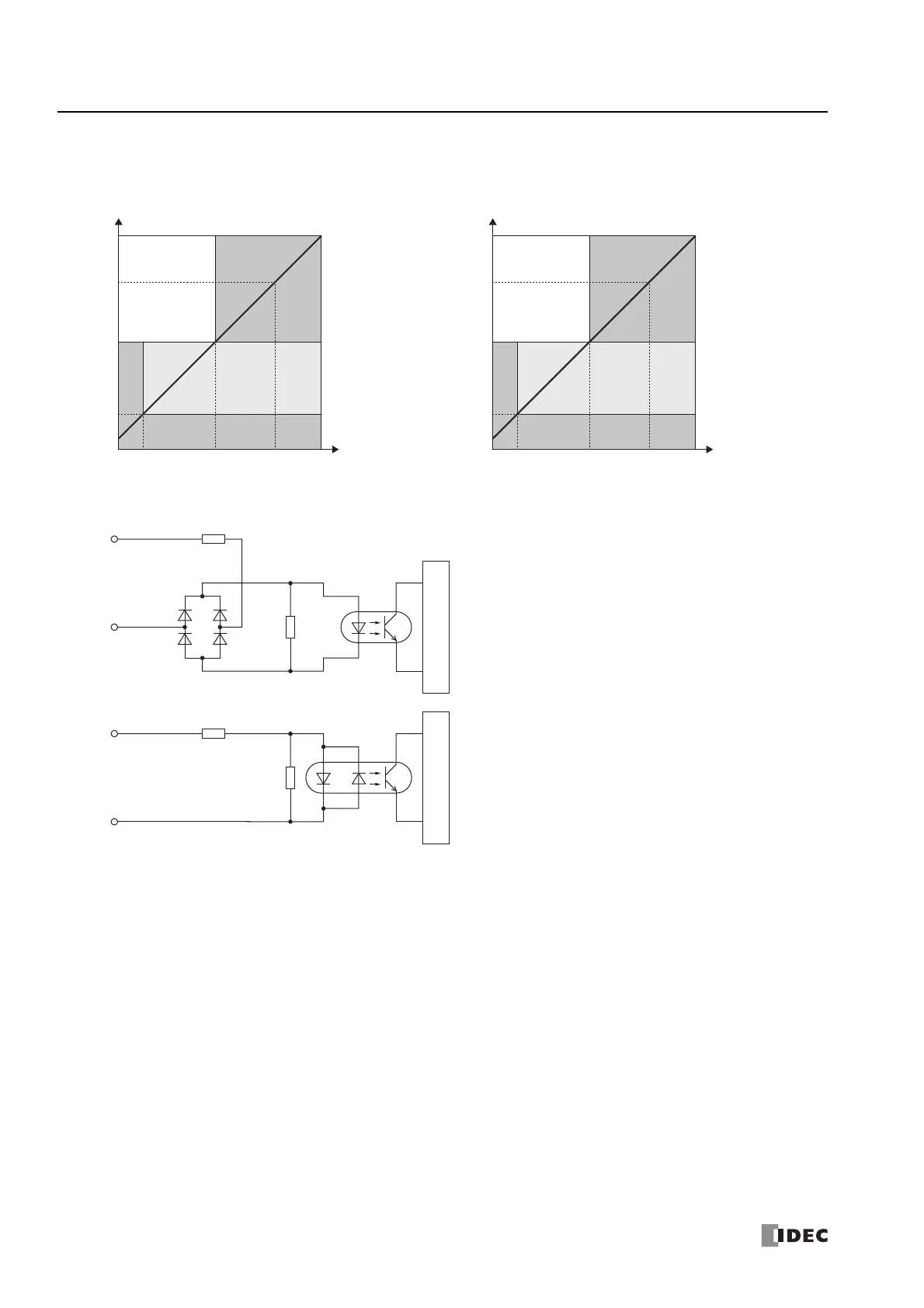

Operating Ranges
The operating range of Type 1 (IEC 61131-2) DC input modules is as follows.
Input Internal Circuit
Transition
Area
ON Area
I0, I1, I6, I7
OFF Area
2.6 mA
6 mA
Input Current (mA)
5 V
15 V
24 V
Input Voltage (V DC)
28.8 V
0.6 mA 5 mA
Transition
Area
ON Area
I2 to I5, I10 to I27
OFF Area
4.2 mA
8.4 mA
Input Current (mA)
5 V
15 V
24 V
Input Voltage (V DC)
28.8 V
1.3 mA 7 mA
I0, I1, I6, I7
Input
COM
Internal Circuit
4.7 kΩ
I2 to I5, I10 to I27
3.3 KΩ
Input
COM
Internal Circuit
