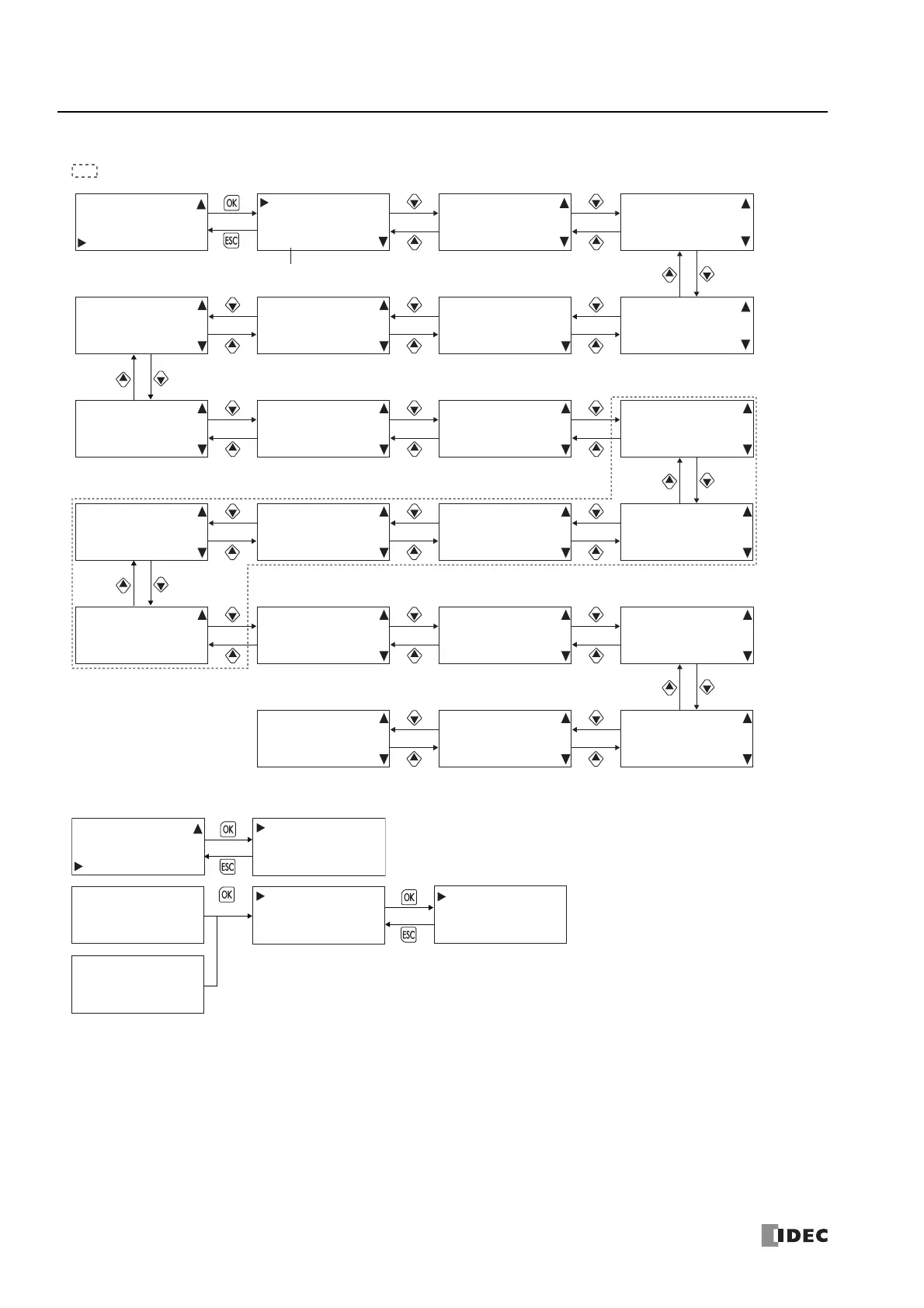

Monitoring the FC6A Series MICROSmart Status
is displayed only when the Plus CPU module is connected.
Checking/clearing error information
Stop
External Memory
Device Monitor
Status Monitor
System Version:
1.00
Run/Stop Status:
Running
Scan Time:
Current: 2 ms
Maximum: 4 ms
Minimum: 2 ms
CPU Network Settings 7
Setting: Fixed
IP Address:
192.168. 2. 6
CPU Network Settings 9
Default Gateway:
192.168. 2. 3
Protection Status:
Read Program:
Prohibited
Protection Status:
Write Program:
Password Protected
CPU Network Settings 1
Setting: Fixed
IP Address:
192.168. 1. 6
CPU Network Settings 3
Default Gateway:
192.168. 1. 3
CPU Network Settings 2
Subnet Mask:
255.255.254. 0
CPU Network Settings 10
Preferred DNS Server:
192.168. 2.200
HMI Network Settings 4
Preferred DNS Server:
192.168. 11.200
HMI Network Settings 5
Alternate DNS Server:
192.168. 1.201
HMI Network Settings 1
Setting: Fixed
IP Address
192.168. 11. 6
HMI Network Settings 2
Subnet Mask
255.255.254. 0
CPU Network Settings 8
Subnet Mask
255.255.254. 0
HMI Network Settings 3
Default Gateway:
192.168. 11. 3
CPU Network Settings 4
Preferred DNS Server:
192.168. 1.200
CPU Network Settings 5
Alternate DNS Server:
192.168. 1.201
CPU Network Settings 11
Alternate DNS Server:
192.168. 2.201
CPU Network Settings 6
MAC Address:
FF-FF-FF-FF-FF-FF
HMI Network Settings 6
MAC Address:
FF-FF-FF-FF-FF-FF
CPU Network Settings 12
MAC Address:
FF-FF-FF-FF-FF-FF
When the FC6A Series MICROSmart is stopped: Stopped
General Error: 3
Execution Error: 0
Clear Error
Device Monitor
Program Monitor
Status Monitor
Error Status
Error!
PLC is stopped.
Press OK button for
more details.
Error!
PLC is running.
Press OK button for
more details.
General Error: 3
Execution Error: 0
Clear Error
General Error: 3
Power failure
Watchdog Timer
(Press and hold)
