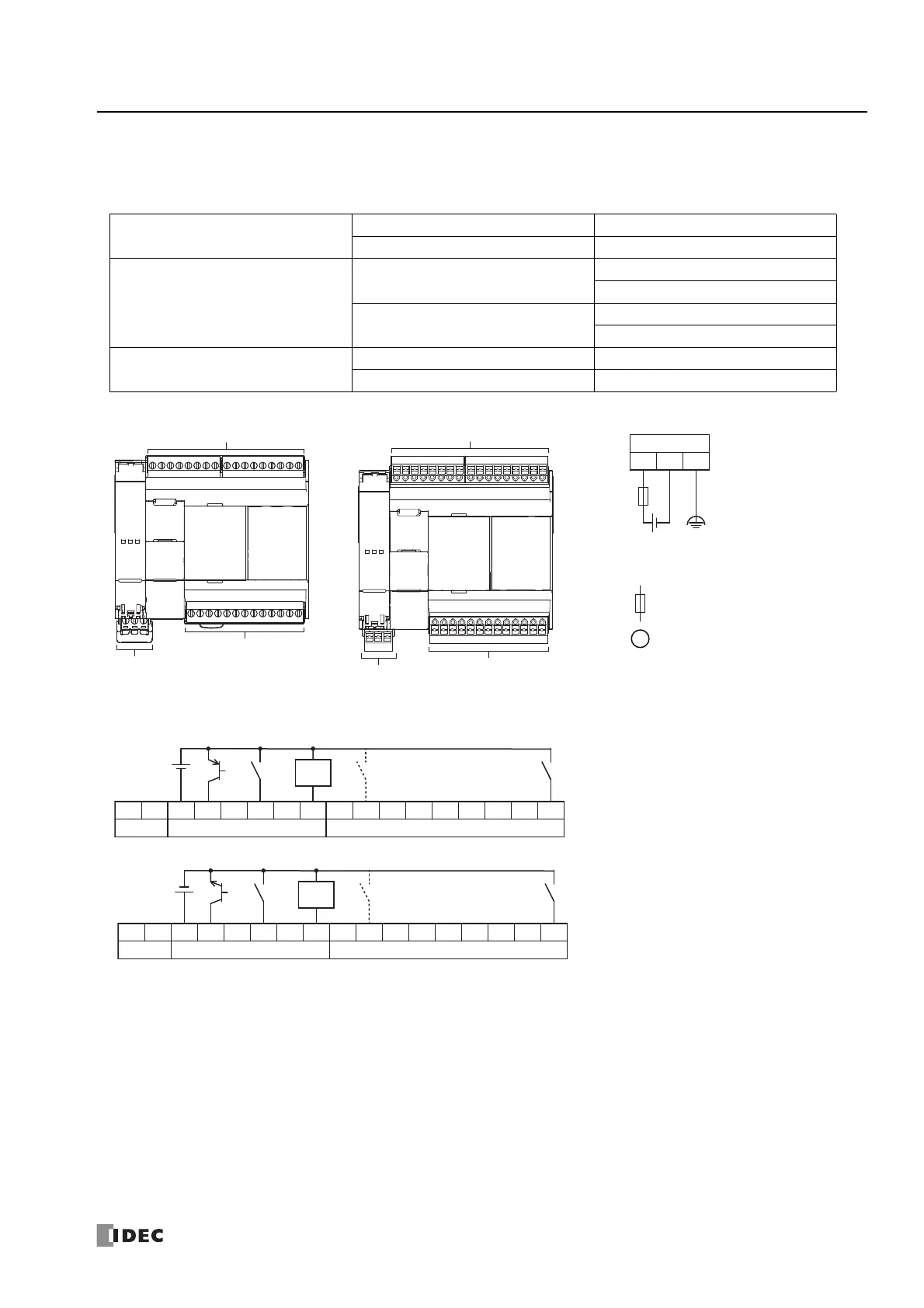

FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-39
2: P RODUCT S PECIFICATIONS
Applicable connector
(2) Input terminals
DC Sink Input Wiring
DC Source Input Wiring
24-I/O Type: Screw fastened type: FC6A-C24R1CE, FC6A-C24K1CE, FC6A-C24P1CE
Push-in type: FC6A-C24R4CE, FC6A-C24K4CE, FC6A-C24P4CE
(1) Power supply terminals
Screw fastened type FC6A-PMTD03PN02
Push-in type (24 VDC) FC6A-PMSDC03PN02
(2) Sensor power terminals, input terminals
Screw fastened type
FC6A-PMTA08PN02
FC6A-PMTA09PN02
Push-in type
FC6A-PMSA08PN02
FC6A-PMSA09PN02
(3) Output terminals
Screw fastened type FC6A-PMTA13PN02
Push-in type FC6A-PMSA13PN02
Screw fastened type Push-in type (1) Power supply terminals
(2)
(3)
(1)
(2)
(3)
(1)
: Fuse
: Load
L
+24V - FE
24V DC Power Input
- +
External Power
24V DC
NC. NC.
–
COM I0 I1 I2 I3 I4 I5 I6 I7 I10 I11 I12 I13 I14 I15
24V DC Input 24V DC Input
-
+
-
+
External Power
24V DC
2-wire
Sensor
NC.
NC. COM
I0 I1 I2 I3 I4 I5
I6
I7 I10 I11 I12 I13 I14 I15
– 24V DC Input 24V DC Input
+
-
+
-
External Power
24V DC
2-wire
Sensor
