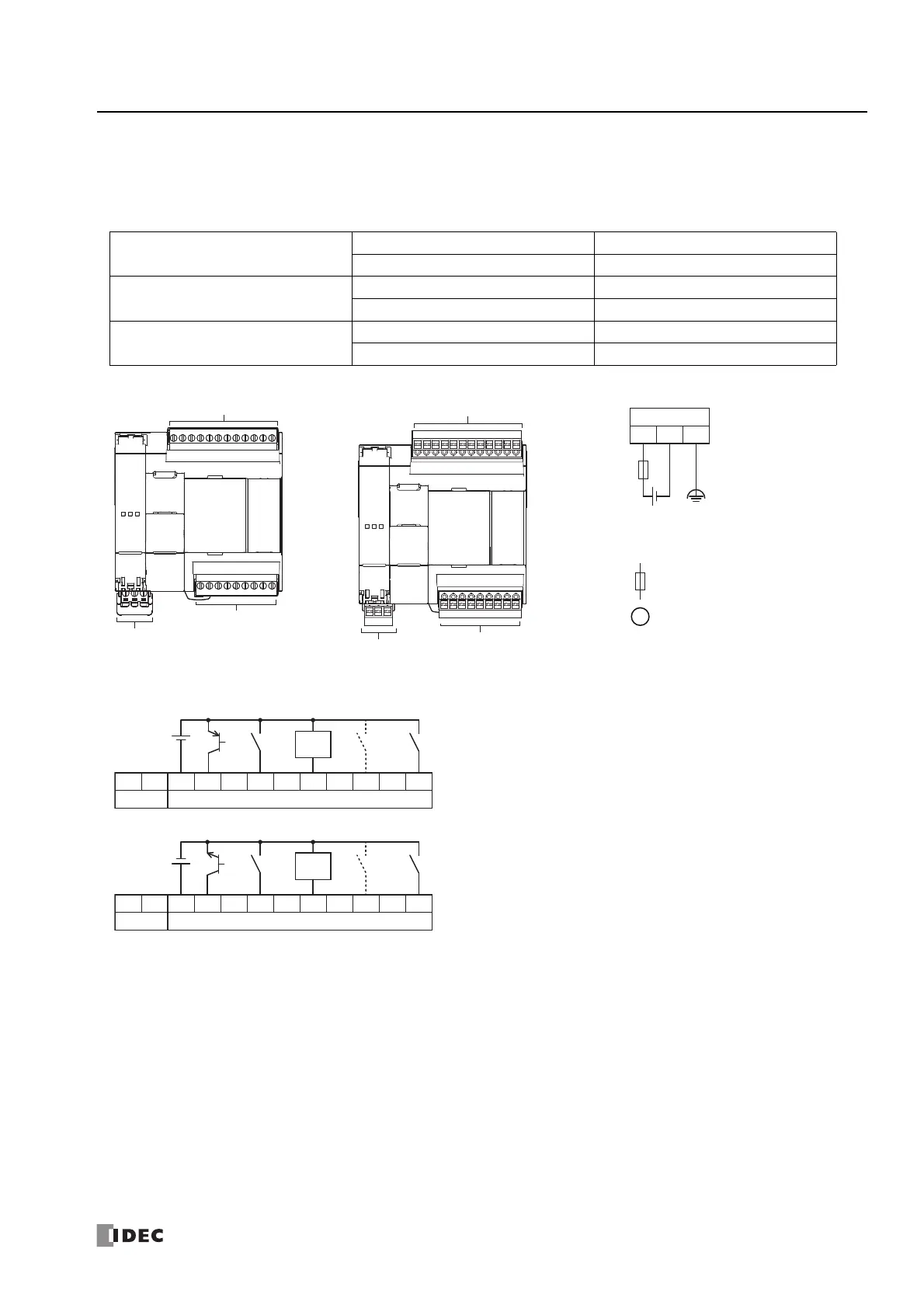

FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-43
2: P RODUCT S PECIFICATIONS
■ 12V DC Power Type
Applicable connector
(2) Input terminals
DC Sink Input
DC Source Input
16-I/O type: Screw fastened type: FC6A-C16R1DE, FC6A-C16K1DE, FC6A-C16P1DE
Push-in type: FC6A-C16R4DE, FC6A-C16K4DE, FC6A-C16P4DE
(1) Power supply terminals
Screw fastened type FC6A-PMTD03PN02
Push-in type (12 VDC) FC6A-PMSDD03PN02
(2) Sensor power terminals, input terminals
Screw fastened type FC6A-PMTA12PN02
Push-in type FC6A-PMSA12PN02
(3) Output terminals
Screw fastened type FC6A-PMTA09PN02
Push-in type FC6A-PMSA09PN02
Screw fastened type Push-in type (1) Power supply terminals
(2)
(3)
(1)
(2)
(3)
(1)
: Fuse
: Load
L
12V DC Power Input
+12V - FE
- +
External Power
12V DC
NC. NC.
−
COM I0 I1 I2 I3 I4 I5 I6 I7 I10
12V DC Input
-
+
-
+
External Power
12V DC
2-wire
Sensor
NC.
NC.
−
COM
I0 I1 I2 I3 I4 I5
I6
I7 I10
12V DC Input
+
-
+
-
External Power
12V DC
2-wire
Sensor
